Normal Settling Cracks or Structural Issues? How to Tell the Difference

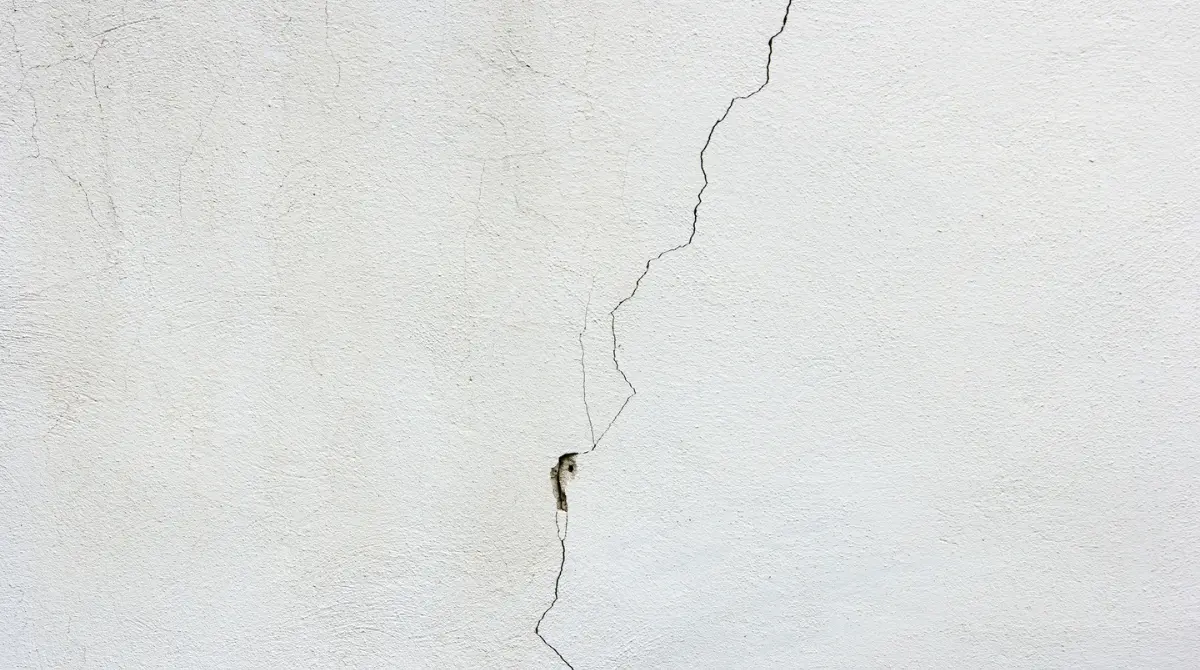

small, normal crack on a wall, typical of minor settling or aging

Normal Settling Cracks: What’s Safe and What’s Not

Causes, Types, and Solutions

Normal settlement cracks are a common occurrence in buildings and typically a natural part of the aging process. While they may seem alarming at first, these cracks are often harmless if properly understood and managed.

Lets explore the causes, characteristics, and implications of normal settlement cracks, provide real-world examples, and offer practical advice for homeowners, builders, and renovators.

Normal Settling Cracks: What’s Expected in Your Home

Signs of Normal Settling Cracks in Your Home

What Are Normal Settlement Cracks?

Normal settlement cracks occur as a building adjusts to environmental conditions, material shrinkage, and foundation settling. They are typically superficial and do not compromise structural integrity. However, distinguishing between harmless cracks and those indicating serious issues is critical.

Think of your home as a living structure—it’s going to stretch and settle over time. The key is to keep an eye on it and treat it with care. When in doubt, a little professional advice goes a long way, and remember: cracks may add character, but safety always comes first!

Characteristics of Normal Settlement Cracks

  • Thin, Hairline Cracks: Usually less than 1/8 inch wide, these cracks are shallow and surface-level.
  • Even Distribution: Found across walls, ceilings, or floors, indicating uniform material adjustment.
  • Stable Over Time: Do not expand or deepen after their initial appearance.

Common Locations

  1. New Construction Homes:
    • Cracks in freshly cured concrete slabs.
    • Hairline fractures in plaster and drywall.
  2. Older Homes:
    • Minor cracks in plaster due to decades of material shrinkage.
    • Cracks near door or window frames caused by natural wood warping.

Normal Settling Cracks vs. Structural Issues

Understanding the difference between normal settlement cracks and structural issues is essential for effective maintenance and peace of mind.

Normal Settlement Cracks

  • Characteristics:
    • Thin, hairline cracks that are less than 1/8 inch wide.
    • Found in non-load-bearing walls, ceilings, or around door and window frames.
    • Stable over time and do not worsen.
  • Causes:
    • Material shrinkage (e.g., drywall, concrete, plaster).
    • Soil compaction or minor foundation adjustments.
  • Impact:
    • Primarily cosmetic with no structural consequences.

Structural Cracks

  • Characteristics:
    • Cracks wider than 1/4 inch, often jagged or diagonal.
    • Found in load-bearing walls, foundations, or basement floors.
    • May grow in size or appear alongside other issues like uneven floors.
  • Causes:
    • Significant foundation shifts due to poor soil conditions or water intrusion.
    • Overloading or poor design.
  • Impact:
    • Can compromise the building’s integrity and require professional intervention.

How to Tell Them Apart

Here’s a simple checklist to differentiate between the two:

  • Width:
    • Hairline (normal).
    • Wider than 1/4 inch (structural).
  • Location:
    • Non-load-bearing areas like ceilings or drywall (normal).
    • Load-bearing walls, foundation, or basement (structural).
  • Additional Symptoms:
    • No other issues (normal).
    • Accompanied by uneven floors, sticking doors, or water seepage (structural).

Pro Tip: If in doubt, consult a licensed structural engineer. A small inspection fee is worth the peace of mind.

Real-World Examples

Example 1: Houston, Texas – New Construction Challenges

In Houston, a homeowner moved into a newly built home in the humid summer of 2022. Within six months, hairline cracks appeared along the ceiling and around door frames. The problem stemmed from Houston’s clay-rich soil, which expands and contracts with moisture.

Key Issues:

  • Small cracks forming due to the soil's shrink-swell behavior.
  • High humidity exacerbating material adjustments.

Solution:

  • Cracks were patched with joint compound and painted over for $150.
  • A recommendation was made to install gutters to manage moisture levels around the foundation.

Pro Tip: If you live in a high-humidity area, invest in good drainage and monitor your foundation closely.

Example 2: Denver, Colorado – Dry Climate Adjustments

A Denver homeowner noticed minor cracks around windows and ceilings during the first winter in their newly built home. The city’s dry climate caused materials like wood and drywall to contract.

Key Issues:

  • Dry air causing contraction of framing materials.
  • Cracks forming near corners of walls and ceilings.

Solution:

  • Flexible caulking was used to fill the gaps.
  • The homeowner added a humidifier to their HVAC system to maintain indoor moisture levels.

Pro Tip: For homes in arid regions, maintaining indoor humidity between 30-50% can minimize material contraction.

Example 3: Charleston, South Carolina – Coastal Humidity

In Charleston, a homeowner discovered small cracks in the plaster walls of their historic home. Coastal humidity, combined with aging materials, had caused hairline fractures.

Key Issues:

  • Humidity causing plaster to absorb moisture and expand.
  • Gradual material wear due to the home’s age.

Solution:

  • Lime-based plaster was used for repairs as it flexes with humidity changes.
  • Regular dehumidifier use was implemented to stabilize indoor conditions.

Pro Tip: Coastal homeowners should choose breathable materials like lime plaster and focus on ventilation.

Example 4: Phoenix, Arizona – Extreme Heat Effects

A family in Phoenix faced settlement cracks in their home’s concrete slab foundation due to intense heat and arid conditions.

Key Issues:

  • High temperatures causing concrete expansion and contraction.
  • Cracks forming during rare heavy rains due to water infiltration.

Solution:

  • Cracks were filled with epoxy to seal against moisture.
  • A reflective roof coating was added to reduce heat absorption and minimize material stress.

Pro Tip: In hot climates, maintaining even ground moisture around the foundation can prevent excessive shifting.

Example 5: Chicago, Illinois – Freeze-Thaw Cycles

In Chicago, a family noticed stair-step cracks forming in their brick facade during winter. The frequent freeze-thaw cycles caused expansion and contraction in the mortar.

Key Issues:

  • Mortar joints expanding in freezing conditions and contracting when thawed.
  • Cracks allowing water infiltration, worsening the issue.

Solution:

  • Damaged mortar was replaced with a weather-resistant, flexible type.
  • Sealants were applied to prevent water penetration.

Pro Tip: Inspect brickwork annually in areas with harsh winters, and address small cracks early to avoid larger issues.

Causes of Normal Settlement Cracks

1. Material Shrinkage

  • Concrete: Curing concrete loses water, leading to minor shrinkage cracks.
  • Plaster and Drywall: Adjustments to humidity levels cause slight movements in these materials.

2. Soil Compaction

  • Natural Soil Settling: The weight of the structure compresses the soil beneath, leading to slight shifts.
  • Uneven Compaction: Poorly compacted soil during construction can result in minor adjustments over time.

3. Environmental Factors

  • Temperature Fluctuations: Seasonal changes cause expansion and contraction of building materials.
  • Humidity Variations: High humidity in regions like the Gulf Coast or low humidity in desert areas can cause materials to expand or contract, contributing to cracks.

Maintenance Tips

Preventative Measures

  1. Control Moisture Levels:
    • Use a dehumidifier in high-humidity seasons.
    • Ensure proper drainage around the foundation.
  2. Monitor Cracks:
    • Mark the ends of cracks with a pencil to track changes over time.
    • Inspect seasonally for any signs of progression.

Repairing Normal Settlement Cracks

  1. Drywall Cracks:
    • Use joint tape and compound to fill cracks, then sand and repaint.
  2. Plaster Cracks:
    • Apply a flexible plaster filler and touch up with matching paint.
  3. Concrete Slabs:
    • Use epoxy or polyurethane sealants to prevent water intrusion.

In Focus: Plaster Cracks in Older Homes

Older homes with plaster walls are especially prone to settlement cracks. While these are typically cosmetic, here’s how to handle them effectively:

  • Inspect Regularly: Small hairline cracks are normal but monitor for widening.
  • Use Flexible Filler: Products designed for plaster repair prevent future cracking.
  • Preserve the Character: When restoring plaster, match the texture and composition to maintain historical integrity.

In one case, a homeowner in Savannah, Georgia, restored a 19th-century home’s plaster walls. Using lime-based plaster, they avoided further cracking despite the humid coastal climate. The result maintained both the aesthetic and structural integrity of the home.

The Necessary Role of Settlement Cracks

Settlement cracks, while unsightly, play a vital role in allowing a structure to adjust to its environment. They relieve stress that would otherwise accumulate in the building materials, preventing more significant damage. Addressing these cracks with appropriate repairs ensures they remain a harmless part of the home’s lifecycle.

Keep Learning: Recommended Books

1. "Home Maintenance For Dummies" by James Carey and Morris Carey

  • What It’s About: A comprehensive guide to maintaining every part of your home.
  • Why You Should Buy It: Packed with practical advice, this book simplifies repairs for homeowners of all experience levels.

2. "The Visual Handbook of Building and Remodeling" by Charlie Wing

  • What It’s About: A visual reference covering construction basics, materials, and troubleshooting tips.
  • Why You Should Buy It: Detailed illustrations and step-by-step guides make it an invaluable resource for DIYers and professionals.

3. "Inspecting a House" by Rex Cauldwell

  • What It’s About: A guide to identifying and understanding common issues in homes.
  • Why You Should Buy It: Ideal for spotting potential problems before they escalate, including settlement cracks.

Affiliate Notice

We’re passionate about sharing knowledge to help you maintain your home. By purchasing books through our links, you support our mission at no extra cost to you. These resources are handpicked for their value and reliability.

Final Thoughts

Normal settlement cracks are a necessary part of a building’s adjustment to its environment. By understanding their characteristics and causes, you can manage these cracks effectively without unnecessary concern. Regular inspections, preventative maintenance, and timely repairs ensure they remain cosmetic and do not impact the safety or value of your home. Whether you’re a homeowner or a professional, recognizing the difference between normal and concerning cracks is key to preserving the integrity and longevity of any structure.

FAQs About Normal Settlement Cracks

1. Are normal settlement cracks dangerous?

No, they are typically cosmetic and do not affect the building’s structural integrity.

2. How can I tell if a crack is serious?

Serious cracks are wider than 1/4 inch, deep, or associated with uneven floors or water damage. Consult a professional if unsure.

3. Should I repair normal settlement cracks?

Yes, repairing them improves aesthetics and prevents minor cracks from worsening over time.

4. How long do settlement cracks appear in new homes?

Most cracks appear within the first 1-2 years as the materials settle and adjust.
