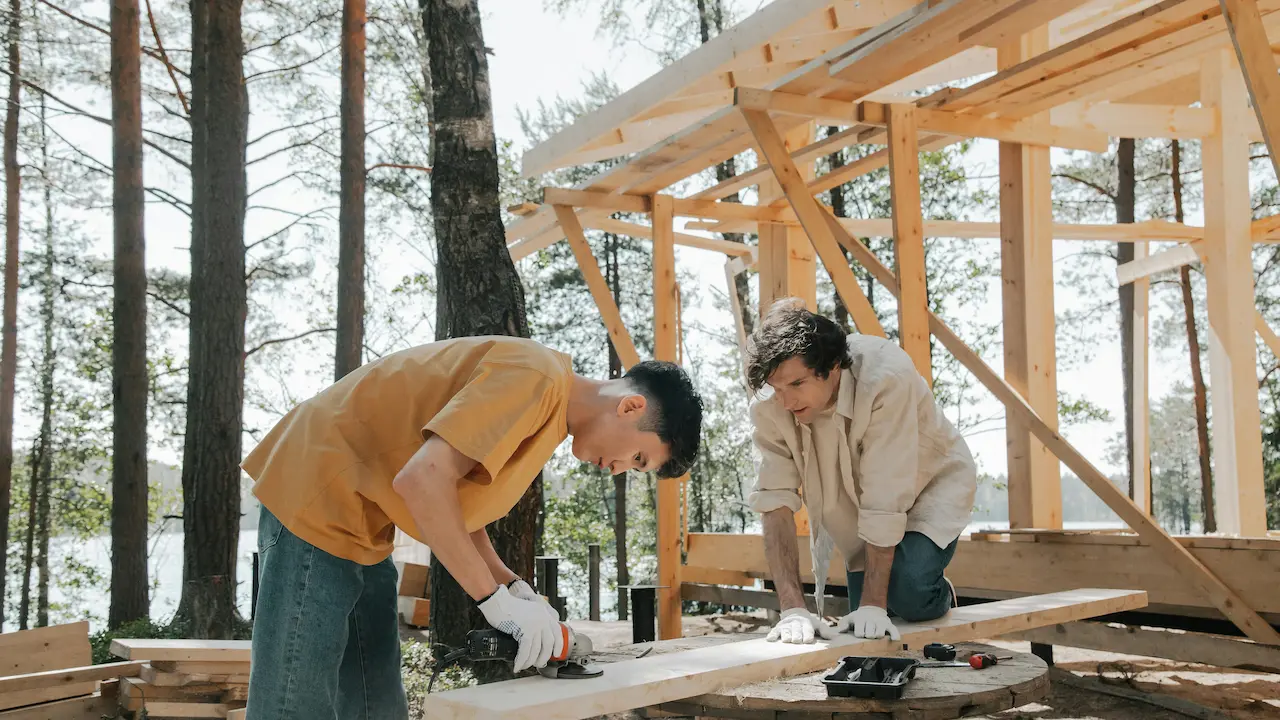

Workers assembling a post-frame structure, showing the critical phase of construction where the frame is being built.
Post-Frame Foundations: Everything You Need to Know
Types, Benefits, and Applications
If you’ve ever driven past a “pole barn” on a farm or visited a friend who built a rustic-but-modern “barndominium,” chances are you were looking at a post-frame structure. At its core, post-frame construction relies on vertical posts or columns as the main load carriers, rather than the conventional full foundation walls or large slabs that many people think of when they hear the word “foundation.”
But there’s a lot more to it than just burying some wooden posts in the dirt. Modern post-frame buildings can be every bit as robust and long-lasting as typical stick-built or masonry structures—especially if the foundation is done with high-quality components, good design practices, and a firm understanding of soil conditions.
Over the next sections, we’ll explore everything from simple “embedded post” methods to advanced bracket systems and precast columns. We’ll chat about how to pick the best design for your needs, how to handle site prep, and how to ensure you don’t wind up with rotting posts after a few years. We’ll also list some surprising facts, toss in a couple of recommended books, and share resources from recognized organizations in the building industry.
If you’re curious about building a barn, workshop, or even an entire home with a post-frame foundation, read on. You might find that this approach saves you time, money, and headaches compared to more traditional routes.
What Is a Post-Frame Foundation?

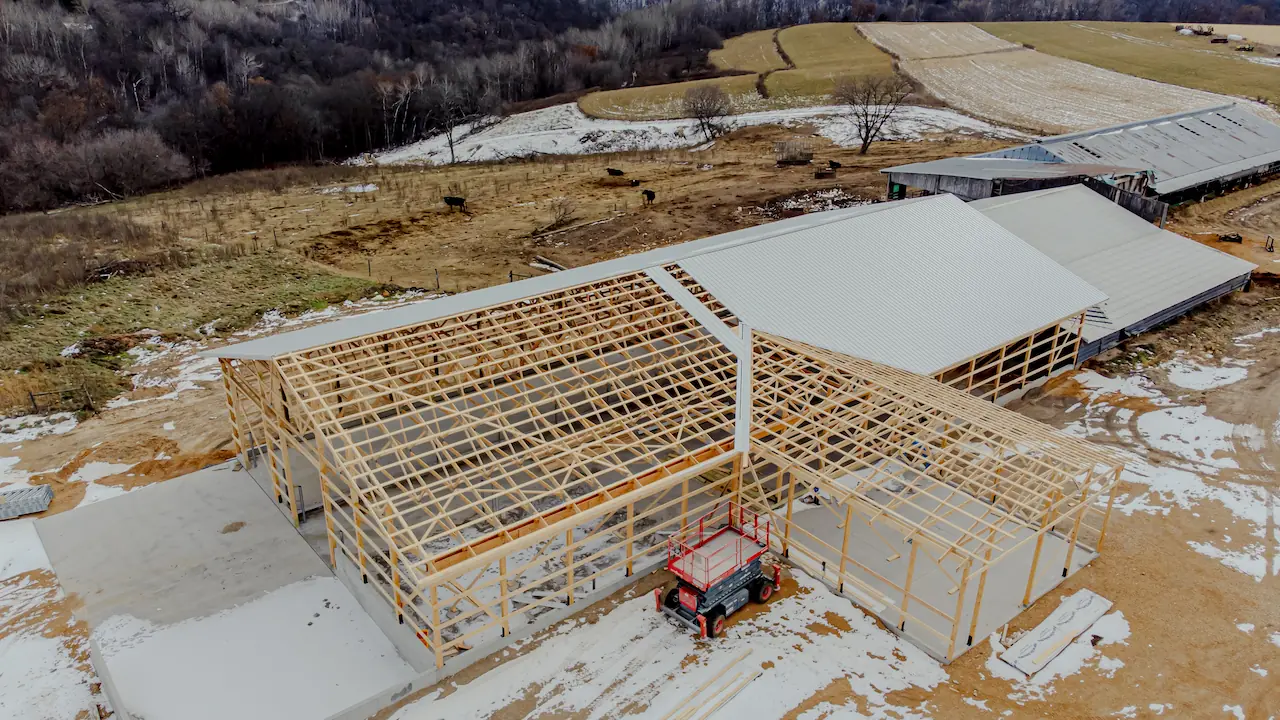

Huge post-frame barn under construction, with the structure in progress, highlighting the framework and development stage of the build.
Definition and Overview
A post-frame foundation is a structural system where vertical posts or columns provide the primary support for the building. These posts are typically embedded in the ground, anchored to concrete, or set on specialized brackets. A post-frame approach is known for its simplicity, adaptability, and cost-effectiveness.
In everyday language, think of it as a method where sturdy vertical posts do the heavy lifting—literally—while the rest of the building is constructed around them. Instead of using continuous foundation walls or a thick slab for all loads, these posts (combined with girts and trusses) transfer the weight to the ground.
How Post-Frame Foundations Differ from Traditional Foundations
Conventional foundations—like basement walls or full concrete slabs—tend to be heavier and require more extensive excavation. Post-frame, on the other hand, focuses on strategic placement of vertical members. The posts are distributed around the perimeter or at key interior points, reducing the amount of concrete and labor needed.
Simplicity in Construction
One reason post-frame systems are popular is how straightforward the build can be:
- Fewer materials (such as large beams or continuous walls).
- Quicker setup since posts or columns are installed at intervals rather than forming entire walls.
- Less guesswork regarding load paths—each post carries a portion of the weight.
Cost-Effectiveness
Builders often pick post-frame foundations because they cost less up front. By using wood posts or specialized brackets on a smaller footing, you can trim both material expenses and labor hours. Some people say going post-frame saved them up to 30% compared to building a standard poured-wall foundation—though exact numbers vary by region, design, and the overall scope.
Structural Flexibility
Another reason post-frame solutions are favored: you have wiggle room with design. Spacing your posts differently allows for open interior layouts, which can be great for storage or large equipment. You can also incorporate big overhead doors, wide openings, or unique rooflines without massive structural changes.
Common Applications
Post-frame isn’t just for barns and pole sheds anymore. It’s used in:
- Agricultural Buildings: Pole barns, storage for tractors, hay sheds, etc.
- Residential Post-Frame Homes: Modern “barndominiums” and custom houses that embrace the speed and affordability of post-frame design.
- Commercial and Industrial: Workshops, warehouses, and retail spaces where open floor plans matter.
Types of Post-Frame Foundations
1. Traditional Embedded Posts
Description: Posts Directly Buried in the Ground
In the most classic approach, you dig a hole, stick a treated wooden post inside, and backfill with concrete or a soil-concrete mix. The post is in direct contact with the ground, hence “embedded.”
Materials Used: Treated Wood

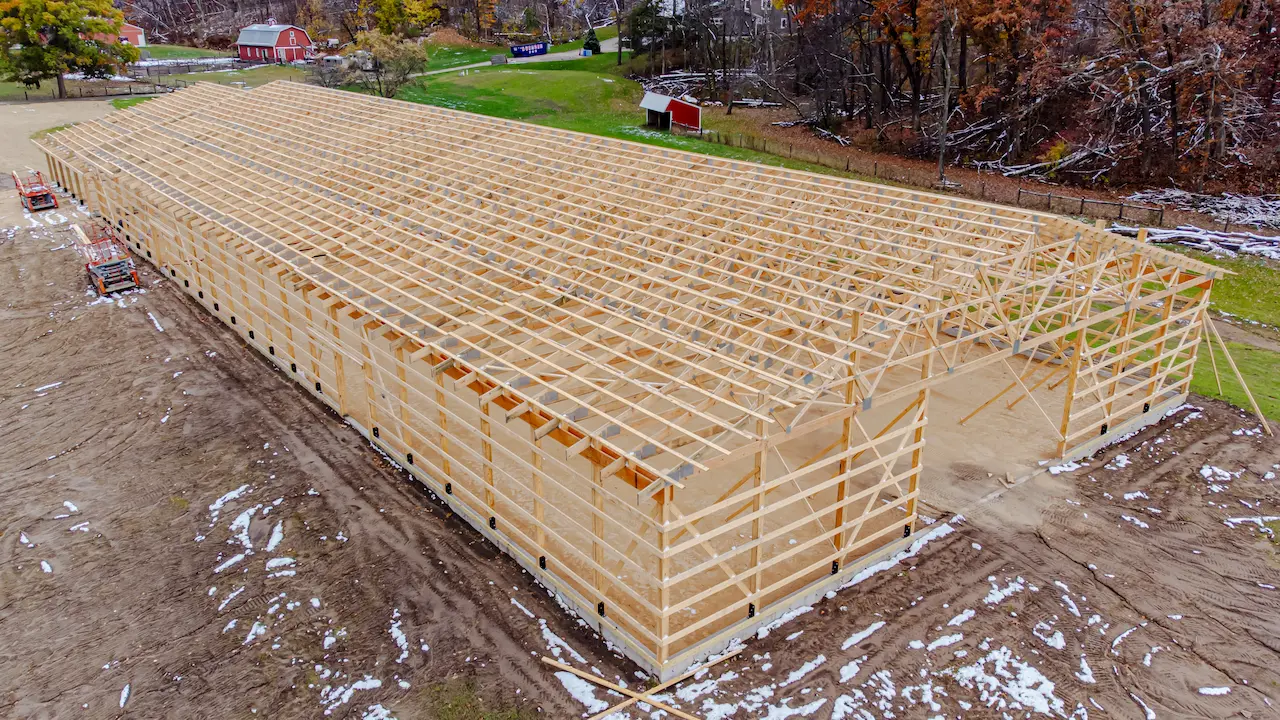

Post-frame building using treated wood, with framing underway, showcasing the initial construction phase as the structure's frame is built.
Not all wood is created equal. For in-ground posts, wood must be pressure-treated—often with chemicals like ACQ (Alkaline Copper Quaternary) or MCA (Micronized Copper Azole)—so it resists rot and insects.
Advantages
- Cost-Effective: You save on brackets, anchor bolts, or extra concrete.
- Quick Installation: Drill or dig holes, drop in posts, and secure them. Works well for straightforward projects.
Disadvantages
- Susceptibility to Rot: Even pressure-treated wood can eventually degrade, especially if the climate is wet or if drainage is poor.
- Limited Lifespan: Some embedded-post buildings stand for decades without trouble, but there’s a higher risk of post failure compared to other methods.
Pro Tip: If you go with buried posts, pay extra attention to drainage. Standing water can drastically reduce the lifespan of your foundation.
2. Concrete Perma-Columns
Description: Concrete Reinforced Posts
Perma-Columns are precast concrete columns that replace the wooden segment that would be in direct contact with the ground. Essentially, you’re keeping the wood post above ground while a concrete pier stands in the hole below.
Features of Perma-Column Concrete Posts
- Longevity: Concrete and steel reinforcement are resistant to rot, insect damage, and typical decay.
- Rot and Decay Resistance: By moving the wooden portion above grade, you’re removing the biggest contributor to post-frame decay—constant soil moisture.
Common Use Cases
- Agricultural Buildings: Perfect when you need peace of mind that your post-frame barn will stand for many decades.
- High-Humidity Areas: If you’re in a region where it rains a lot or the water table is high, these columns help keep wood safely above the damp soil.
Example: Perma Column SW66
Perma Column’s SW66 is a well-known model. It has steel brackets integrated into a concrete pier. You attach your wooden post to the bracket, ensuring the post never touches the soil. This design can significantly extend the lifespan of your structure.
3. Sturdi-Wall Brackets
Overview of Sturdi-Wall Brackets (SW66, SWP66)
Sturdi-Wall brackets are heavy-duty steel brackets used to connect wooden posts to concrete footings or foundations. They come in various models, like SW66 for wet-set applications and SWP66 for post-installed setups.
- SW66: Placed into wet concrete when you pour the footing or foundation wall. As the concrete cures, the bracket becomes embedded and holds the post in place.
- SWP66: Installed after concrete has hardened. You secure the bracket using anchor bolts or epoxy-based systems.
Installation Methods
- Wet-Set in Concrete: The bracket is placed into freshly poured concrete, typically when forming a footing or pier.
- Secured to Existing Concrete Foundations: Drill holes, use epoxy or mechanical anchor bolts, and attach the bracket.
Benefits of Sturdi-Wall Brackets
- Structural Integrity: Built with thick steel, they’re designed for high loads.
- Corrosion Resistance: Many have protective coatings or are made of galvanized steel.
- Ease of Installation: They can be quickly aligned and leveled, reducing guesswork.
Example: If you already poured a slab and realize you want post-frame walls, SWP66 brackets let you anchor posts without tearing up the existing concrete.
4. Floating Slabs
Description: Post Frame on Monolithic Slabs
A floating slab is a single, continuous pour where the perimeter is thicker (forming a footing) and the interior is thinner. In post-frame builds, you can embed brackets into the slab edges or install posts just inside.
Installation Process
- Preparing the Base: Includes removing topsoil, compacting the sub-base, and adding gravel.
- Pouring the Slab: Concrete is placed in one go, with perimeter areas usually a few inches deeper.
Benefits
- Stability: Monolithic slabs can hold up well if properly reinforced and placed over stable soil.
- Versatility: Ideal for garages, workshops, or any building that benefits from a fully finished concrete floor.
Watch Out: In areas with deep frost lines, you might need to go deeper around the edges or use insulation to prevent frost heaving.
5. Pier and Beam Foundations
Description: Combination of Concrete Piers and Horizontal Beams
In this method, you install cylindrical concrete piers (often poured or placed in drilled holes) below the frost line. Then, horizontal beams connect these piers, creating a grid. Your posts can rest on the beams, effectively raising the structure above ground.
Advantages
- Adaptability to Uneven Terrain: If your build site has slopes or inconsistent soil conditions, piers can be set at varying depths.
- Suitable for Heavier Loads: Well-designed pier and beam systems can handle considerable weight, sometimes more than typical embedded posts.
Foundation Design Options
Customization Based on Building Use
Residential Post-Frame Homes
Homeowners might want a living space free of support columns in the middle. A post-frame design with fewer but heavier-duty columns might be ideal. If you plan on finishing the interior, you’ll also consider insulation around the perimeter or under the slab.
Commercial Applications
Commercial structures often have wide-open layouts for retail or warehouse use. Post-frame foundations using sturdy brackets or precast columns allow big spans with minimal interior support.
Agricultural Storage
Sometimes you just need a large roof over equipment or hay. Simpler post-in-ground methods might be fine, especially if you’re not worried about a perfect polished floor.
Factors Influencing Foundation Design
- Soil Type: Clay or sandy? High water table? This can dictate if you need piers or more robust footings.
- Load Requirements: If you’re parking heavy machinery, you’ll need a sturdier foundation.
- Climate Conditions: Frost lines, flooding, and typical rainfall should guide your depth and drainage strategy.
Materials Used in Post-Frame Foundations
- Pressure-Treated Lumber: The backbone of many post-frame structures. Rated for ground contact if you’re burying posts.
- Precast Concrete Columns: Like Perma-Column solutions that remove the worry of wood rot below grade.
- Steel Reinforcement for Piers: Rebar or wire mesh in concrete piers or slabs.
- Fasteners and Brackets: Such as the Sturdi-Wall SW66 or SWP66, which keep your columns anchored firmly.
- Gravel and Concrete for Footings: Gravel can help with drainage, while concrete locks in columns for the long haul.
Features of Sturdi-Wall Brackets (SW66 and SWP66)
- Thick steel plating for high load capacity.
- Hot-dipped galvanized options for corrosion resistance.
- Designed with pre-drilled holes to match typical post sizes.
Installation Process for Post-Frame Foundations
1. Site Preparation
- Soil Testing and Compaction: Hire a pro or do basic tests to see how solid your soil is. Loose soil should be compacted or replaced with gravel.
- Grading and Drainage Planning: Grade the site so water runs away from your building. Add a perimeter drain or ditch if needed.
Bro Tip: Put extra effort into site prep. A well-compacted base can prevent foundation problems later. It’s cheaper to do it right the first time than fix a sinking post-frame building next spring.
2. Setting the Posts or Columns
- Steps for Installing Perma-Columns: Dig holes, set the precast columns, ensure alignment, then backfill with concrete or gravel.
- Aligning and Leveling Using Sturdi-Wall Brackets: If you’re wet-setting, place brackets into wet concrete and use a level to keep them straight. If you’re post-installing, drill your holes accurately before bolting the brackets down.
3. Securing the Footings
- Pouring Concrete Around Posts: For embedded posts, it’s straightforward—fill up the hole with concrete (or a concrete and aggregate mix).
- Attaching Brackets to Existing Concrete: If there’s already a slab or footing, you might anchor brackets with expansion bolts or epoxy-based anchors. Double-check torque specs so everything stays put.
Costs and Durability
Cost Comparison of Different Foundation Options
- Embedded Posts vs. Perma-Columns: Embedded posts are cheaper initially, but you risk rot over time. Perma-Columns cost more upfront but can add decades of service life.
- Floating Slabs vs. Pier and Beam: A floating slab might save on labor for simpler buildings. Pier and beam can handle uneven ground but typically requires more concrete or advanced prep work.
Factors Affecting Durability
- Materials Used: Untreated lumber in wet soil spells trouble.
- Installation Quality: Misaligned or poorly anchored posts can shift.
- Maintenance Practices: If water is pooling around your building, fix it. Minor drainage tasks can prevent major foundation damage.
Example: A simple pole barn with properly treated posts and good drainage might stand strong for 30–40 years. But if you go with Perma-Columns or robust bracket systems, you could see 50 years or more.
Benefits of Post-Frame Foundations
- Affordability and Simplicity: Fewer materials, simpler setups, and quicker builds reduce costs.
- Customization for Various Applications: Whether it’s a horse barn or a retail store, you can modify the spacing, number of posts, and bracket systems to match your needs.
- Resistance to Environmental Challenges: Some designs, like precast columns or brackets, avoid wood-soil contact, cutting down on rot risk.
- Long-Term Durability with Modern Solutions: Products like Perma-Columns and Sturdi-Wall brackets let you keep the wood above ground, so you avoid the classic “pole rotting in the hole” scenario.
Innovations in Post-Frame Foundations
- Sustainable Materials and Practices: More builders use environmentally friendly lumber treatments or recycled concrete aggregates.
- Advanced Bracket Designs: The SW66 and SWP66 from Sturdi-Wall are prime examples of brackets that simplify installation and enhance load capacity.
- Precast and Modular Solutions: Perma-Columns and similar products ship ready to install, cutting down on job-site cure times or the need to form and pour large footings.
Fun Note: Some folks are experimenting with helical piers in post-frame construction. While more commonly used in deck building, these steel shafts might become a mainstream option in the future, especially if they can handle large loads efficiently.
Frequently Asked Questions
How Long Do Post-Frame Foundations Last?
This depends on your materials and upkeep. A well-built pole barn with buried treated posts can last a few decades. But if you switch to concrete columns or metal brackets, the lifespan can jump significantly—potentially 50 years or more.
What Is the Best Option for Wet Soil Conditions?
If you’re dealing with soggy or high-water-table soil, consider something like Perma-Columns or Sturdi-Wall brackets. Both keep wood out of the damp ground, reducing the chance of rot.
Can I Retrofit a Post-Frame Building with Sturdi-Wall Brackets?
Yes. If your existing structure needs a post replacement, you might remove the old post (or cut off the rotted section), pour a footing, and install a bracket like the SWP66. It’s not always easy or cheap, but it can extend the life of an older building without rebuilding from scratch.
How Much Do Perma-Columns Cost?
Prices vary by region, but a single Perma-Column can run from $100 to $200+ each, depending on size and style. While more expensive than a plain wood post, it can be a money-saver over the long run by preventing rot issues.
Pro Tip: Always call local suppliers for an up-to-date quote, as shipping heavy concrete columns can also affect pricing.
Conclusion
Recap of Key Foundation Options
Post-frame foundations let you choose among several methods based on budget, soil conditions, and the building’s purpose:
- Embedded Posts: Budget-friendly, straightforward, but watch out for rot.
- Perma-Columns: Combine concrete piers and wooden posts, keeping wood above grade.
- Sturdi-Wall Brackets: Rugged steel connectors that anchor posts to concrete in various ways.
- Floating Slabs: Monolithic concrete floors that can host post-frame walls for garages, sheds, or commercial spaces.
- Pier and Beam: Great for rough terrain or heavier loads, though a bit more involved to install.
Choosing the Right Solution for Your Project
Ask yourself:
- What am I building? A horse barn, a home, or a machine shop?
- What’s under my feet? Clay, sand, or rocky soil?
- Am I on a tight budget, or do I want a foundation that’ll last generations?
- Do I need a quick build, or can I invest time in a more robust solution?
Your answers will guide you to the right foundation approach. Sometimes, a simple embedded post design works fine—particularly if you’re building a low-stakes storage shed. But if you’re putting up a dream home or a big commercial facility, upgrading to Perma-Columns or advanced bracket systems might be worth every penny.
Future Trends in Post-Frame Construction
Looking ahead, we might see:
- More Precast Elements: Factories can mass-produce footings, columns, or bracket systems that install quickly on-site.
- Engineered Wood Products: Glulam or laminated veneer lumber (LVL) posts with better structural performance.
- Improved Coatings: Even better anti-rust and anti-corrosion treatments for brackets, giving them near-lifelong performance.
All these trends aim to make post-frame buildings even more durable, eco-friendly, and easy to construct.
Surprising Facts About Post-Frame Construction
This section highlights a few eye-opening truths about post-frame foundations—some might even call them shocking:
- Rot Happens Faster Than You Think
In consistently moist or flood-prone areas, even “ground-contact” lumber can start showing signs of decay in 5–10 years. Builders who skip proper drainage or rely on subpar lumber sometimes regret it sooner than expected. - The Moisture Battle Is Real
A single inch of standing water around a post for extended periods can accelerate rot significantly. Over time, that little puddle can eat away at the foundation’s integrity. - Foundation Failures Are Not That Rare
A surprising number of outbuildings with direct-buried posts need major fixes or rebuilding after 15–20 years—often because owners assumed “pressure-treated” meant “invincible.” - Brackets and Concrete Piers Can Pay for Themselves
While the initial purchase might seem pricey, the reduction in long-term repairs (or post replacement) can save thousands. Some owners who switched to bracket or pier systems ended up never having to worry about rotted posts again. - You Can Go Post-Frame for a Full-On, Fancy Home
More homeowners are discovering that a post-frame approach can look just as sleek and modern as any standard construction method—if you use the right finishes and pay attention to design details.
In Focus: How to Prevent Rot and Decay
One of the biggest headaches in post-frame construction is battling moisture. Here’s how to keep rot at bay:
1. Site Drainage
- Slope the Ground: Make sure water runs away from the building, not toward it.
- French Drains or Perimeter Drains: Lay perforated pipe around the building foundation to carry excess water away.
2. Ventilation
- Elevate Wood Above Damp Areas: Even a few inches of clearance can make a difference.
- Add Vents: If your building design allows, ensure there’s airflow underneath floor joists or around the post bases.
2. Material Quality
- Proper Treatment: Use wood rated for ground contact if embedding.
- Concrete Barriers: Perma-Columns or brackets keep the wood from directly touching soil or damp concrete.
2. Maintenance
- Regular Inspections: Check for early signs of rot, termite damage, or water pooling.
- Timely Repairs: A small patch of rot can spread if ignored. If you see soft spots, address them before they worsen.
Quick Story: A friend of mine built a small workshop with embedded posts, but never bothered to grade the site properly. Five years in, he noticed one corner post softening. He ended up retrofitting that corner with a bracket-based solution, which cost more time and money than if he’d just sorted out the drainage properly in the first place.
Best-Selling Books on Post-Frame and Foundations
If you’re hungry for more in-depth knowledge (and some pictures or step-by-step guides), these books can be a real help:
- “Post-Frame Building Handbook” by the NFBA (National Frame Building Association)
- Why It’s Great: Offers guidelines specifically for post-frame construction, including foundation design, structural layouts, and code requirements.
- Check their website for the latest edition or find copies through major online retailers.
- “Foundations & Concrete Work” (For Pros By Pros)
- Why It’s Great: While not solely about post-frame, it covers footings, slabs, and specialized bracket installations that apply directly to post-frame builds.
- View on Amazon
- “Monte Burch's Pole Building Projects: Over 25 Low-Cost Plans ” by Monte Burch
- Why It’s Great: Offers practical tips, from site prep to finishing details. Written in straightforward language that beginners can follow.
(Check availability on your preferred online bookstore or ask a local shop to order them.)
Conclusion
Post-frame foundations have come a long way from the days of simple “pole barns.” You can still bury a treated post in the ground if you’re on a tight budget, or you can get fancy with Perma-Columns, Sturdi-Wall brackets, or even a floating slab. The choice largely depends on:
- Site Conditions: Is your soil typically soaked? Do you have to go below a deep frost line?
- Budget vs. Longevity: Do you want the cheapest option right now, or do you care about not having to replace rotted posts in 15 years?
- Building Use: Machinery storage, a cozy home, a busy commercial shop—all have different demands.
Remember these key takeaways:
- Good Drainage is the single best defense against post rot and foundation woes.
- Quality Materials (lumber, brackets, and concrete) often pay you back in fewer repairs.
- Innovations (like Perma-Columns or advanced bracket systems) can ensure your building stands tall for decades.
- Don’t Skip Maintenance: A quick check a couple of times a year helps you catch small problems before they explode into large, expensive ones.
Whether you’re building a barn that must endure decades of muddy tractor tires or a sleek retail space with high foot traffic, post-frame foundations offer a versatile, cost-friendly, and efficient route. With the insights (and maybe a few shocking truths) in this guide, you should be well on your way to planning a rock-solid base for your project. Good luck, and may your posts remain upright and rot-free for a long time to come.
Official Resources and References
- National Frame Building Association (NFBA)
- www.nfba.org
- Focus: Dedicated to advancing post-frame construction. Offers technical guides, code updates, and design resources.
- American Wood Council (AWC)
- www.awc.org
- Focus: Provides guidelines on wood engineering, including load tables for posts and beams.
- International Code Council (ICC)
- www.iccsafe.org
- Focus: Publishes the International Building Code (IBC). Some sections specifically address post-frame design, footings, and bracket anchoring requirements.
- American Concrete Institute (ACI)
- www.concrete.org
- Focus: Has extensive publications on concrete mixes, curing, and footings relevant to Perma-Columns, floating slabs, and pier foundations.
- Research Papers and Publications
- Journal of Structural Engineering (by ASCE) sometimes includes articles on post-frame analysis.
- NFBA technical bulletins may provide in-depth case studies or test results comparing bracket-based anchors vs. embedded posts.
Why Use Official References?
They ensure you’re meeting recognized standards, which can prevent code violations and keep your structure safer. Plus, insurers sometimes require proof that your building meets or exceeds local or national guidelines.
