From Grid to Light: Making Design Rules Work as One
The Chain of Design: Scale, Rhythm, Material, Light
Architectural principles do not live in separate boxes. On real projects one move pulls five more. Scale sets what the hand touches. Proportion decides how those parts relate. The grid keeps drawings clean. Rhythm is that grid felt in steps and light. Material and detail prove every choice at full size. Light reveals the whole and tells you if the cadence is steady.
When I teach juniors, we run one loop on every plan: does the size fit the body, does the grid hold the room, does the light set a clear beat, do the joints keep the pattern honest, and does the street read the building as a good neighbor. If any answer is weak, we fix that link first. The rest follows.
This is not theory for its own sake. Align mullions with columns and the facade stops lying. Let slab spans guide ceiling rhythm and rooms calm down. Choose one clear module and costs behave because crews repeat work instead of relearning it. When these principles support one another, drawings get simpler and the building feels sure before the renderings arrive. Use this piece as a quick reference. Then open your current project and run the loop.
Turning Rules into Rooms: Linking Grid, Proportion, and Pattern
Learn the simple loop that links structure, rhythm, and comfort. Use it to make plans read fast and facades tell the truth.
The loop: from bones to daylight
Every project begins with a few anchors: human scale, structural spans, site lines, and light. Put them in order and you will avoid most late chaos. Here is the loop I use when a plan starts to wobble:
Scale first. Doors that welcome. Steps that match the body. Handrails within reach. When scale is right, people relax and trust a space. If you need a fast primer for new team members, send them to a plain introduction on how buildings come together and the common language we use. See a simple overview here: how a building is assembled.
Proportion next. Ratios guide balance without shouting. A 1:2 wall has a steady calm. A 2:3 room offers reach without waste. Use a few strong ratios, not dozens. For a friendly refresher with drawings, point juniors to keeping scale and proportion human. After that, set your grid and stop adjusting numbers until the layout asks for it.
Grid to rhythm: the quiet order people feel
A grid is not a cage. It is a promise. It tells structure where to land and gives the elevation a logic the eye can read. Rhythm is how that promise feels when you walk it. If your bays are equal and the light falls with a steady pace, the room carries people without signs.
On a recent library, we set a 7.2 m structural bay for stacks and study tables. That span drove beam depth, which in turn set ceiling coffers at half-bay intervals. Pendant lights landed on the same beat. The drawing was clean because the rules matched. More important, the room felt calm. When we reached the entry, we widened one bay by 10% to slow the approach and hold a view. One measured break told the story better than a big gesture would have.
If your rhythm feels rushed, widen a bay or add a pause. If it feels dull, tighten spacing near activity or cut in a light slot. Treat rhythm like tempo: long beats for rest, short beats for energy. This is where a good sketch habit pays off. Ten minutes a day of line studies will sharpen your eye for even spacing and deliberate change; if someone on the team needs a nudge, point them to quick drills to sketch like an architect.
Axis, hierarchy, and flow: a plan people can read in seconds
Axis sounds academic until you use it to align doors, views, and light. A soft axis through a lobby will guide the body without a sign. Hierarchy tells people what to notice first. Give the main route more width and more daylight; let service routes stay quiet. Flow is the sequence: compress, open, rest, turn. If you can mark those beats on a plan with your eyes, the visitor will feel them with their feet.
In a health clinic we finished last year, the main corridor was a straight line but it did not feel like a runway because we used a slow rhythm of alcoves and benches. The axis stayed true; the rests made it humane. At the same time we kept exam room modules identical, which cut errors and helped staff learn the layout fast. If you are mapping your own circulation, compare it with a simple walkthrough of planning methods; this summary of step-by-step space planning pairs well with mock-ups and quick tape layouts.
Structure, pattern, and truth on the facade
The fastest way to make a facade honest is to let bones and skin speak the same language. When column spacing sets window spacing, and floor lines govern sill and head heights, the building stops pretending. Pattern then becomes the visible echo of structure: a repeat that carries use and light.
We had a mid-rise housing job where the contractor warned about budget early. We kept the structural grid tight and used two window sizes only. Bedrooms took the smaller unit; living rooms took the larger. The repeat was steady across most of the elevation. At entries, we stacked two small windows into one tall opening to pull the eye. Because the language was simple, the bid was clean. Crews repeated work instead of inventing new steps at each bay. The pattern earned its keep.
If pattern feels like decoration, tie it to a joint or a span. And before you add more parts, check whether balance is off rather than the idea. A clear primer on reading weight on elevations is here: practical balance in architecture. Fix spacing first; then decide whether you need an accent.
Material and detail: where drawings prove themselves
Material is how the idea meets the hand. Detail is how it survives weather and time. The same spacing feels different in wood, stone, and metal. Wood warms and softens the rhythm. Stone sharpens it. Metal makes it lean and precise. That is why I sketch a joint at full size before I approve a pattern. If water cannot leave by gravity, the repeat will rot. If a thermal line is broken, comfort will suffer no matter how good the photo looks.
On a museum expansion, our stone rainscreen used a 600 mm module that matched the window mullions. We kept a deep reveal to make shadow legible on overcast days. Inside, the same module set slat spacing for acoustic panels. The joint stack—clip, cavity, insulation, air seal—was the same logic from outside to inside. Visitors felt the rhythm without thinking about it. We built fewer unique pieces and spent less time on site resolving corners because the detail was a repeat, not an invention.
When your team is choosing surface strategies, look at how texture and pattern work together across scales before you lock a spec. A short field-friendly read is here: using texture and pattern with purpose. Then test with a plywood mock-up and a shop light. You will see where the cadence holds and where it falls apart.
Designing as a System: Structure, Rhythm, and Comfort
Light and shadow: the final reviewer
Light is the fastest truth-teller in design. It shows whether your rhythm is steady, whether proportion sits right, and whether a surface is doing real work. On cloudy sites, you need broader moves so the building reads at a distance. In high sun, you need depth to keep glare down and detail legible.
For a school atrium, we used two long roof slots rather than a field of small skylights. The larger beats gave us even daylight for most of the day. A slim perimeter light shelf softened contrast near the walls. Students could read anywhere without chasing a patch of brightness. We studied the pattern with a shoebox model and a desk lamp first, then confirmed it with a simple daylight sim. Old-school tests still catch mistakes faster than a late render.
If you are struggling to capture light logic in drawings, take a short pass through basic architectural drawing techniques and redraw one section only with light paths and shadow edges. Do that once and you will read your own projects differently.
Comfort is design: acoustics, air, and the body
People will forgive a missed style; they will not forgive a room that is too loud, too bright, too hot, or impossible to find their way in. Comfort is not a separate checklist; it is baked into layout, structure, material, and light. When the pattern is doing work, comfort becomes easier to achieve.
Acoustics follow rhythm. A steady wood slat pattern over absorptive backing calms a tall hall. Ventilation follows grid. Regular ceiling bays give you predictable runs for ductwork without fighting structure. Thermal comfort follows proportion and glass area. Keep a repeat of solid-to-void that suits climate, and you will spend less on fixes later.
On a civic hall, we matched the ceiling slat rhythm to beam spacing. That allowed diffusers to land in the same cadence and kept maintenance simple. We also set a consistent reveal depth for windows, which softened summer glare without heavy blinds. The building stayed quiet and cool with less equipment than the consultant first proposed because the rules supported performance.
Context and orientation: fitting the street without mimicry
A building does not sit alone. Cornice lines, tree spacing, roof pitches, and porch depths are all patterns already in the neighborhood. You do not have to copy them, but you should listen. Match their beat and you can change the melody without making noise.
When we worked on a block of infill housing, we kept the main floor heights and sill lines where the street expected them. We made the corners generous and turned the entries a few degrees to greet the sidewalk. The result fit without imitation. That is what context means: not pastiche, but rhythm.
If your team is wrestling with massing at block scale, revisit fundamental ideas about how form reads from across the street. This simple explainer on what form does at urban scale helps keep the big picture steady while you tune the details.

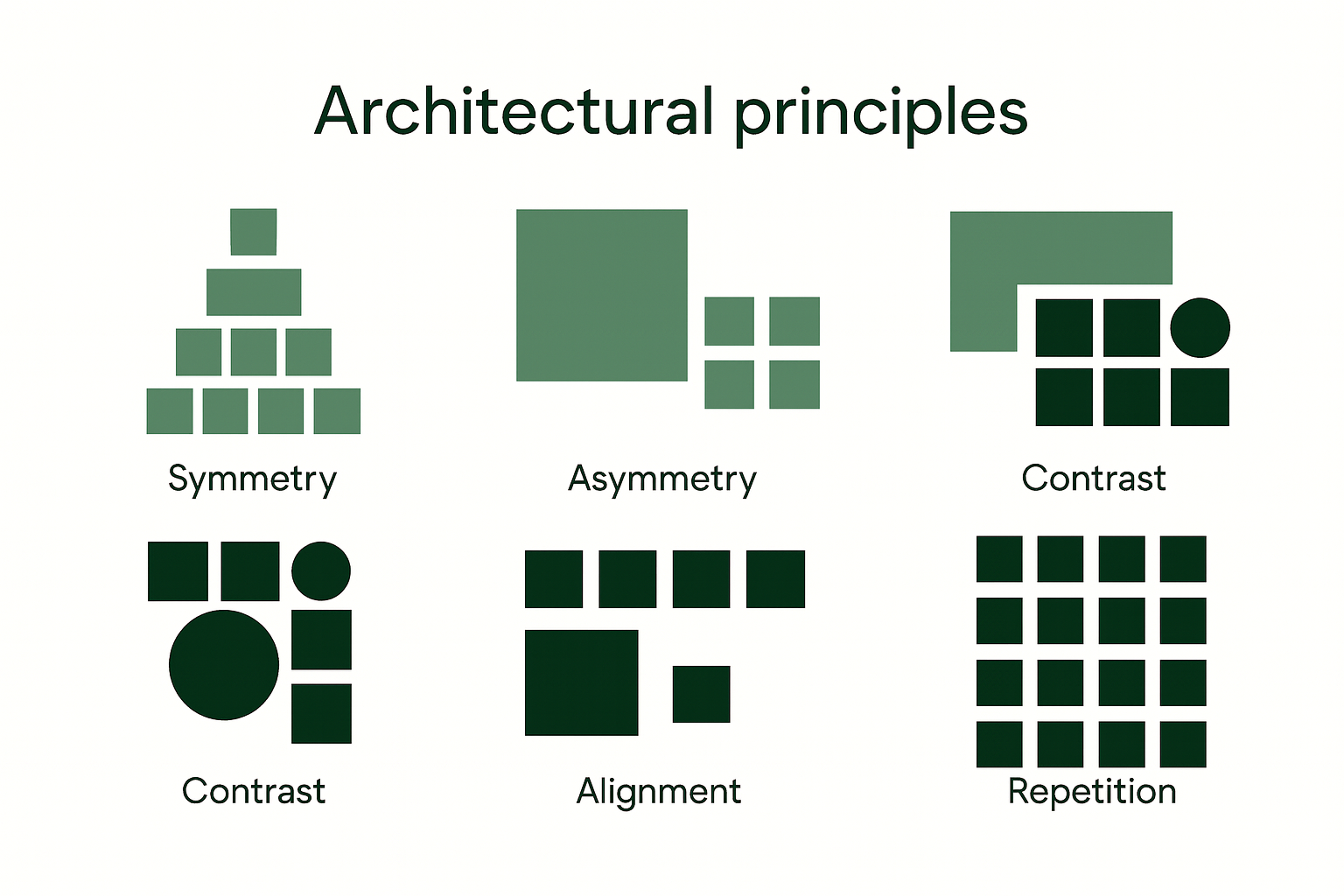

The Working Set of Principles: What Holds a Building Together
Turning rules into rooms: a field example
Here is a compressed story from a community arts center we delivered:
Brief. Flexible studios, a small black-box theater, and a daylight gallery. Tight budget. Busy street to the south, quiet lane to the north.
Scale and proportion. We set classroom modules at 7.2 × 9.6 m for layout efficiency. The theater bay was a double module for rigging. The gallery used 1:2 walls to keep calm sightlines.
Grid and rhythm. A 7.2 m structural grid governed beams, lights, and the sprinkler pattern. In the gallery we halved the beat at the ceiling to give smaller steps for track lighting.
Structure and facade. Columns on the north aligned with mullions. On the south, deeper fins handled sun and noise. The fins kept the same repeat as the mullions so the elevation stayed honest.
Material and detail. Outside we used fiber-cement panels with a 600 mm joint stack to echo the window rhythm. Inside we kept a timber slat field at 100 mm centers over acoustic fabric. Every joint drained or breathed by gravity. We used the same thinking from exterior to interior, so crews learned one language.
Light and comfort. Roof slots ran east-west for even glow in the gallery. Studios took high north light. The theater stayed dark with a thick envelope. We avoided glare on the south by using the fins to keep a 1:3 solid-to-void ratio near desks.
Context. The building aligned with neighboring sill and head lines. We matched the sidewalk tree rhythm with canopy columns, so the approach felt like one continuous walk.
Result. Fewer unique parts, easier coordination, lower cost. Visitors found rooms without signs because rhythm did the work. That is principles working together.
When the set drifts: common failure patterns
Too many ratios. If every wall has a different proportion, nothing leads. Pick two or three. Let those carry the project.
Grid worship. A rigid grid that never yields will fight use. Allow a clear, small break where the plan needs it: entry, stair, major view.
Facade makeup. Drawing a pattern over a random plan will always read false. Make the inside teach the outside what to do.
Shadow blindness. Flat details on a cloudy site vanish. Add depth or risk a dead elevation. On bright sites, thin details will glare. Either way, study light early.
Joint denial. If a detail does not drain, it will fail no matter how elegant. Draw the path of water, air, and heat. Repeat the detail until it is boring. Boring is good at joints.
Studio drills that build the habit
Drill 1: Three-scale sheet. For one wall, draw the whole elevation, a slice at 1:20, and a corner at 1:5. Label what repeats. Circle where it changes, and write why. This forces rules to meet reality.
Drill 2: Tempo walk. Tape a plan on the floor and walk it. Mark where you slow and where you speed up. Adjust door spacing to match the tempo you want. Do the same with pendant spacing. Rhythm is a feeling before it is a diagram.
Drill 3: Light box. Cut two slots in a shoebox. Track the light for an hour. Move one slot by a small amount and see how the room changes. You will learn more about proportion and pattern in one afternoon than a week of renders.
Drill 4: Context read. Stand across the street. Sketch roof lines, sill heights, and tree spacing. Put those beats on trace over your elevation. Keep what fits, change what fights.
Tools that help without taking over
Digital tools can accelerate study if the idea is already clear. Use parametric methods to test a base module and one rule for change. Avoid scripts that add noise faster than knowledge. If you want a quick scan of software that supports early studies and clear iteration, check this compact roundup of design tools for concept work. Keep the model serving your judgment, not replacing it.
Form, parti, and the story people remember
Your rules become a story only when they support a single idea the visitor can feel. That idea is the parti. If the building is about a courtyard, the grid, the openings, and the light should all point to it. If it is about a long view, the proportions and the rhythm should lead the eye there without shouting. A short, practical explainer on steering decisions with one idea lives here: working with a clear parti. Tie your rules to that idea and you will make fewer moves with better effect.
Minimal moves, strong pattern
Silence in architecture is not the absence of choice; it is the presence of a few strong choices repeated well. Many students try to fix a weak plan with finishes. It never works. Get the grid right, set a steady rhythm, choose a material that carries shadow, and then stop. Reduction only reads as quality when the underlying pattern is strong. If your team is exploring that direction, this primer on minimalist architecture pairs reduction with discipline.
The checklist I use before a deadline
- Scale: can a visitor reach, sit, turn, and see without strain?
- Proportion: do two or three ratios carry the whole?
- Grid: do bones and skin align so details shrink?
- Rhythm: does the plan have a tempo that matches use?
- Light: is glare controlled and shadow legible?
- Material: do joints repeat and drain by gravity?
- Pattern: is the repeat doing work, not faking it?
- Context: does the street read the building as a good neighbor?
- Comfort: acoustic, thermal, and wayfinding needs met without signs?
If the answer is “no” to any line, fix that link first. The rest will improve with it.
Further reading inside your own site
For juniors who want one place to start, first walk through a short overview of form and how massing choices affect space and movement; the summary at learning form and relationships is a good warm-up before jumping back into proportion and pattern.
When you shift from desk work to layout in a real house or small building, these small, practical checks will save you time: see house planning moves that improve daily life. The logic scales up: clear rhythm, steady light, honest joints.
Nature: The Ultimate Teacher of Architectural Principles
Every principle architects learn — proportion, balance, rhythm, structure, light — already lives in nature. The forest, the desert, and the coastline are full-scale classrooms. The best designers don’t invent order. They notice it.
Watch a tree. The trunk rises as the datum, branches divide in hierarchy, leaves follow a pattern that balances weight and light. That is proportion, circulation, and structure working as one. Nothing is added that doesn’t serve growth or strength. Nothing decorative survives long without purpose. Architecture at its best follows the same law.
Look at a shell or a honeycomb. Form and function merge through repetition and variation. The grid becomes a living structure. Planes curve to redirect pressure. Texture records age and stress. This is tectonics and material honesty long before we named them.
Water gives lessons in flow and movement. It finds the simplest path through constraint. Buildings that move air and light well follow the same pattern — circulation that feels effortless. Good orientation is just wind and sun studied properly. Every sustainable system copies a natural cycle: collection, storage, release.
Even decay teaches. Stone darkens on its wetter side, wood silvers where rain meets light. Patina is not failure; it is time recorded. Architects who respect weathering design joints, edges, and overhangs that let age write gently on the surface instead of tearing it apart.
Space in nature has rhythm too. A grove alternates trunks and gaps. A canyon wall reads as plane and void. The body learns to move through these sequences without instruction. That instinct — how we read balance and direction — is the same one good architecture relies on.
Great builders, from temples to modern houses, started by watching how nature holds itself together. They learned hierarchy from forests, proportion from bodies, contrast from sunlight, and unity from weather. The line between landscape and architecture is thin when you look closely.
For a deeper dive into these visual logics, see our guides to contrast in architecture, pattern and texture, and core design principles.
Closing
Reading a Building’s Logic: Bones, Skin, and Light
A field-tested way to connect spatial order with light, material, and pattern so your drawings stay clear and buildable.
Design is a chain, not a pile of tricks. Scale sets the hand, proportion steadies the eye, grid carries structure, rhythm guides the body, material proves the joint, and light reveals the truth. When those links support each other, drawings grow simpler, bids get cleaner, and the building earns trust before a single photo is taken. That is the goal: rules that work as one, rooms that serve people, and a city that feels more coherent because your project kept the beat.
FAQ
How do I decide the first module or grid?
Start from use, not looks. Size the main room types against the body (seating widths, reach, turning circles), then test structural spans that serve those sizes with the fewest exceptions. Lock one base bay and only break it for a clear reason: entry, stair, or view.
What’s the fastest way to check if my proportions feel right?
Print one plan and one elevation at the same scale. Trace two or three dominant rectangles (walls, openings, rooms). If you see more than three different ratios, you’re probably chasing noise. Reduce until two strong ratios carry the whole.
How do grid and rhythm differ in practice?
The grid is the measured framework (bays, mullions, joists). Rhythm is how people feel that framework in steps and light. If a corridor feels rushed, widen a beat or add a pause (alcove, bench, light slot) without changing the whole grid.
How should structure show on the facade?
Let column spacing set window spacing. Keep sill and head lines aligned with floor lines. Use one smaller unit to mark special bays (entry, corner). If the inside and outside fight, simplify until bones and skin speak the same language.
What’s a simple light rule that saves most interiors?
Choose an even base rhythm first (e.g., repeat clerestories or roof slots), then introduce one deliberate change for focus. Aim for comfortable contrasts: avoid glare surfaces in high-sun zones and use depth to keep shadow legible in overcast climates.
How can I keep costs down without losing clarity?
Reduce unique parts. Two window sizes, one door head detail that works in multiple conditions, one panel module outside that echoes inside spacing. Fewer exceptions mean fewer errors, quicker bids, and happier crews.
Where do comfort and “rules” meet?
Comfort is the test of your rules. Repeats help ducts and diffusers land cleanly, steady window rhythms control daylight, and consistent reveal depths manage glare. When pattern does work, acoustic and thermal fixes shrink.
How many materials should I use on a small project?
Two primaries and one accent is plenty. Make the primaries carry most surfaces and joints; use the accent only where the plan turns, a hand touches, or an entry needs clarity.
What’s the minimum drawing set to prove my idea?
One plan, one key section, one exterior elevation, and one 1:5 joint. If those four read the same rhythm and ratios, you’re ready for coordination. If they don’t, fix the logic before adding more sheets.
How do I avoid “decorating” with pattern?
Tie every repeat to a job: carry load, guide movement, control light, or drain water. If a motif does none of those, it’s cosmetic. Remove it and strengthen the patterns that already serve use.
What’s the quickest field test for context?
Stand across the street and sketch three beats: roof line, sill/head lines, and tree or light-pole spacing. If your elevation can echo those beats with your own language, you’ll fit without mimicry.
How do I pick where to break a pattern?
Break it where a decision happens: at an entry, a stair, a major view, or a change of program. Make the break measurable (one bay wider, doubled height, deeper reveal) and keep it unique so the rest of the pattern reads stronger.
What should juniors practice weekly to “see” rhythm?
Do a ten-minute line study of one facade or corridor: count the beats, mark the pauses, and note where light changes the read. Repeat on a different building. The habit trains your eye faster than software tutorials.
How do I explain my design logic in critique?
Start with the chain: scale → proportion → grid → rhythm → material → light. Show one sheet per link. Then point to one deliberate break and say why it serves people (wayfinding, view, comfort). Keep it concrete and measurable.
Where should I start if I’m totally new to this?
Warm up with a plain-language overview of how buildings come together, then run a quick proportion check on your current plan. Helpful primers: intro to how buildings fit and keeping scale and proportion human.
