Badshahi Mosque Construction: An Architect’s Field Reading

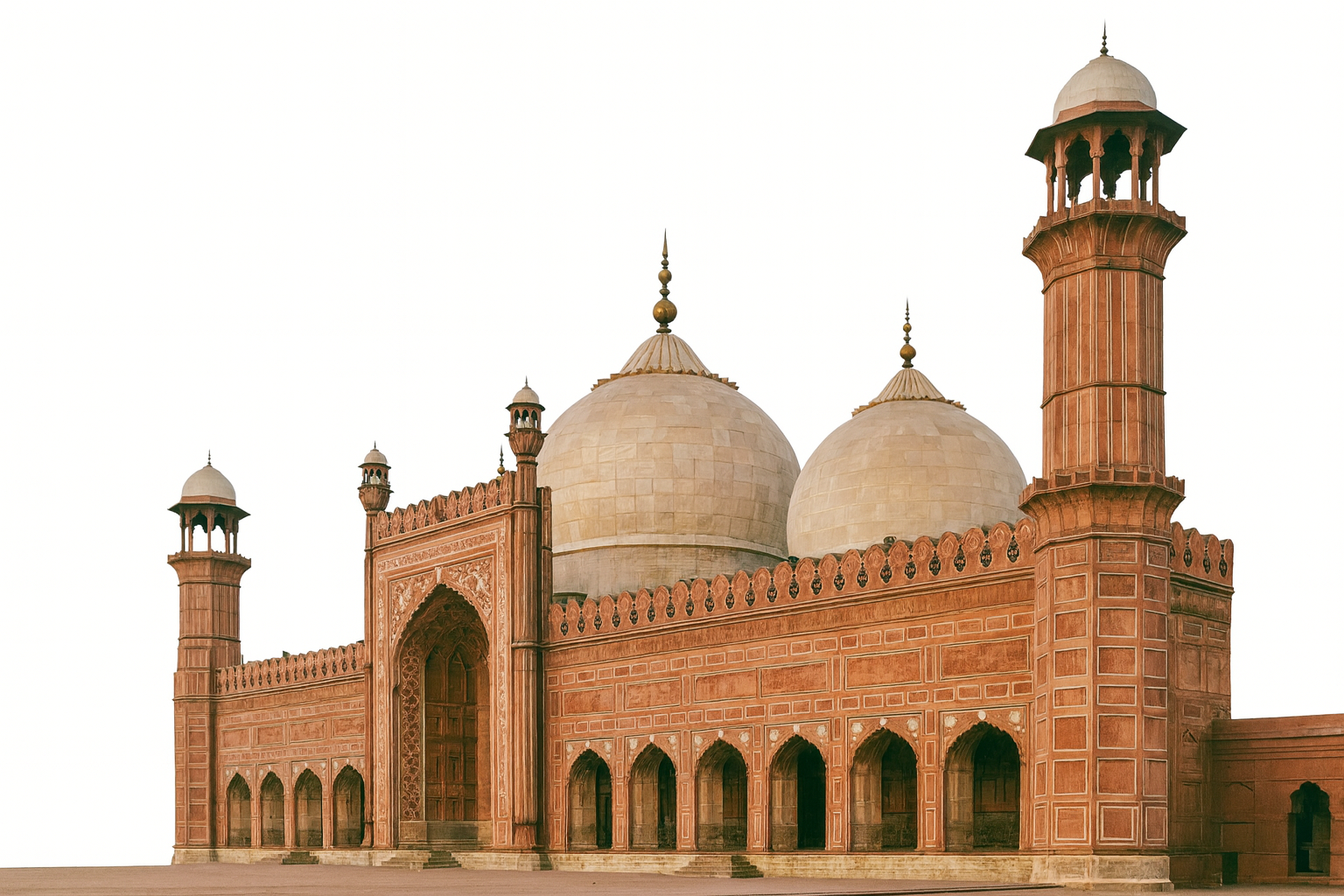

Badshahi Masjid reads as mass first, ornament second. Built under Aurangzeb in 1671 to 1673, the complex sets a direct line between the mosque and the Alamgiri Gate of the Badshahi Qila. Red sandstone carries the structure. White marble marks hierarchy at domes, chhatris, and inlay. The result is a controlled dialogue of power, prayer, and city.
History of Badshahi Mosque Architecture
Why Lahore, and Why Then?
The Badshahi Mosque was ordered by Aurangzeb in 1671 and finished in 1673. Location was not chance. Lahore sat at a strategic hinge, commanding the northern roads to Kashmir, Kabul, and Delhi. Setting the mosque directly across from the Alamgiri Gate of the Badshahi Qila made Hazuri Bagh more than a garden. It became a stage where empire and faith faced each other in measured geometry.
A Timeline Written in Stone
1671: Construction ordered. 1673: Mosque completed under Fidai Khan Koka. 1799: Ranjit Singh captures Lahore; the mosque becomes a stable and garrison. 1849: British take control; peripheral hujras demolished and replaced with dalans. 1930s–1960s: Large-scale restoration returns the complex to prayer and civic life.
Each line on this timeline carved scars and additions. The Mughal sandstone and marble core stayed intact, but Sikh and British alterations fractured the enclosure. Modern conservation stitched back some continuity, leaving today’s mosque as a layered palimpsest.
Steps, Plinths, and Separation
Twenty two steps lift the mosque above the ground. The plinth is not just foundation but a civic gesture. It signals separation from the street and gives the central axis a commanding horizon line toward the fort. The courtyard beyond is a sahn designed for Eid prayers, capable of holding over one hundred thousand worshippers. Scale itself becomes the ornament.
Plain Walls, Sharp Choices
Unlike the surface-rich mosques of Shah Jahan, the Badshahi Masjid keeps most planes plain. Red sandstone walls stretch wide and unbroken, their only interruptions arches, cornices, and framed marble inlay. This restraint makes proportion and light the true decoration. In an empire where excess was common, this mosque showed power through discipline.
Lineage and Global Echoes
Placed in the Mughal sequence, the mosque belongs to the late phase where urban setting outweighed intricate finish. Its fort-mosque dialogue mirrors fortress-mosque pairings in North Africa and Spain. The lineage connects directly to patterns mapped in Islamic Architecture History: Origins, Evolution, and Impact. For insight on the vertical markers that dominate skylines, see The Architecture of Minarets: What They Are and How They Work.
Badshahi Mosque Materials and Structure

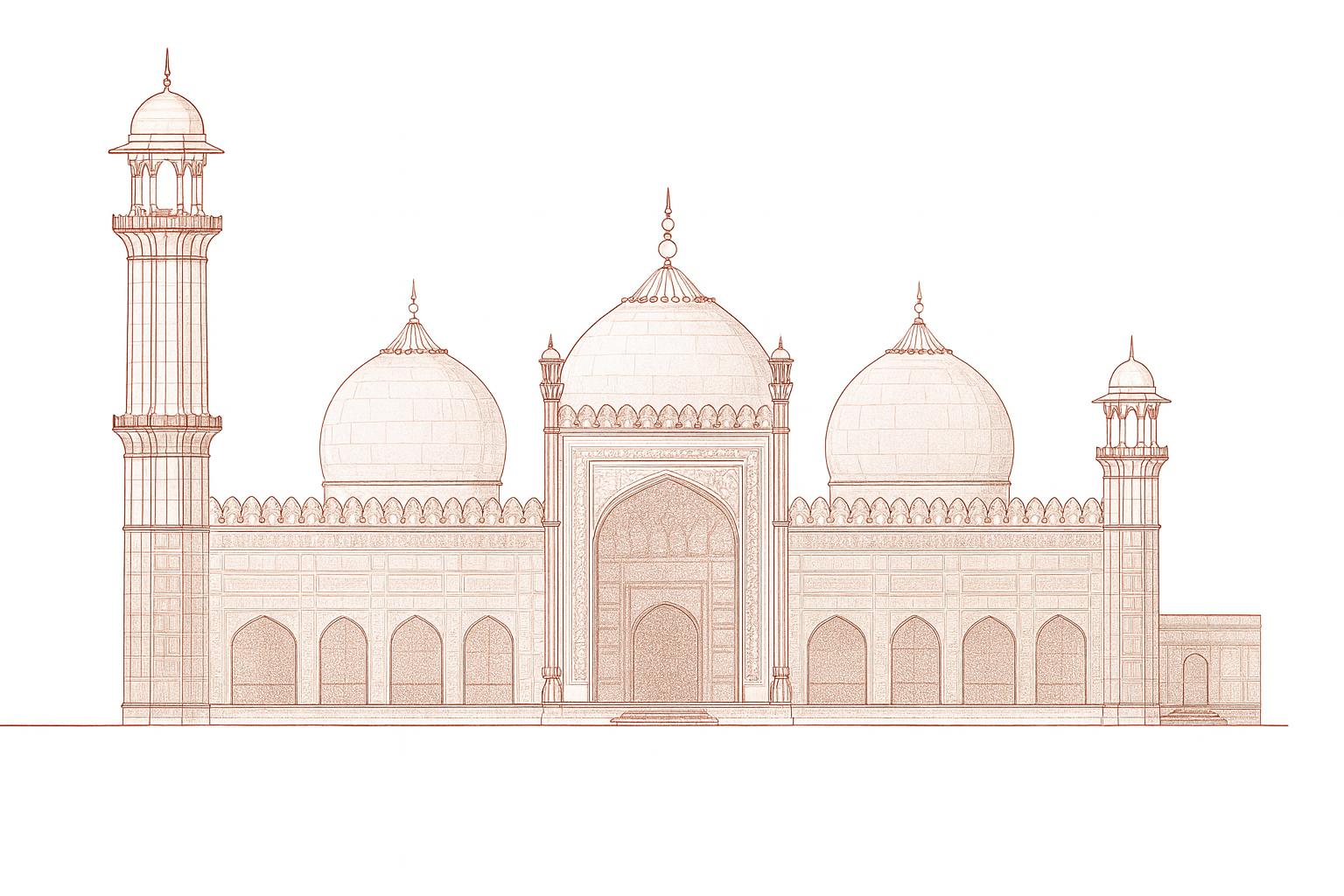

A technical architectural section cut of the Badshahi Mosque showing domes, arches, and minarets in detailed linework.
The Kit of Parts
Every element was drawn to signal permanence. Four octagonal minarets rise close to sixty meters, tapering in measured setbacks and capped with marble chhatris. They are not decoration but anchors that pin the corners, frame the courtyard, and balance the skyline. Their facets take wind cleanly, showing that engineering and proportion were considered together. For lineage on spire logic, see The Architecture of Minarets: What They Are and How They Work and Inside the Design Logic of Ottoman Pencil Minarets.
Minarets and Domes: Engineering Moves
Domes and the Weight They Carry
The prayer hall holds three domes. The central span is widest, its drum pushing thrust through squinches and pendentives into piers thicker than most rooms. The flanking domes step the load down into side aisles, distributing weight so the hall reads as one continuous field. From the outside the mass looks calm because the load paths are disciplined. This is structural choreography, not ornament.
Stone as Climate and Sound Control
Red sandstone does more than give color. Its thermal mass slows the heat cycle of Lahore’s summers, holding interiors cooler by day and releasing warmth at night. The same bulk manages acoustics: vaults carry voice evenly across the hall without echo drowning recitation. What looks like mass for its own sake is material intelligence. White marble works as a counterpoint, marking ribs, cornices, and crowns where light strikes hardest.
Details at Close Range
From distance, planes read plain and massive. At human scale, joints are tight, tool marks fine, and polish subtle. Later repairs show by hue and grain rather than being disguised. The mosque does not erase age. It reads it as part of the record, a kind of honesty rare in monumental architecture.
FIELD PICK: For clear case studies on dome and pier strategies in related traditions, The Age of Sinan helps connect structural choice with urban presence.
Badshahi Mosque, Lahore: View on Google Maps
Plan, Axis, and Procession
The Raised Platform
The platform sets the rules. Twenty two steps lift the precinct above street grade so the first view is horizon and sky, not market noise. From that height, the courtyard reads as one field and the prayer hall sits with authority on the west edge.
The Eid Courtyard

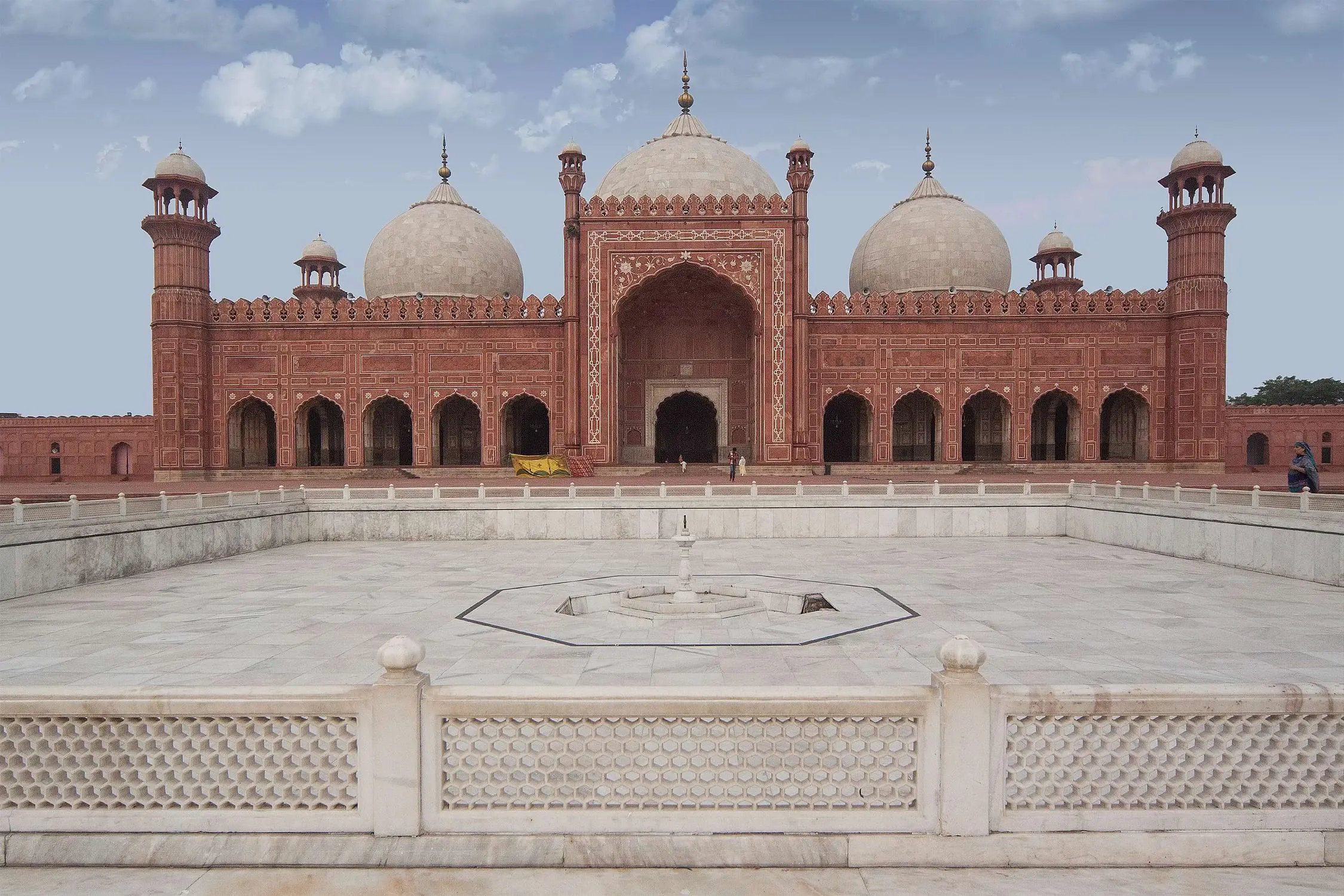

The sahn is sized for a city. Lines of prayer read straight across stone. The paving joints act like guides, not decoration. For the courtyard’s role in Islamic planning, see Courtyards “Sahn” in Islamic Architecture.
The Fort Axis
The main gate frames a direct line to the Alamgiri Gate. Hazuri Bagh becomes the stage between them. Movement is simple on purpose. No side routes steal attention. Arches at the hall reinforce that pull. For arch behavior and sightlines, compare Arches in Islamic Architecture: History, Design, and Global Influence.
Surfaces, Ornament, and Script
Red Stone, White Lines

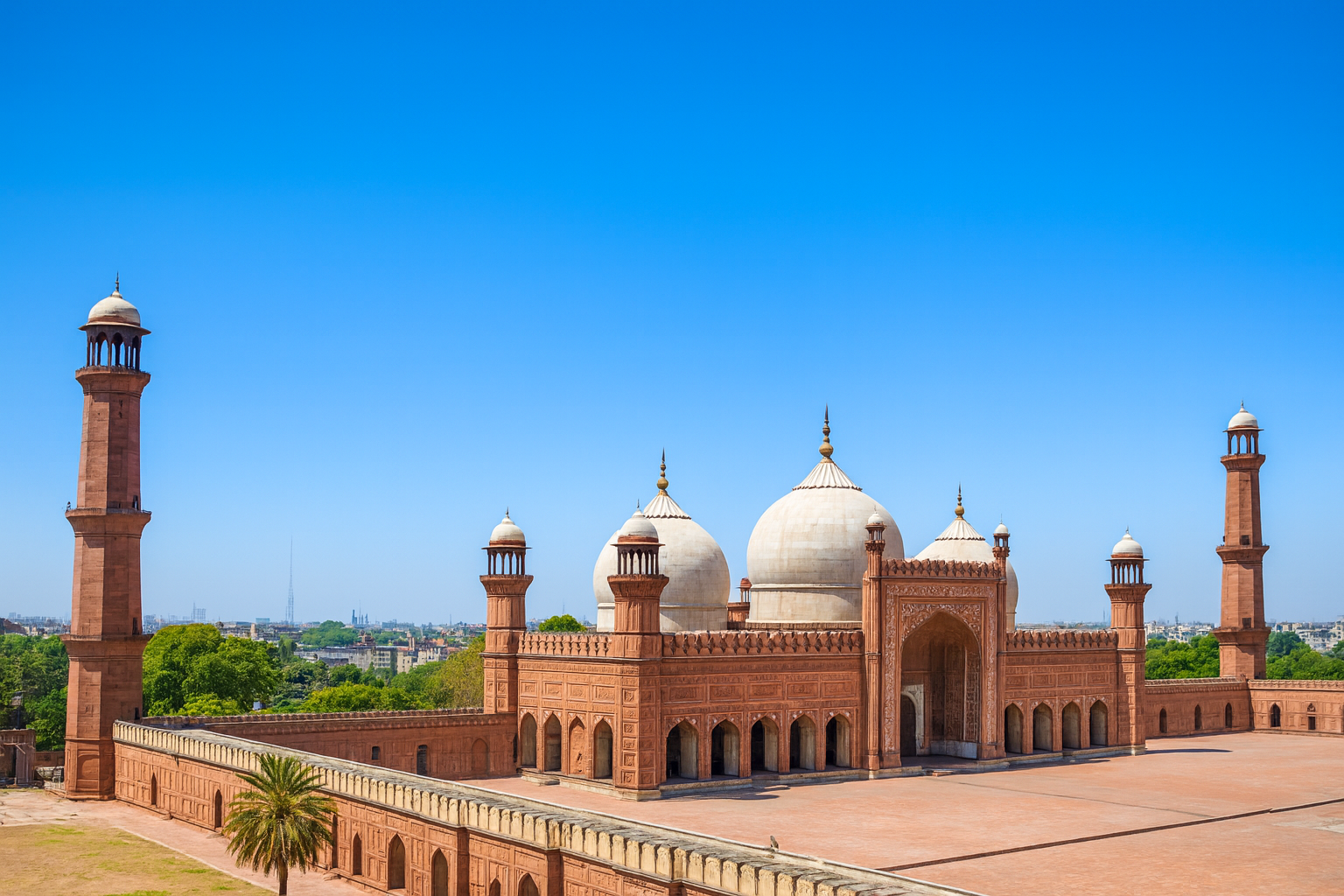

Red sandstone carries the mass. White marble draws the eye to the points that matter—borders, cartouches, cornice bands, and dome ribs. From a distance, the walls read as plain fields. Up close, recessed panels, tight joints, and fine tooling keep the planes alive under Lahore’s glare.
Geometry That Guides
Patterns concentrate where movement slows—spandrels, arch frames, and thresholds. Grids are cut to fit arch widths so the geometry feels calm, not busy. Ornament works like a guide, pulling attention along the axis instead of scattering it. For pattern logic across regions, see Islamic Geometric Patterns: Clean, Sharp, and Still Useful.
Inlay As Structure For The Eye
Marble inlay is not surface wallpaper. It frames thresholds, caps base courses, and marks the springing of arches. These bright lines diagram the load path so the façade reads calm at full scale. For parallels across media and regions, compare Geometric Patterns in Islamic and Arabic Art.
Script Where Sound Meets Stone
Calligraphy runs just above reach at portals and across the main iwan. Bands track the points where voices rise and fall, binding acoustics to text. Walls divide into two fields: plain stone below and a ribbon of script above. This spacing lets sound travel clean while fixing scale in Qur’anic verse.
FIELD PICK: For a deeper look at why proportion and restraint last longer than excess, Beauty and Islam: Aesthetics in Islamic Art and Architecture makes the case clearly.
Climate, Acoustics, and Use
Stone That Times The Day
Thermal mass sets the pace. Thick sandstone tempers heat by day and releases it at night. The courtyard is hot at noon and forgiving by evening. The arcades carry shade all day. The plan accepts the climate instead of fighting it with devices.
How Sound Travels
Vaults and shallow domes carry voice across the hall. Piers break echoes without killing projection. The result is even carry for recitation and speech. This is layout and section working together, not gadgets.
Use Patterns That Built The Form
Eid crowds set the courtyard scale. Friday prayer sets the axis. Daily cycles set the shade path under the arcades. These use patterns explain why ornament is restrained and why the main thresholds are oversized. For a broader framework on what successful religious buildings consistently get right, see What Islamic Buildings Get Right Every Time and a wider synthesis in Islamic Architecture: Connecting History, Styles, and Global Impact.
FIELD PICK: Planning and congregational function across regions are laid out clearly in The Mosque: History, Architectural Development & Regional Diversity.
Foundations, Drainage, and Repairs
The Platform That Does The Heavy Lifting
The load path starts before the walls. A deep rubble and lime mortar platform spreads weight into subsoil and evens settlement across the vast courtyard. The raised plinth is structure and civic signal at once. It keeps flood water out, gives the axis height, and stabilizes the four corner towers that lock the plan.
Lime, Brick, and Breathable Joints
Lime mortar lets the fabric move without tearing itself apart. Brick cores and stone faces work together. Joints breathe and release moisture. This is why the envelope survives monsoon cycles without trapped damp. For the design logic that ties form to use and structure, see How Form, Function, and Meaning Shape Islamic Architecture.
Water Has A Route
Edge channels and discreet drops pull rain off the courtyard and away from the foundations. Step nosings and plinth breaks deflect sheet flow. Where later repairs cut these routes, staining and salt blooms give it away. The original scheme preferred gravity and simple slopes over gadgets. For broader structural typologies and where this sits in the larger map of Islamic building, compare the overview in The Core Styles of Islamic Architecture: From Baghdad to Istanbul.
Reading The Repairs
Stone swaps show by grain and hue. Tooling shifts at patch seams. In a few bays, cement-rich mortar from earlier restorations contrasts against the softer lime of the Mughal work. The building does not hide these marks. Age is legible, which helps future conservation.
The Urban Role Beside The Fort
Axis Across Hazuri Bagh
The Badshahi Mosque faces the Alamgiri Gate of the fort. Hazuri Bagh is not just garden but stage, a pressure buffer between power and prayer. The procession is clear—gate to court to hall—with no side paths to dilute the move. That clarity is why even vast crowds read the space without confusion.
Signals In The Skyline
Four minarets operate as beacons. Their height and geometry stack views across the city, pulling attention without relying on heavy ornament. The pairing of fortress and mosque follows a Mughal habit of setting civic power and sacred authority face to face. For Delhi parallels, see Qutub Minar History: From Empire to Icon and Qutub Minar Architecture and History: Everything You Need to Know.
Garden As Crowd Control
Hazuri Bagh absorbs the surge before and after prayer. Lawn and level shifts slow the approach, keeping the sahn clean for straight Eid lines. Terraces and steps train the crowd into order naturally, without fences or barriers. For urban analogs in other capitals where mosques staged civic life, see Islamic Cairo Architecture: What Still Stands and Why.
FIELD PICK: For a broad read on how Islamic cities integrated monuments with street and civic order, The City in the Islamic World gives both case studies and maps.
Interior Sequence and Light
From Gate to Hall
The progression is choreographed. The monumental gate lifts the visitor onto the plinth, the courtyard resets scale, and the prayer hall closes the axis. Each stage reduces distraction and sharpens focus. The sequence is less decoration and more spatial editing.
Light As Material
Sun cuts the courtyard into bands. Arcades frame shade as corridors. Inside the prayer hall, small high windows and the domes control light as pools rather than floods. Contrast makes the marble inlay stand out against red stone without overloading the eye. For a survey of how form and meaning meet in Islamic building, see How Form, Function, and Meaning Shape Islamic Architecture.
Echo And Sight
The same vaults that push loads down also spread sound evenly. Piers divide echo but keep voice projection. This duality of sight and sound explains the proportion of arches and the height of the central iwan. For a broader sweep of structural form across the tradition, see The Core Styles of Islamic Architecture: From Baghdad to Istanbul.
Craft, Tools, and Labor
Stone At Human Scale
Every block shows a hand. Chisel lines, lifted faces, and clamp scars remain legible. Craftsmen relied on measured repetition rather than machine precision. The red sandstone was cut in regular beds but adjusted by eye and hand at the joint.
Tools Of The Yard
Iron chisels, wooden scaffolds, lime mixing pits, and pulley lifts were the main kit. Slots in the walls still show where scaffold beams locked in. Traces of these working methods remain at minaret shafts and under arcade vaults. For parallels in other monuments of scale, compare The Ahmad Ibn Tulun Mosque: An Architect’s Insight Into History, Faith, and Design.
Organizing The Workforce
The build needed more than craftsmen. Quarry teams, lime burners, mortar mixers, and transport lines all worked in rotation. The short timeline of 1671–1673 points to a tightly managed labor force. For a wider view of how monumental projects across Islamic lands relied on complex organization, see Technological Advancement and Innovation in Islamic Architecture: From Ancient to Modern.
FIELD PICK: To follow the human side of craft and construction, Yasmeen Lari: Architecture for the Future links present-day practice back to traditions of labor and material care.
Symbolism and Imperial Message
Power In Stone
The Badshahi Mosque was more than prayer space. Built under Aurangzeb between 1671 and 1673, it projected the Mughal state’s authority. Mass, scale, and the direct axis with the fort framed worship as part of imperial presence. The mosque announced stability to a frontier region and reminded subjects of the emperor’s role as defender of faith. For context on how mosques transmit political weight, see Islam and Architecture.
Geometry As Language
The courtyard’s size matched the idea of an Eidgah, gathering not just the faithful but the city itself. The restrained ornament let proportion and emptiness carry meaning. Discipline itself became the message: an empire with no need for excess, only clarity. For the larger discussion on what Islamic buildings consistently communicate, see What Islamic Buildings Get Right Every Time.
Inscription As Seal
Calligraphic bands placed above reach mark thresholds and domes. They seal the structure with Qur’anic text, reminding users that stone and word work together. Placement follows ritual points of sound, binding architecture to voice. This makes the mosque both physical frame and script carrier.
Later History and Restoration
Sikh And British Interventions
Use changed. Under Sikh control the court held horses and stores. Under the British the perimetral hujras were removed and open dalans installed to break enclosure. These moves are still visible in joint lines and mismatched stone.
Twentieth Century Repairs
Restoration returned continuity without pretending nothing happened. Lime mortars came back. Stone swaps stayed readable by hue and grain. The site today is a working palimpsest rather than a reset.
How To Read The Layers
Tooling changes mark patch seams. Cement-rich joints from early modern work sit harder and brighter than Mughal lime. Staining patterns show where historic drainage routes were cut and later re-opened. For common questions that come up when reading historic fabric, see Islamic Architecture FAQs. For a larger synthesis of periods and methods, see Islamic Architecture: Connecting History, Styles, and Global Impact.
FIELD PICK: For the aesthetics behind careful restoration choices, Beauty and Islam: Aesthetics in Islamic Art and Architecture clarifies why restraint matters.
Comparisons to Other Great Mosques
Ottoman Precision
When set against Sinan’s works in Istanbul, such as the Süleymaniye, differences are sharp. The Ottoman mosques layered ornament with structural clarity. The Badshahi Masjid kept ornament minimal and let mass dominate. For Istanbul’s reference point, see Süleymaniye Mosque Architecture: The Project Sinan Got Perfect.
Blue Mosque Versus Red Stone
The Blue Mosque in Istanbul surrounds worshippers with tile and pattern. Lahore’s mosque holds them in open red planes. Both rely on domes and minarets, but the expression shifts from surface richness to material discipline. For background, see History of the Blue Mosque: From Its Creation to Modern Times and The Blue Mosque: History and Architecture of Sultan Ahmed Mosque.
Cairo And Beyond
In Cairo, the Ibn Tulun Mosque used brick and plaster with arcades circling a vast court. In Lahore, the Mughal builders scaled up stone and marble for a harsher climate and a statement of power. Both share reliance on courtyard and axis. For a detailed study, see The Ahmad Ibn Tulun Mosque: An Architect’s Insight Into History, Faith, and Design and the broader urban context of Islamic Architecture in Egypt: Mosques, Minarets, and Madrasas.
FIELD PICK: To frame these comparisons globally, The Architecture of the Islamic World gathers regional case studies that make differences and continuities clear.
FAQ
When was the Badshahi Mosque built?
Construction began in 1671 under Emperor Aurangzeb and was completed in 1673. The speed of completion was possible through a standardized kit of parts and disciplined Mughal workshops.
Why is the courtyard so large?
It was scaled for Eid gatherings at city level, holding over one hundred thousand worshippers. The sahn works as a prayer field and thermal buffer. For courtyard roles in Islamic planning, see Courtyards “Sahn” in Islamic Architecture.
What materials were used?
Red sandstone provides mass and durability. White marble highlights domes, ribs, and inlay. Brick and lime mortar form the breathable core. For parallels in other Mughal and Ottoman monuments, see The Core Styles of Islamic Architecture: From Baghdad to Istanbul.
How do the domes stand without modern reinforcement?
The geometry carries the weight. Squinches and pendentives shift thrust from dome shells into massive piers, then into lime and rubble beds. The load path is disciplined rather than improvised.
What changed under Sikh and British rule?
During Sikh control the mosque became a garrison. Under the British, peripheral hujras were demolished and replaced with open dalans. These layers are still visible in stone joints and mismatched masonry. For broader context, see Islamic Architecture FAQs.
How does it compare to other Islamic capitals?
The fort–mosque pairing mirrors traditions from Cairo to Delhi where civic and sacred authority faced each other. For Delhi comparisons, see Qutub Minar History: From Empire to Icon.
Can visitors access all areas today?
The courtyard, prayer hall, and steps are accessible. Some roof areas and service spaces remain restricted. Restoration campaigns in the 20th century opened most of the enclosure back to prayer and tourism.
What is the best time of day to see the mosque?
Morning light emphasizes sandstone depth. Late afternoon shows the marble ribs glowing against shadow. The contrast is strongest in winter when the sun is low. For a wider frame on how light works across Islamic monuments, see How Form, Function, and Meaning Shape Islamic Architecture.
How does the mosque handle monsoon rain?
Drainage channels run along plinth edges. Subtle slopes push water off the courtyard. Repairs where these were cut still show salt stains, making the original intent legible. For structural logic in climate, compare Islamic Architecture: Connecting History, Styles, and Global Impact.
Did earthquakes ever damage the mosque?
The heavy lime-rubble platform and wide piers absorb shock better than brittle modern concrete. Minor cracking has been recorded but the mass absorbs lateral thrust. Restoration filled joints without changing the load system.
Is the Badshahi Mosque larger than the Jama Masjid in Delhi?
Both are monumental Mughal mosques. The Jama Masjid was earlier (Shah Jahan), heavier on surface decoration. The Badshahi Mosque is later (Aurangzeb), heavier on scale and urban placement. Lahore’s sahn is among the largest in the world. For comparative reading, see What Islamic Buildings Get Right Every Time.
