The Essentials of Structural Technology: A Guide for Future Architects and Engineers

Learn the essentials of structural technology in architecture. Explore concepts of loads, materials, sustainability, and new innovations in building design."

Structural Technology Explained

In architecture and structural engineering, understanding the foundations of structural technology is critical for creating safe, functional, and aesthetically pleasing buildings.

I've spent years working as a structural engineer and guiding students through the complexities of architectural design. This article covers practical knowledge on load management, material properties, structural stability, and innovative technologies, all essential for aspiring architects and engineers.

An in-depth guide to structural technology for architecture students, covering loads, materials, sustainability, and advancements in structural design.

Through real-world examples, tips, and insights from my experiences, I'll explain how different forces impact structures and how various materials contribute to stability and resilience. We'll cover everything from concepts of loads to sustainability for a comprehensive understanding of structural systems.

Let’s dive into how each element works together to ensure a building’s longevity, safety, and environmental harmony.

1. Structural Framework and Stability

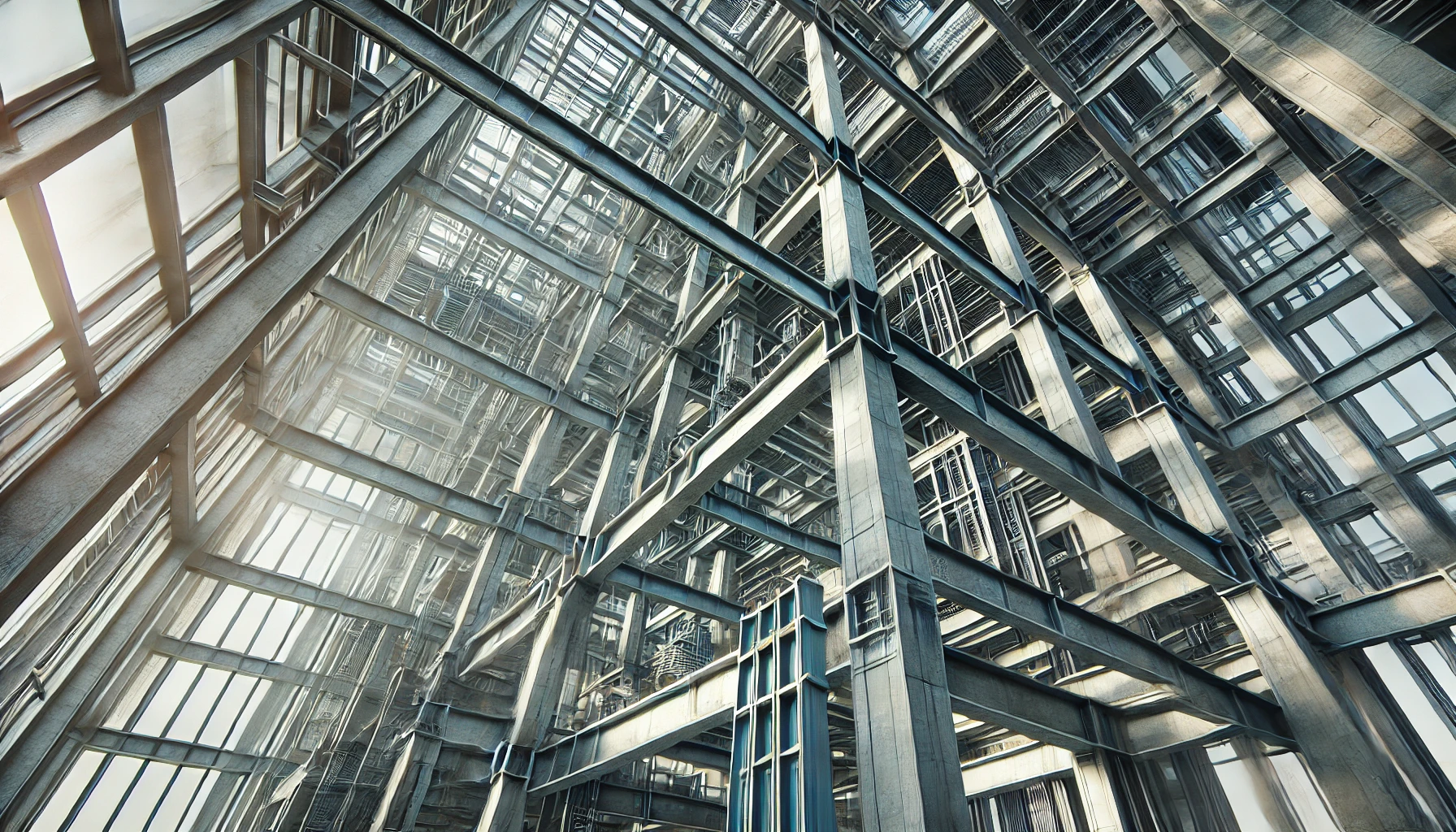

a structural example in architecture, showcasing the detailed framework and materials used

Architectural Stability and Innovation: Key Principles of Structural Technology

The framework of a building is its backbone, designed to support and stabilize. Elements such as beams, columns, and walls create a secure structure capable of withstanding environmental forces and the weight of materials. This framework distributes loads, allowing structures to endure and function safely.

Key Elements of Stability:

  • Beams and Columns: These components form the primary support system, distributing loads evenly.
  • Walls: Load-bearing walls provide support, while non-load-bearing walls add flexibility in design.

Core Concepts of Structural Technology in Architecture: Expanded Insights

Structural Framework and Stability

The structural framework is the backbone of any building, ensuring stability, safety, and longevity. It serves to distribute loads across various elements, balancing forces and providing resilience. Key components of this framework include beams, columns, walls, and slabs, which must work together seamlessly to support both the weight of the building and additional loads, such as occupants, furniture, and environmental forces like wind and snow.

Key Elements in the Structural Framework

  1. Beams: These horizontal elements distribute weight across spans between columns or walls. Beams help transfer loads downward through columns to the foundation, managing forces without compromising structural stability. In residential buildings, beams are often integrated into ceilings or floors, while in high-rise structures, steel or reinforced concrete beams add significant support.
    • Example: In the construction of high-rise buildings, steel I-beams are frequently used to distribute load over wider spans, allowing for more open interior spaces and fewer support columns.
  2. Columns: Vertical elements that bear the building’s weight and transfer loads from beams to the foundation. Columns can vary in size and material depending on the building’s design and load requirements. For example, concrete columns are common in multi-story buildings due to their compressive strength.
    • Example: In skyscrapers, steel-reinforced concrete columns support the structure vertically, while special reinforcement techniques, like bundled tubes, add lateral stability against wind and seismic forces.
  3. Walls: Walls can be either load-bearing or non-load-bearing. Load-bearing walls support the structure’s weight, while non-load-bearing walls are often used as partitions. In modern design, load-bearing walls are strategically minimized to allow open floor plans, with beams and columns taking on the main structural responsibilities.
    • Interesting Fact: In ancient construction, load-bearing walls were massive and took up significant space. Today, advanced materials and techniques allow for thinner walls that still provide robust support, freeing up valuable floor area.

Stability and Safety in Structural Design

Structural stability is a balance between supporting loads and resisting environmental forces. Engineers consider various factors, such as load paths, material strength, and building geometry, to prevent structural failure. For instance, in earthquake-prone areas, flexible materials and designs that allow some movement help buildings absorb shock rather than break under stress.

Tips for Ensuring Structural Stability

  1. Load Path Planning: Create a clear load path from the roof to the foundation to distribute forces evenly across the structure. This minimizes weak points and improves the building’s resilience against dynamic loads like wind and earthquakes.
    • Tip: If designing a multi-story building, think about how weight and force are managed across each floor. A clear load path helps maintain stability in all conditions.
  2. Material Selection: Different materials offer unique strengths and weaknesses. Understanding these characteristics allows architects and engineers to choose the right material for each structural component.
    • Example: For a bridge spanning long distances, engineers often select steel because of its tensile strength, which helps manage the stress from dynamic forces like wind and traffic.
  3. Bracing and Reinforcement: Adding bracing to columns and beams can greatly enhance a structure’s stability. Techniques like cross-bracing or shear walls can help resist lateral forces, particularly in areas prone to high winds or earthquakes.
    • Interesting Fact: The Burj Khalifa in Dubai, the world’s tallest building, uses a “Y” shape with reinforced concrete for added stability, allowing it to withstand extreme wind forces at great heights.

Ensuring Longevity Through Structural Stability

  1. Foundational Design: The foundation is the anchor of the entire structure. Engineers assess soil quality, moisture levels, and environmental factors to determine the appropriate type of foundation, such as shallow or deep foundations, for different buildings.
    • Example: For a skyscraper, a deep pile foundation might be chosen to anchor the building to stable soil layers far beneath the surface, preventing settlement and structural issues.
  2. Regular Maintenance: Regular inspections and maintenance are crucial to ensure a building’s stability over time. Even small cracks or signs of wear in beams and columns should be promptly addressed to prevent larger structural issues.
  3. Sustainability in Design: Sustainable design includes selecting materials with minimal environmental impact and utilizing construction practices that conserve resources. Choosing renewable materials like sustainably sourced wood or low-carbon concrete can add both longevity and environmental responsibility to a building’s design.

Key Takeaways for Architecture Students

  1. Understanding Load Types: Recognizing the impact of dead loads, live loads, and environmental loads is essential for ensuring a building’s stability and safety. A sound understanding of these load types can help you predict how forces affect different parts of a structure.
  2. Choosing the Right Materials: Material choice affects every aspect of structural design. Knowing the strengths, weaknesses, and sustainable options for each material will enable you to make informed decisions.
  3. Designing for Stability: Stability isn’t just about strength; it’s also about balancing forces and distributing loads effectively. Use techniques like cross-bracing, shear walls, and reinforced concrete to prevent lateral movement and maintain structural integrity.
  4. The Importance of Sustainability: Emphasize sustainable practices and materials in your designs. By considering a building’s environmental footprint, you can create spaces that are both resilient and responsible, aligning with green building standards like LEED.
  • What is the purpose of the structural framework in a building?
    • The structural framework supports the building’s weight and stabilizes it against environmental forces, ensuring safety and durability.
  • What are the main components of a structural framework?
    • Key components include beams, columns, walls, and the foundation, which work together to distribute loads.

2. Principles of Structural Design

Understanding structural design principles is crucial for architects and engineers, as they ensure that buildings stand strong under various forces and environmental conditions. By mastering how forces act on different structural elements, architects can create designs that are both resilient and aesthetically pleasing.

Core Principles of Structural Design

  1. Load Distribution: Every structure needs to handle different types of loads, including dead loads (permanent static weight), live loads (temporary, movable weight like people or furniture), and environmental loads (wind, seismic, snow, etc.). Effective load distribution ensures that these forces travel smoothly through the structure without creating stress points that could lead to failure.
  2. Structural Geometry: The shape of a structure significantly impacts its stability. For instance, triangular shapes are naturally stable and often used in trusses, while arches distribute weight evenly down into the ground. Avoiding shapes that produce uneven load distribution reduces stress points and prolongs a building's life.
  3. Material Properties: Each material has its unique properties and behavior under loads. Steel, for instance, handles tension well, while concrete is better at bearing compression. By selecting materials based on their properties and the specific forces they will face, architects can ensure that each part of the structure performs optimally.
  4. Connection Points: Where elements like beams and columns connect is critical in managing load paths. Good design involves reinforcing these joints to handle stress concentrations, especially in areas subjected to seismic forces.

Practical Tips for Structural Design

  • Balance Forces: When designing, balance out loads across the structure. Avoid uneven load distribution, which can lead to localized stress and potential failure.
  • Use Reinforcements Strategically: Reinforce materials where stress is highest—like adding steel bars in concrete where tension will be concentrated.
  • Consider Environmental Conditions: In areas prone to seismic activity or strong winds, prioritize structural shapes and materials known for resilience in those conditions, such as reinforced concrete in earthquake-prone regions.
  • Think of Redundancy: Having multiple paths for forces to travel improves a structure’s resilience in case of an element’s failure.

Interesting Fact

Did you know? Ancient Roman architects frequently used arches and domes not only for their beauty but also because these shapes naturally distribute weight to minimize stress points.

Related:

3. Understanding How Buildings Work

Understanding how buildings work goes far beyond aesthetics or spatial layout; it’s about anticipating how they will perform over time and under varying conditions.

Architectural technology gives architects and engineers the tools and knowledge to predict, address, and prevent issues related to loads, materials, and environmental stresses, thus safeguarding structural integrity.

Core Concepts of Building Functionality

  1. Load Distribution: Every building experiences different types of loads (weight forces) that act on its structure. Proper load distribution ensures that these forces are transferred from one component to another safely, eventually reaching the foundation. Load-bearing walls, columns, and beams play a critical role in supporting and distributing these loads effectively.
    • Example: In skyscrapers, load distribution is essential due to their height and exposure to wind. Engineers often use a “tube” structural system, where external walls handle both wind and gravity loads, reducing internal structural demands and maximizing usable space.
  2. Thermal Performance: Buildings respond to temperature changes, which can affect materials and structural performance. Variations in temperature can lead to thermal expansion and contraction, potentially causing cracks or material fatigue if not managed well.
    • Tip: Use materials like reinforced concrete or steel, which handle expansion better, in environments with significant temperature fluctuations.
  3. Water and Moisture Control: Water is one of the most significant natural elements that affect buildings, as moisture intrusion can lead to structural damage, mold growth, and material decay. Techniques like waterproof membranes, drainage layers, and vapour barriers are essential to protect buildings from moisture infiltration.
    • Example: Coastal buildings often face higher risks of corrosion from salty air and require more robust waterproofing and protective finishes.
  4. Environmental Load Response: Buildings are exposed to varying environmental loads—such as wind, snow, and seismic activity—that differ greatly depending on location. Understanding a building’s environment helps architects and engineers design with appropriate structural resilience.
    • Case in Point: In earthquake-prone areas like California, architects design with flexible connections and materials that absorb and dissipate seismic energy. For instance, “base isolators” allow buildings to move independently from the ground, reducing earthquake damage.
  5. Material Behavior: Each building material reacts differently to loads and environmental stresses. Knowing how materials behave under specific conditions is key for selecting the right materials for structural and environmental demands.
    • Example: Steel, known for its tensile strength, is often used in high-rise buildings for its ability to support weight without buckling under tension. In contrast, concrete is ideal for compressive loads and is commonly used in the foundations and lower floors of buildings.

Practical Application: How Understanding Building Functionality Ensures Safety

Having a deep understanding of how buildings respond to these factors allows architects and engineers to:

  • Preemptively Address Weaknesses: By knowing the load paths and environmental influences on a structure, architects can address weak points in the design phase, preventing costly repairs or reinforcements later.
  • Enhance Longevity and Durability: Choosing materials and designs that handle specific environmental conditions well helps ensure the building remains safe and functional over its intended lifespan.
  • Optimize Maintenance Strategies: Awareness of potential problem areas, such as where moisture may collect or where thermal stress might be high, allows for targeted maintenance, extending the building’s life and reducing maintenance costs.

Interesting Fact

In ancient Rome, builders used volcanic ash in their concrete, creating a material that was both resistant to cracks and durable in damp conditions. Some of these structures, like the Pantheon, still stand today due to this early understanding of environmental resilience and material performance.

Key Takeaway

Understanding the mechanics and environmental interactions of buildings equips architects with the foresight to design resilient, safe, and enduring structures. This knowledge enables architects and engineers to create buildings that not only meet the demands of function and beauty but also withstand the test of time and the forces of nature.

Related:

4. Basic Concepts of Loads and Forces

Architects and engineers must understand loads—the forces acting on a structure. These include:

  • Dead Loads: The permanent weight of the structure, such as walls, floors, and roofs.
  • Live Loads: Temporary forces, like people, furniture, or vehicles.
  • Environmental Loads: Wind, snow, or seismic activity that varies with weather or location.

For architects and engineers, understanding loads—the forces acting on a building—is essential for creating structures that can withstand the various stresses they'll encounter. Let's break down the main types of loads and look at why each is critical in structural design.

Types of Loads

  1. Dead Loads:
    These are the permanent forces due to the building's weight itself, including its structure, floors, walls, and fixed equipment. Dead loads are static and predictable, which means they remain constant over time.
    • Example: Think of a library. Each floor must support not only its structural weight but also the weight of the shelves, which are part of the permanent fixtures. Understanding dead loads helps engineers decide on the thickness and reinforcement needed for floors and supports.
  2. Live Loads:
    Live loads are temporary and change depending on the building's use. These include people, furniture, vehicles, and equipment, and can vary based on occupancy or the function of the space.
    • Example: In a conference hall, the live load changes based on the number of attendees and their movement. Seating areas, stages, and open floor spaces are all planned with maximum anticipated live loads in mind.
    • Tip: Always factor in potential overcrowding scenarios. I once worked on a venue where extra reinforcements were added to accommodate live loads during large events, preventing structural strain during high occupancy.
  3. Environmental Loads:
    These loads come from natural forces, such as wind, snow, rain, and seismic activity. They vary widely based on climate, geography, and environmental conditions. Designing for environmental loads is especially important in locations prone to natural events, like earthquakes or hurricanes.
    • Example: For a project in a coastal area, we included wind bracing to counteract the high winds from ocean storms. In earthquake-prone regions, adding flexible materials and joints allows structures to absorb and dissipate seismic forces safely.
    • Interesting Fact: In regions with significant snow loads, such as mountain areas, roofs are often pitched steeply to prevent snow buildup, reducing the risk of collapse from heavy snowfall.

Practical Application in Structural Design

In regions with high seismic risk, environmental loads often dictate design choices. For instance, buildings in areas with frequent earthquakes require additional seismic bracing or base isolators to allow the structure to move independently of the ground, absorbing shocks without collapsing.

Example Project: In a recent project in California, we used base isolators for a medical facility. These isolators acted as a buffer between the building and its foundation, allowing the ground to shift during an earthquake while the structure stayed relatively still. Without these design choices, the building would be at a greater risk of significant structural damage.

Tips for Working with Loads

  • Factor in Redundancy: In areas with high environmental risks, multiple load-bearing paths increase the building's ability to remain stable if one element fails.
  • Regularly Reevaluate Loads: Over time, buildings may undergo functional changes. A residential building converted into office space, for example, will have different live load requirements, so structural adjustments may be necessary.
  • Consider Material Flexibility: In earthquake zones, materials like steel, which can bend without breaking, help absorb seismic forces.

Key Takeaway

Understanding the types of loads and how they impact structures helps prevent costly structural failures. By integrating load considerations into early design stages, architects and engineers can create safe, resilient buildings that can handle daily use and withstand extreme conditions.

5. Structural Systems: Load-Bearing and Non-Load-Bearing

Structural systems are fundamental to managing how a building stands. Understanding load-bearing and non-load-bearing systems allows designers to choose the best structure based on aesthetics, safety, and functional needs.

Types of Systems:

  • Load-Bearing Systems: Elements like walls or columns support the building’s weight.
  • Non-Load-Bearing Systems: These provide flexibility in design without holding structural weight.

Structural systems are at the core of how buildings handle loads and maintain stability. Choosing the appropriate system depends on various factors such as the building’s purpose, aesthetic goals, and structural needs. Understanding load-bearing and non-load-bearing systems is fundamental for creating safe, functional, and flexible designs that align with architectural objectives.

Types of Structural Systems:

  1. Load-Bearing Systems
    • Description: In a load-bearing system, structural elements like walls or columns support the building’s overall weight, distributing it to the foundation. This setup is common in older masonry buildings where exterior walls double as load-bearing walls.
    • Example: Think of a classic stone building where thick exterior walls bear the roof’s weight and stabilize the entire structure.
    • Tip: Load-bearing systems limit flexibility since walls cannot be easily moved or removed. For multi-story buildings, strategic planning is crucial to avoid excessive loads on lower floors.
    • Fact: Some of the world’s oldest buildings, like the Great Pyramids, use load-bearing principles to stand without additional reinforcement.
  2. Non-Load-Bearing Systems
    • Description: Non-load-bearing walls and partitions serve aesthetic or functional purposes but don’t support structural weight. Instead, they rely on a separate framework of columns and beams for stability.
    • Example: Modern skyscrapers use a steel or concrete skeleton to support the building, allowing for glass or lightweight walls that only define space rather than carry weight.
    • Tip: Non-load-bearing systems provide greater design flexibility, making them ideal for open-plan interiors and adaptable layouts. They allow architects to create versatile spaces with movable walls or reconfigurable rooms.
    • Fact: Non-load-bearing walls make up the majority of interior walls in commercial buildings, allowing for easy renovations and space modifications.

Key Takeaways and Practical Advice

  • Choosing a Structural System: The choice between load-bearing and non-load-bearing depends on the building type. Residential homes often use load-bearing walls for simplicity, whereas commercial or multi-story buildings lean on non-load-bearing systems for flexibility.
  • Structural Integrity and Cost: Load-bearing systems can be more economical for low-rise buildings due to lower material costs. However, non-load-bearing systems, despite initial costs, often save on long-term modifications.

Example from Experience:

In a recent project, I worked on a historic brick building renovation. Since the original structure used load-bearing walls, modifications were tricky and required adding reinforcements. However, in an adjacent modern building with non-load-bearing walls, we could easily create an open floor plan and introduce movable partitions, providing greater flexibility and function.

Additional Tips

  • Future Proofing: For spaces that might change over time, non-load-bearing systems offer adaptability without compromising the building’s structural integrity.
  • Mixed-Use Approaches: Sometimes, a hybrid system is beneficial—load-bearing walls for essential support and non-load-bearing interior walls for flexible layouts.

Interesting Fact

In Gothic cathedrals, architects employed flying buttresses—external supports that absorbed weight from load-bearing walls, allowing taller, more open structures with larger windows. This innovation paved the way for lighter, more flexible designs and marked an evolution in load-bearing concepts.

6. Load Paths and Force Transfer

Load paths show how forces travel through a structure, from the roof to the foundation, ensuring stability. Elements like beams, slabs, and walls work together to manage and distribute forces, preventing weak points that could compromise the structure.

Load paths are crucial in structural engineering, showing how forces—like weight and environmental loads—move through a building's structure from top to bottom.

By understanding load paths, architects and engineers can design buildings that handle these forces efficiently, transferring loads safely from the roof down to the foundation without creating weak points.

Each structural element, like beams, slabs, walls, and columns, plays a role in managing these forces to ensure the structure remains stable and secure.

Key Components in Load Transfer

  1. Beams and Slabs
    • Role: Beams carry horizontal loads and transfer them to columns, which then direct these loads downward. Slabs distribute loads across their surfaces, transferring weight to beams or walls.
    • Example: In multi-story buildings, slabs often act as floor surfaces and load distributors, transferring weight to the beams and columns.
    • Practical Tip: Consider using thicker slabs or reinforced beams in high-traffic areas to handle concentrated loads, such as in lobbies or atriums.
  2. Columns and Walls
    • Role: Columns and load-bearing walls support vertical loads, guiding forces from the roof or floors down to the foundation.
    • Example: In skyscrapers, columns carry significant vertical loads, requiring a design that allows for effective load transfer to handle heavy materials and external forces like wind.
    • Interesting Fact: Wind forces can create lateral loads, especially in tall buildings. Engineers often incorporate shear walls or bracing systems to handle these horizontal forces, directing them safely to the ground.
  3. Foundation and Ground Transfer
    • Role: The foundation is the final point in the load path, transferring all structural forces to the ground. A stable foundation is critical in distributing weight evenly and adapting to different soil conditions.
    • Example: In areas with soft soil, pile foundations or deep footings might be used to reach stable ground layers.
    • Tip: Always consider the local soil type and environmental conditions to determine the most stable foundation design. An improper foundation design can lead to structural settlement issues over time.

Practical Example: Load Paths in High-Rise Buildings

When designing high-rise buildings, effective load transfer is crucial to withstand wind and seismic forces. For instance, when I worked on a high-rise project, wind forces created significant lateral loads that required careful planning to prevent sway. By clearly defining load paths through shear walls, beams, and a solid foundation, we ensured that the building could handle these lateral loads, preventing excessive movement during storms or high winds.

Tips for Effective Load Path Design

  • Map Load Paths Early: Start with a clear diagram of how loads will flow through your building. This approach helps pinpoint potential weak points or areas needing reinforcement.
  • Use Redundant Load Paths: Adding multiple paths for load transfer (like extra beams or walls) can increase a building’s resilience against unexpected loads or damage to a particular element.
  • Test for Environmental Loads: For buildings in earthquake or high-wind zones, simulate environmental conditions to understand how loads will shift and adjust the load paths accordingly.

Interesting Fact

In earthquake engineering, the concept of base isolation is often used to separate the building's structure from the foundation, allowing controlled movement during an earthquake. This advanced load path technique reduces force transfer from the ground to the building, making structures more resilient to seismic forces.

7. Structural Materials: Traditional and Modern Choices

The choice of structural materials is crucial in structural systems. Traditional materials like timber, masonry, and steel have proven reliable for centuries, while modern materials such as reinforced concrete and composites bring new strength and flexibility to innovative designs.

Material Properties:

  • Timber: Light, sustainable, and relatively strong, great for residential construction.
  • Steel: High tensile strength and flexibility, ideal for skyscrapers and bridges.
  • Reinforced Concrete: Combines compressive and tensile strength, suitable for a wide range of structures.

The selection of structural materials is central to a building's performance, longevity, and environmental impact. Material choice influences everything from load-bearing capacity to aesthetic appeal and even sustainability. Over centuries, both traditional and modern materials have proven their value in architecture, each bringing unique strengths and limitations. Here’s an overview of the most widely used materials in structural systems, along with insights into their properties and practical applications.

Key Structural Materials and Their Properties

  1. Timber
    • Properties: Timber is lightweight, strong for its weight, renewable, and relatively easy to work with. It’s also sustainable, making it popular in eco-friendly designs.
    • Applications: Timber is commonly used in residential buildings, especially for framing and trusses in low- to mid-rise structures. It’s suitable for areas with mild climates due to its vulnerability to moisture and pests.
    • Example: Timber’s use in traditional Japanese and Scandinavian homes showcases its aesthetic versatility and structural integrity when maintained properly.
    • Practical Tip: Always treat timber with appropriate finishes to prevent damage from moisture, pests, and fire. Consider engineered wood, like laminated veneer lumber (LVL), for added strength and stability in modern applications.
  2. Steel
    • Properties: Known for its high tensile strength and flexibility, steel is resistant to bending and shearing forces, making it ideal for tall buildings, bridges, and industrial structures.
    • Applications: Steel is often the go-to for skyscrapers and large-span structures like bridges and stadiums, thanks to its strength and ductility.
    • Example: The Eiffel Tower is a famous example of structural steel used to achieve height, strength, and visual impact, showcasing steel’s flexibility and durability in large-scale architecture.
    • Practical Tip: Steel requires regular maintenance to prevent rust, especially in humid climates. Opt for corrosion-resistant treatments or use stainless steel where moisture exposure is high.
  3. Masonry
    • Properties: Masonry is durable and strong in compression, making it a solid choice for load-bearing walls. It has excellent thermal mass, helping to regulate indoor temperatures.
    • Applications: Brick, stone, and concrete blocks are commonly used in walls, pillars, and historical buildings, particularly in regions with stable seismic activity.
    • Example: The Great Wall of China illustrates masonry’s durability and load-bearing capacity over time, handling vast compressive forces and environmental exposure.
    • Practical Tip: In seismic zones, masonry buildings should be reinforced with steel or other materials to prevent cracking and collapse during earthquakes.
  4. Reinforced Concrete
    • Properties: Reinforced concrete combines the compressive strength of concrete with the tensile strength of steel, allowing for versatile structural applications. It’s resistant to weather and fire, making it suitable for various environments.
    • Applications: Used in everything from high-rise buildings to bridges, dams, and pavements, reinforced concrete is particularly useful in large structures requiring both strength and durability.
    • Example: The Pantheon in Rome showcases concrete's enduring qualities; despite being unreinforced, it demonstrates how concrete can create monumental, enduring spaces.
    • Practical Tip: Ensure proper curing of concrete to achieve its maximum strength, and consider advanced mixes like high-performance concrete for specialized requirements like reduced permeability and higher durability.
  5. Composite Materials
    • Properties: Composites, like fiber-reinforced polymers (FRP), are lightweight, durable, and resistant to corrosion. They allow architects and engineers to push the boundaries of design.
    • Applications: Composites are used in both retrofitting existing structures and creating complex, lightweight forms in new constructions, such as curved facades or decorative elements.
    • Example: The use of carbon fiber-reinforced polymers in the renovation of the San Francisco-Oakland Bay Bridge reflects how composites can enhance the durability of existing structures.
    • Practical Tip: Use composites where weight savings are critical, like in tall or cantilevered structures. Consider the environmental impacts, as some composites are less eco-friendly due to their production processes.

Tips for Choosing Structural Materials

  • Assess Local Conditions: Material suitability varies with environmental conditions. For instance, timber may require additional treatment in humid regions, while concrete might need reinforcing in seismic areas.
  • Prioritize Sustainability: Opt for eco-friendly materials, like sustainably sourced timber or recycled steel, and consider the life cycle of each material in terms of both durability and environmental impact.
  • Account for Maintenance Needs: Some materials, like steel, require regular maintenance to prevent corrosion. Consider long-term costs and upkeep when selecting materials.

Interesting Fact

The ancient Pantheon’s dome in Rome, made from unreinforced concrete, has withstood nearly 2,000 years. Its success comes from meticulous material selection and a graduated concrete mix, which reduced weight towards the dome's apex, showing how material use can enhance structural longevity.

By understanding the properties and applications of different structural materials, architects and engineers can design buildings that balance strength, aesthetics, and sustainability.

8. Structural Analysis and Design

Structural analysis ensures that a design can withstand expected loads. It involves:

  • Statics and Modeling: Assessing load distribution and resistance.
  • Equilibrium and Stability: Ensuring the building’s ability to remain upright under stress.
  • Internal Forces: Understanding forces like tension, compression, and shear within materials.

Structural analysis is a cornerstone of architectural and engineering design, ensuring that structures can handle the loads and forces they encounter. This process assesses how different elements within a building interact to maintain stability, even under challenging conditions like high winds, heavy snow, or earthquakes. Here’s a breakdown of essential concepts in structural analysis and practical advice for effective application.

Core Concepts of Structural Analysis

  1. Statics and Modeling
    • Definition: Statics examines forces acting on a structure, ensuring it remains balanced without movement. Through modeling, engineers simulate these forces on different components, evaluating how loads are distributed across beams, columns, and walls.
    • Example: When designing a bridge, engineers model the load distribution across the entire span. By analyzing these models, they determine the placement of supports and identify which parts of the bridge will experience the most stress, helping prevent structural failure.
    • Practical Tip: Use structural analysis software to simulate load-bearing scenarios. Many tools provide visual and numerical outputs, making it easier to predict how different forces will impact each structural element.
  2. Equilibrium and Stability
    • Definition: For a structure to be stable, all forces acting on it must be balanced, with every part in equilibrium. Stability focuses on maintaining this balance even when external loads, like wind or seismic forces, act upon the structure.
    • Example: The Leaning Tower of Pisa is a classic case where equilibrium and stability were compromised due to an unstable foundation. Understanding equilibrium principles in structural design ensures buildings can withstand external forces without shifting or collapsing.
    • Practical Tip: Design with redundancy in mind. By creating multiple load paths, you add extra stability to a structure, preventing localized failures from affecting the entire system. This is especially important in earthquake-prone regions.
  3. Internal Forces
    • Definition: Internal forces within materials, like tension, compression, and shear, determine how elements respond under load. Tension stretches materials, compression squeezes them, and shear forces cause sliding between layers.
    • Example: In skyscrapers, steel cables bear tension, while concrete columns handle compression, creating a balanced structure. Understanding these forces helps engineers choose materials that best resist specific stresses in a building.
    • Interesting Fact: The Eiffel Tower’s iron framework primarily resists compressive forces, while its strategic design allows it to sway slightly with the wind, avoiding excessive tension that could lead to cracking.

Practical Advice for Structural Analysis

  • Leverage Technology: Structural analysis software like ETABS, SAP2000, or Autodesk Robot Structural Analysis simplifies complex calculations and provides 3D models of force distribution. Using these tools allows you to visualize potential weak points and reinforces accuracy in load calculations.
  • Consider Material Behavior: Different materials react uniquely to internal forces. Steel, for example, handles tension well, while concrete excels under compression. Understanding material properties and applying them in structural analysis ensures that each part of the design can effectively handle expected loads.
  • Regular Testing and Updates: Building codes and standards evolve based on new research and real-world data. Regularly updating analysis techniques according to the latest building codes enhances safety and ensures compliance with regulations.

Example: Analyzing a High-Rise Building Design

In high-rise construction, effective structural analysis is critical due to the building’s exposure to high wind forces and potential seismic activity. Engineers often:

  • Run simulations to predict wind load impacts on each floor.
  • Examine equilibrium by testing different load distribution patterns, ensuring stability in the face of lateral forces.
  • Evaluate internal forces within steel and concrete components to prevent material fatigue or failure over time.

By applying thorough analysis from the planning stages, engineers create high-rise structures capable of withstanding extreme conditions, ensuring both safety and functionality.

Key Takeaway

Structural analysis is a blend of theory and application, combining knowledge of physics, material science, and modern technology to design resilient structures. Mastering these concepts prepares architects and engineers to create buildings that can stand up to both everyday and extraordinary stresses, maintaining safety, stability, and longevity.

9. Sustainability in Structural Design

Incorporating sustainable practices into structural design is increasingly important. Energy-efficient methods, renewable materials, and eco-friendly construction practices minimize environmental impact.

Sustainable Building Certifications:

  • LEED (Leadership in Energy and Environmental Design): A certification promoting environmentally responsible building practices.
  • Green Building Standards: Established frameworks encouraging the use of sustainable materials and energy-saving techniques.

Sustainability in structural design isn't just a trend—it's becoming a necessity as architects and engineers work to reduce the environmental impact of buildings while enhancing their durability and efficiency. Incorporating sustainable practices, materials, and construction techniques can dramatically reduce energy consumption, cut down on waste, and improve a structure's lifespan. Here’s how sustainability is shaping the future of structural design, along with practical examples.

Core Concepts in Sustainable Structural Design

  1. Energy-Efficient Methods
    • Energy efficiency in structural design focuses on reducing the building's overall energy footprint. This can include optimizing the building orientation for natural sunlight, implementing better insulation, and incorporating renewable energy sources like solar panels.
    • Example: Passive solar design, where buildings are oriented to maximize sunlight during colder months and minimize it during warmer ones, can cut heating and cooling needs by as much as 20%.
  2. Renewable and Recycled Materials
    • Renewable materials like sustainable timber, bamboo, and recycled steel are increasingly replacing more traditional, resource-intensive materials. These materials not only reduce the extraction of new resources but often have lower carbon footprints.
    • Example: In a recent project, we used a blend of sustainable timber and recycled steel, minimizing the environmental impact while achieving excellent structural strength. Timber from certified sources ensures that forests are managed sustainably, reducing deforestation.
  3. Eco-Friendly Construction Practices
    • Eco-friendly construction practices, such as waste reduction, on-site recycling, and energy-efficient machinery, significantly cut down on the environmental footprint of building projects. Techniques like modular construction, where buildings are assembled from pre-made components, also reduce waste and speed up the construction process.
    • Example: A modular construction approach was used for a commercial building project, reducing construction time and on-site waste by about 30%.

Sustainable Building Certifications

  1. LEED (Leadership in Energy and Environmental Design)
    • What it is: LEED is a globally recognized certification that evaluates and encourages sustainable building practices. A LEED-certified building meets specific standards in energy efficiency, indoor environmental quality, and sustainable site development.
    • Benefits: LEED-certified buildings typically have lower operating costs, improved air quality, and higher resale values. They are also attractive for tenants and buyers looking for environmentally responsible properties.
  2. Green Building Standards and Regulations
    • Many countries and regions have established frameworks that encourage sustainable practices in construction and design, setting guidelines for energy-efficient techniques, renewable resources, and eco-friendly designs.
    • Example: The BREEAM (Building Research Establishment Environmental Assessment Method) standard is widely used in Europe to ensure that buildings are environmentally efficient and sustainable. BREEAM-certified buildings focus on low environmental impact, long-term value, and improved well-being for occupants.

Practical Example: A Sustainable Structural Project

In a recent sustainable housing project, we implemented a variety of eco-friendly practices:

  • Material Choice: We selected sustainably sourced timber for the main structure, recycled steel for reinforcements, and bamboo for specific interior elements. This combination minimized our reliance on non-renewable materials and reduced carbon emissions.
  • Energy Efficiency: Solar panels and advanced insulation were integrated to lower energy consumption, while passive design principles helped maintain comfortable interior temperatures year-round.
  • Water Conservation: We included rainwater harvesting systems to support landscaping needs, reducing water waste and dependency on municipal supplies.

This project not only met the client's sustainability goals but also qualified for LEED certification, providing long-term savings and environmental benefits.

Key Takeaway

Integrating sustainable practices into structural design enhances longevity, reduces environmental impact, and aligns with modern regulations. For architects and engineers, adopting energy-efficient methods, using renewable resources, and following eco-friendly construction practices isn’t just good for the planet—it’s an investment in a building's future resilience and appeal. Sustainable structural design is a valuable approach that benefits both the environment and the community.

10. Analyzing Existing Structures

Structural analysis of existing buildings helps identify potential design improvements. Assessing current structures allows architects to propose modifications that enhance safety, functionality, or sustainability.

Analyzing existing structures is a key part of architectural and engineering work. This process, known as structural analysis, assesses the condition, performance, and potential improvements of buildings, particularly valuable in renovations, retrofitting, or historical preservation.

Through detailed assessments, architects and engineers can identify design changes that boost safety, functionality, and sustainability, ensuring that buildings meet modern standards and respond to environmental demands.

Importance of Structural Analysis

Structural analysis in existing buildings helps architects and engineers:

  1. Evaluate Safety: Identify weak points, outdated materials, or structural elements that may not meet current safety codes, especially in older buildings.
  2. Improve Functionality: Propose adjustments to better accommodate a building’s purpose, such as adding load-bearing elements, reconfiguring spaces, or enhancing accessibility.
  3. Increase Longevity: Suggest repairs or replacements for structural materials that have weakened over time due to factors like weathering or seismic activity.
  4. Enhance Sustainability: Recommend eco-friendly

11. Innovations and Technologies in Structural Engineering

Advances in technology have transformed structural engineering:

  • AI and Machine Learning: Used in structural analysis to predict load distribution and material durability.
  • 3D Printing: Enables the construction of complex structures with less waste.
  • Smart Materials: Innovations like self-healing concrete or energy-absorbing steel improve resilience and reduce maintenance costs.

The field of structural engineering has evolved rapidly thanks to new technologies that streamline construction, increase safety, and make projects more sustainable. Here are some of the key advances driving the field forward:

AI and Machine Learning

Artificial intelligence and machine learning are revolutionizing structural engineering, particularly in predictive analysis and load distribution modeling. These technologies analyze massive amounts of data, allowing engineers to simulate how different materials and designs will respond under varying conditions. AI models can predict potential weak points or stress areas in complex structures, aiding in the development of safer, more resilient buildings.

  • Practical Example: AI-driven software is often used in earthquake-prone areas to simulate how buildings might respond to seismic activity, making it possible to reinforce structures proactively.

3D Printing in Construction

3D printing, or additive manufacturing, has introduced new possibilities in structural engineering. This technology enables the construction of intricate designs with reduced waste and materials. 3D-printed elements are increasingly common in prefabricated building parts, allowing for greater customization and efficiency in construction.

  • Interesting Fact: Some companies are now using 3D printing to create entire homes. This method reduces construction time, lowers labor costs, and minimizes waste, marking a substantial step toward sustainable building.

Smart Materials

Smart materials represent another leap in structural engineering, with options like self-healing concrete and energy-absorbing steel. These materials respond to environmental stress or damage, automatically adjusting to prolong the lifespan of the structure.

  • Self-Healing Concrete: This concrete contains bacteria that produce calcium carbonate when cracks form, effectively "healing" the concrete and reducing maintenance costs.
  • Energy-Absorbing Steel: Used in earthquake-prone areas, this steel dissipates energy from seismic activity, helping buildings withstand extreme conditions.

Practical Tips for Implementing New Technologies

  1. Start Small: Integrate new materials or AI tools in manageable portions of your projects, testing them on specific structural components.
  2. Stay Updated: Technology in structural engineering is constantly evolving, so ongoing education and adaptation are key to staying competitive.
  3. Leverage 3D Printing for Custom Parts: Use 3D printing for unique design elements, especially in prefabrication, where it can save both time and resources.

Key Takeaways

Innovations in AI, 3D printing, and smart materials are transforming the field of structural engineering. These advancements not only streamline construction and reduce waste but also enhance structural resilience, offering architects and engineers new tools to create safe, sustainable, and cutting-edge designs.

Related:

The Hidden Impact of Load Distribution

Load distribution is a critical element of structural design, although it often goes unnoticed in discussions about architectural aesthetics. Correct load distribution is essential for preventing structural stress points that can weaken over time and potentially lead to costly repairs—or worse, unexpected structural failure.

Why Load Distribution Matters

When a building is designed, all components, such as beams, columns, and walls, are planned to carry specific types and amounts of loads. Load distribution ensures that forces move smoothly through these structural elements to the foundation, creating balance and stability.

For example:

  • Misalignment of Loads: When loads aren't correctly aligned with their supporting elements, the structure can suffer from added stress, which weakens materials over time.
  • Stress Points: Concentrated loads in a specific area can create stress points, often resulting in cracks or warping if left unaddressed. Engineers must calculate and design for load paths to prevent this issue.

Practical Application in High-Rise Buildings

In skyscrapers, for instance, load distribution is even more crucial due to the intense forces acting on the structure from various directions, including lateral loads from wind and seismic activity. The load path in such designs often includes shear walls, braces, or moment-resisting frames that help transfer loads effectively to prevent swaying or torsional effects.

Tips for Effective Load Distribution

  1. Clear Load Path: Ensure a continuous load path from the roof to the foundation to avoid stress points and ensure that all forces are directed safely downward.
  2. Use Structural Software: Programs like AutoCAD and Revit can help visualize load distribution, making it easier to identify and address any potential weak points before construction begins.
  3. Choose Materials Based on Load Requirements: Select materials that can handle the specific types of stress they will encounter. For example, concrete is strong under compression, while steel handles tension well.

Interesting Fact: Ancient Load Distribution

Ancient builders also understood load distribution principles. For example, the Roman arch design allowed forces to distribute across the arch evenly, which is why so many ancient Roman bridges and aqueducts still stand today.

By understanding load distribution and how it impacts every part of a building, engineers and architects can design structures that are safer, more durable, and cost-effective in the long run.

FAQs on Structural Technology in Architecture

What is structural technology in architecture?

  • Structural technology is the application of engineering principles and material science to design stable, safe, and resilient structures in architecture. It involves using key elements like beams, columns, slabs, and walls to create frameworks that can withstand various forces. In essence, structural technology ensures that buildings have the stability and durability to perform safely over time.

Why is understanding different load types important?

  • Understanding various load types is essential because each type—such as dead loads (permanent structural weight), live loads (people and furniture), and environmental loads (wind, seismic activity)—puts unique stresses on a building. Recognizing and planning for these helps prevent structural issues, ensuring a building’s integrity over its lifetime.
    • Example: In earthquake-prone areas, engineers might reinforce buildings with shear walls or braces to help them withstand seismic loads.

What materials are best for sustainable structures?

  • Common materials for sustainable architecture include:
    • Recycled Steel: Strong, durable, and recyclable, making it ideal for sustainable designs.
    • Sustainable Timber: A renewable, natural option that’s both lightweight and resilient when sourced responsibly.
    • Reinforced Concrete: While traditional concrete is high in carbon emissions, its reinforced form is long-lasting and can incorporate recycled materials, increasing its sustainability.

How does technology impact structural engineering today?

  • Advanced technology, such as AI and 3D printing, is revolutionizing structural engineering by improving accuracy in design, material selection, and construction efficiency. For example:
    • AI and Machine Learning can predict load behavior over time, helping to design structures that better withstand stressors.
    • 3D Printing allows for the creation of complex, lightweight structures with minimal waste, useful in both prototype and full-scale builds.
    • Smart Materials, like self-healing concrete, actively repair cracks to extend a building’s lifespan, reducing maintenance costs.

What is load path analysis and why is it important?

  • Load path analysis evaluates how forces travel through a structure, moving from the roof down to the foundation. This is crucial for ensuring balanced load distribution, minimizing stress points that could compromise a building's stability. When load paths are carefully analyzed, structures can better withstand both static and dynamic forces, like those from high winds or earthquakes.
    • Practical Tip: In tall buildings, having clear load paths with minimal disruptions ensures stability against lateral forces, like wind loads, making them safer and more resilient over time.

Sources

  1. American Institute of Architects (AIA)
  2. National Institute of Building Sciences (NIBS)
  3. LEED Green Building Certification
  4. World Green Building Council
  5. Engineering News-Record
