Drawing your own house blueprints gets serious fast once the drawings have to guide a real build.
Sketching rooms is easy. Producing a plan set that holds together at scale, reads clearly to someone else, and still works once doors, stairs, windows, structure, and code enter the picture is different work.
You can do a lot yourself, especially at the layout stage. But useful DIY blueprints come from process, not inspiration: set the scale, test the plan, place openings properly, add clear dimensions, and check that the thing can actually be built.
What Usually Goes Wrong First
Most first attempts fail in predictable ways. Not because the person is lazy. Because they start detailing too early, trust the screen too much, and treat the drawing like an illustration instead of a set of instructions.
| Common mistake | What goes wrong | Do this instead |
|---|---|---|
| No fixed scale | Rooms look fine until they print wrong or feel wrong on site | Pick the scale early and hold it through the full plan |
| Random canvas size | The plan works on screen but not on a printable sheet | Choose the sheet size first, then draw to suit it |
| Door swings ignored | Doors hit each other, block circulation, or swing into fixtures | Draw every swing and test movement paths early |
| Over-detailing too soon | You waste time drawing kitchens and furniture before the walls even work | Lock the layout first, then add detail in layers |
| No dimension discipline | The plan looks believable but cannot be checked or built | Dimension the shell, openings, and main rooms clearly |
| Skipping code and setbacks | The plan may not fit the lot or permit rules | Check local limits before you get attached to the layout |
The result is usually the same: a nice-looking drawing that does not survive review.

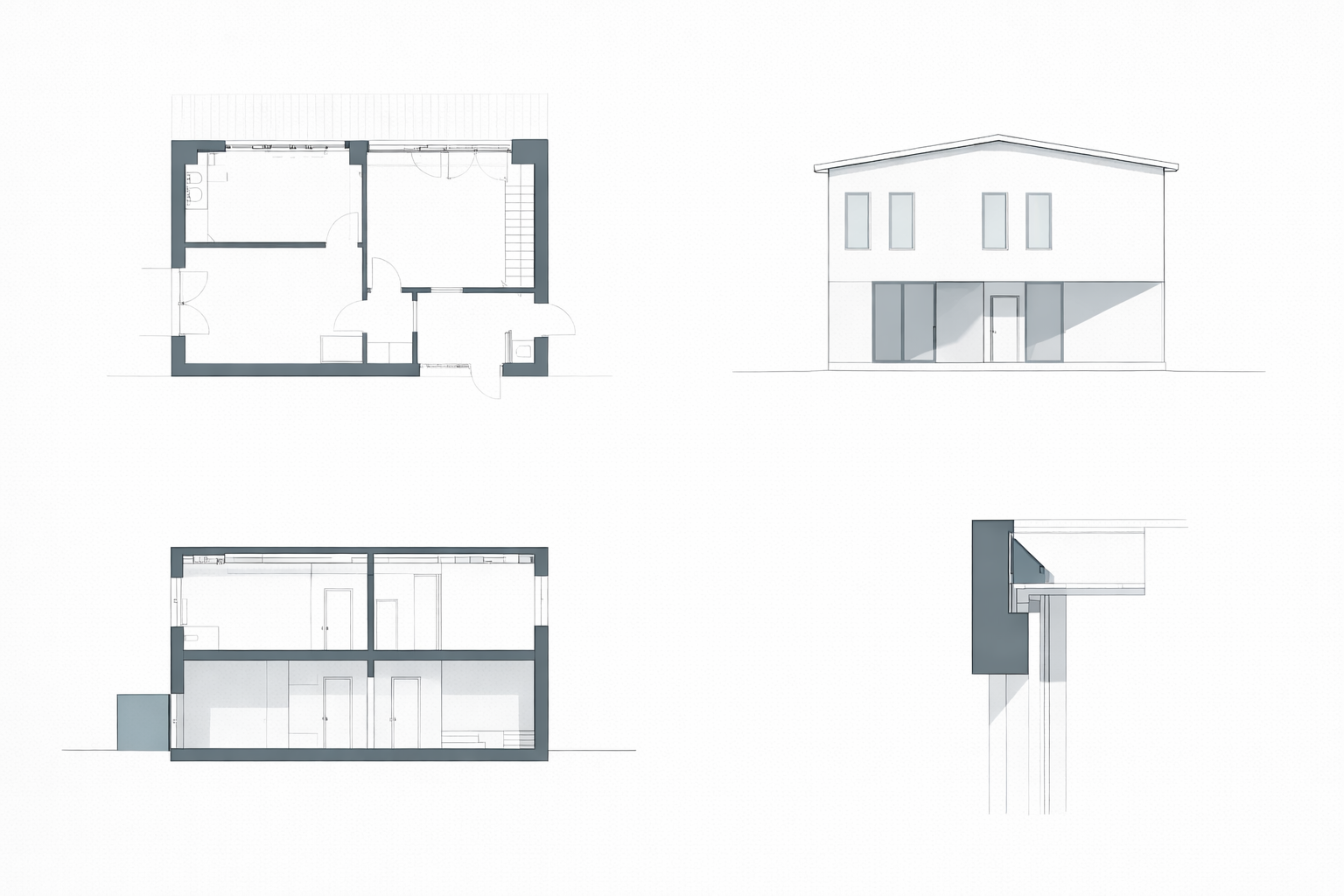

What a Basic House Blueprint Set Usually Includes
A usable house set is not just one floor plan. Even for a small house, you usually need several drawing types working together.
| Drawing | What it does | Why it matters |
|---|---|---|
| Floor plan | Shows room layout, walls, doors, windows, stairs, and circulation | This is the main organizational drawing |
| Elevations | Show the exterior faces of the house | They help with roof shape, window alignment, and exterior review |
| Section | Shows a cut through the building vertically | This is where floor-to-floor relationships and roof build-up start making sense |
| Details | Zoom in on stairs, walls, openings, and tricky junctions | They stop people from guessing |
| Schedules | List doors, windows, finishes, or room information | They tell you exactly what item was intended |
Miss enough of these and the “blueprint” drops back down to a sketch. That is the line people blur all the time.
For the broader background, see What Are Blueprints in Construction and Design. If you want the bigger drawing taxonomy, go to List of Architectural Drawings.
Paper First or Software First?
Both can work. The better question is what stage you are in and how disciplined you are.
| Approach | Use this when | Avoid this when |
|---|---|---|
| Graph paper and scale ruler | You are testing layout, room sizes, and circulation quickly | You already need polished sheets or repeated revisions |
| Simple consumer planning software | You want to test furniture fit, openings, and room arrangements | You think the software will automatically make the plan buildable |
| Professional CAD or BIM tools | You need precision, layers, cleaner output, and better control | You are still confused about basic plan logic and scale |
The wrong move is jumping into complex software before you understand walls, openings, stairs, and circulation. That is how people end up with a polished file and a weak plan. A basic tool can be enough for layout testing. It is not enough to replace judgment.
For the drawing side of this, Drawing of a Modern House: Reading and Creating Your First Plans is a good companion once you start moving from rough layout into clearer representation.
Before You Draw a Line, Check the Rules
This is the part people skip because it is less fun than drawing kitchens and facades.
- Setbacks and lot limits. Your plan may not fit where you think it fits.
- Basic code requirements. Stair geometry, egress, ceiling heights, and openings are not loose suggestions.
- Local permit requirements. Some jurisdictions will accept simple owner-prepared drawings for limited work. Others require stamped drawings sooner than people expect.
- Utility and structural logic. Plumbing stacks, mechanical runs, and roof loads do not politely fix themselves later.
It is a lot easier to redraw a rough plan than a finished one. A plan that fails setbacks or basic code is dead before the finish notes matter.
How to Draw Your Own House Blueprints, Step by Step
1. Start with the lot and the project limits
Draw the property outline or work area first. Mark setbacks, access points, and any limits you already know. Do not start by drawing the living room.
2. Rough out the room relationships
Use loose room blocks or bubbles first. Think about entry, circulation, kitchen adjacency, bathroom stacking, privacy, and how someone actually moves through the house. This is the stage for fixing the big logic, not the trim package. If the kitchen, bath, and stair relationships are wrong here, they stay wrong later.
3. Choose a scale and stick to it
For many residential plans in the US, 1/4 inch equals 1 foot is a common working scale. The exact scale can vary, but the point is the same: pick one and stop eyeballing.
4. Draw the exterior walls first
Lock the footprint. Then place the interior partitions. The shell controls everything else.
5. Add doors, windows, and stairs correctly
Every door needs a swing. Windows need size logic and placement logic. Stairs need direction, landing logic, and headroom awareness. These are not decorative symbols. They change how the plan works. A bathroom door that hits the vanity is still a design mistake even if the linework looks clean.
6. Add dimensions where they can actually be read
Overall dimensions, opening locations, and room sizes need to be clear. Keep the dimensioning organized. A drawing can be technically correct and still be miserable to read if the dimensions are scattered badly.
7. Add the basic fixtures and working clearances
Kitchens need counters and appliance logic. Bathrooms need fixture placement and usable clearances. Bedrooms need bed and closet reality. A room that “fits on paper” can still fail once basic use is tested.
8. Draw the elevations and at least one useful section
The elevations tell you whether the outside is coherent. The section tells you whether the inside stacks properly. Floor plans alone hide too much.
9. Print the plan and review it like a stranger would
Print it once. Full size if possible, or at least at a scale you can check honestly. A lot of bad plans reveal themselves the minute they leave the screen. If you can, tape out one or two key rooms on the floor and walk them.
10. Get another set of eyes on it before you trust it
This matters. Even a short review from an architect, drafter, contractor, or code-savvy reviewer can catch expensive mistakes early.

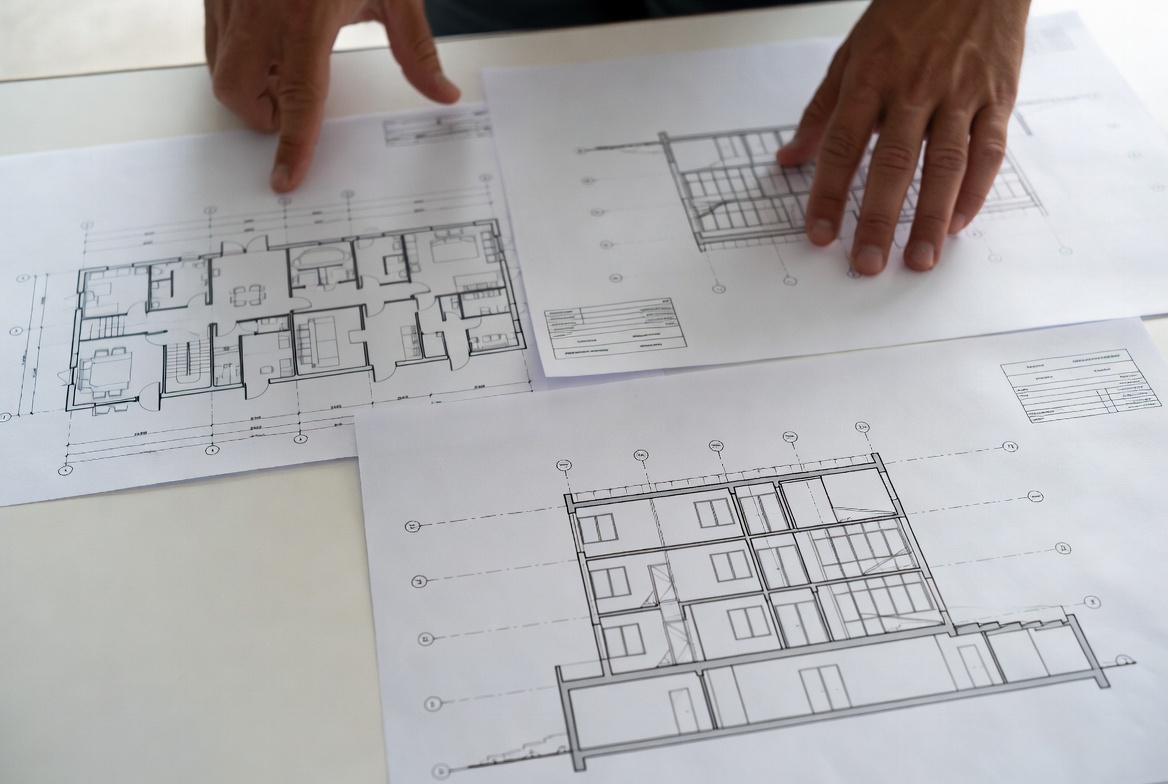

If your next step is learning how to read the sheets more carefully once they exist, go to Reading Blueprints: How to Read Plans Like a Pro.
The Mistakes That Cost Money Later
- Wrong door swings. Cheap to fix on paper. Annoying and expensive to fix later.
- Weak dimensioning. “Looks about right” is not a measurement system.
- Skipped egress logic. Bedroom windows and exits are where casual plans start getting corrected fast.
- Ignoring plumbing routes. Wet areas should not be scattered carelessly if you want a plan that builds cleanly.
- No thought for structure. Long spans, stair openings, and roof shapes affect the plan whether you acknowledge them or not.
- Furniture drawn before layout is resolved. This is how people spend time decorating a weak plan.
The repeated pattern is simple: the plan gets prettier faster than it gets better.
When DIY Works and When It Stops Working
| Situation | DIY is reasonable | You should probably get help |
|---|---|---|
| Early layout testing | Yes | No need for full professional work yet |
| Basic renovation planning | Sometimes | Yes if structure, stairs, or permit drawings get involved |
| New custom house planning | Good for rough planning and discussions | Usually yes for proper permit and construction documents |
| Permit-ready set | Only in some jurisdictions and some simple cases | Often yes |
That is the honest trade-off. DIY plans are useful. They can save time, clarify ideas, and make professional meetings much better. But a homeowner layout study and a build-ready drawing set are not the same thing.
What To Do Next
- How to Design Your Own House if you are still shaping the overall layout and concept.
- Reading Blueprints: How to Read Plans Like a Pro if you need to understand plan sets better once the drawings exist.
- Architectural Drawing Symbols: Complete Guide for Students and Professionals if notation and symbols are slowing you down.
- How to Build Your Own House: A Step-by-Step Guide if you are already thinking past drawings and into the actual build sequence.
FAQ
Can I draw my own house blueprints legally?
Sometimes, yes for early planning or some owner-prepared submissions. But permit requirements vary by jurisdiction and by project type. A full new-house set often triggers stricter requirements than people expect.
Do house blueprints have to be to scale?
Yes. Without scale, you have a sketch. That can still be useful, but it is not the same thing as a real plan drawing.
What scale is common for residential plans?
1/4 inch equals 1 foot is common for many residential floor plans in the US, though the right scale depends on the drawing and sheet size.
Do I need elevations and sections, or just a floor plan?
You need more than a floor plan if you want the house to be understood properly. Elevations and sections explain things the plan cannot show on its own.
Can I use free software to draw my own house plans?
You can use simple or low-cost tools for layout testing, room planning, and early studies. Just do not confuse accessible software with automatic buildability.
What is the hardest part of drawing your own house blueprints?
Usually not the software. It is keeping scale, dimensions, circulation, openings, code limits, and structure working together without drifting into guesswork.
Should I get a professional to review DIY plans?
Yes, especially once the plan is more than a rough study. A short professional review can catch problems that are much cheaper to fix before permit or construction.
What is the difference between a floor plan and a blueprint?
A floor plan is one drawing type. A blueprint, in common use, usually means the wider drawing set or construction drawings for the project.
