Structural Floor Systems: How Floors Carry Weight And Why They Fail
Floors look simple when you stare at the finished surface. Smooth hardwood. Clean LVP. Quiet carpet. Under that finish is a structural system that decides how the house actually feels. Strong or flimsy. Quiet or creaky. Solid or bouncy. Most complaints that sound like “my floor feels cheap” or “my tile cracked” come from the structure, not the finish.
This chapter explains the part nobody sees. Joists. Beams. Trusses. Subfloors. Cantilevers. Crawl spaces. Slabs. It gives you the real logic builders use on site and the checks inspectors make when the house starts sagging. Once you understand this layer, every flooring choice, every repair, and every remodel becomes easier to plan and cheaper to get right.
Floor Structure Basics for Builders and Homeowners
Understand the structural side of floors. How loads travel, why floors bounce, what subfloors matter, and how builders keep floors solid and quiet.

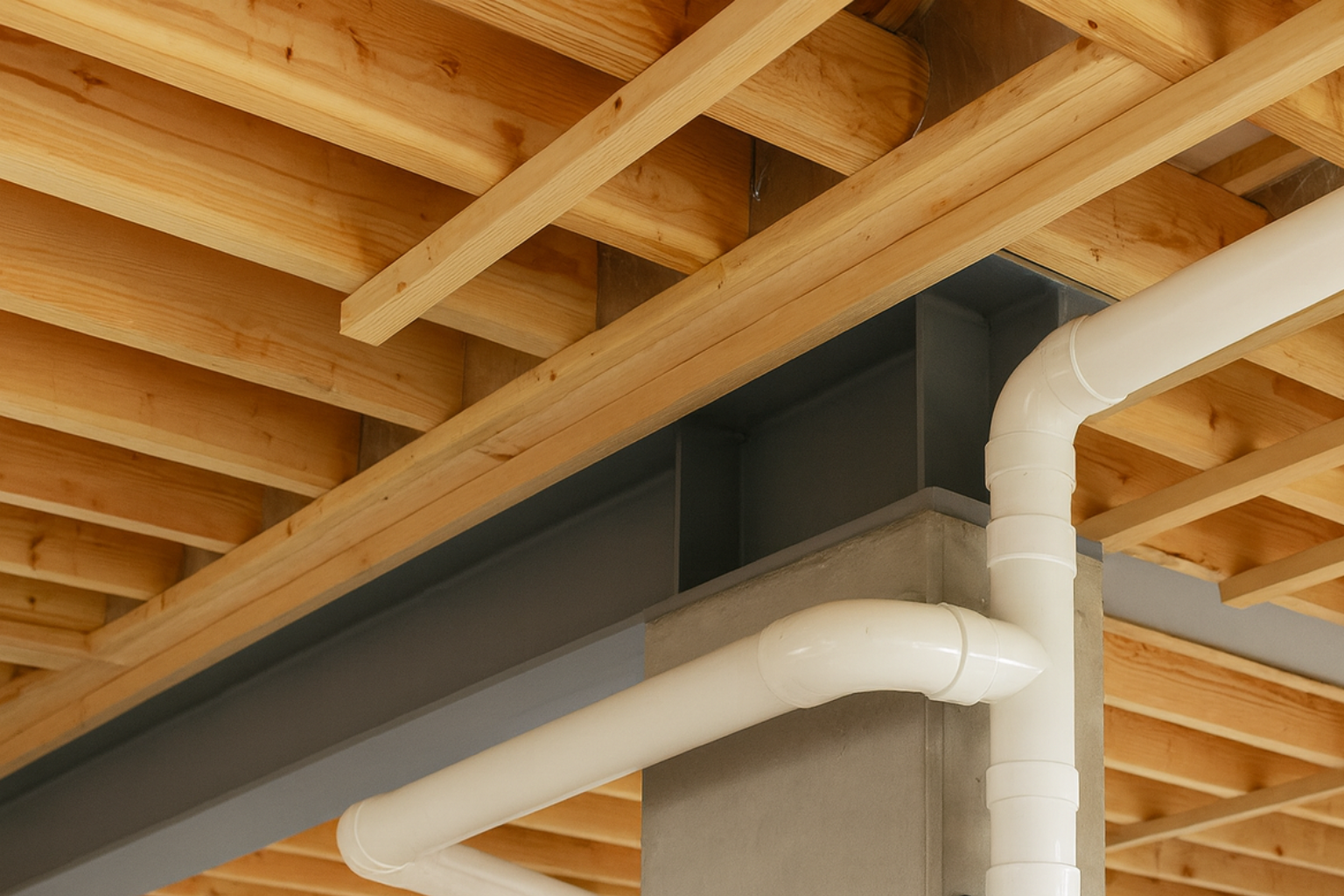

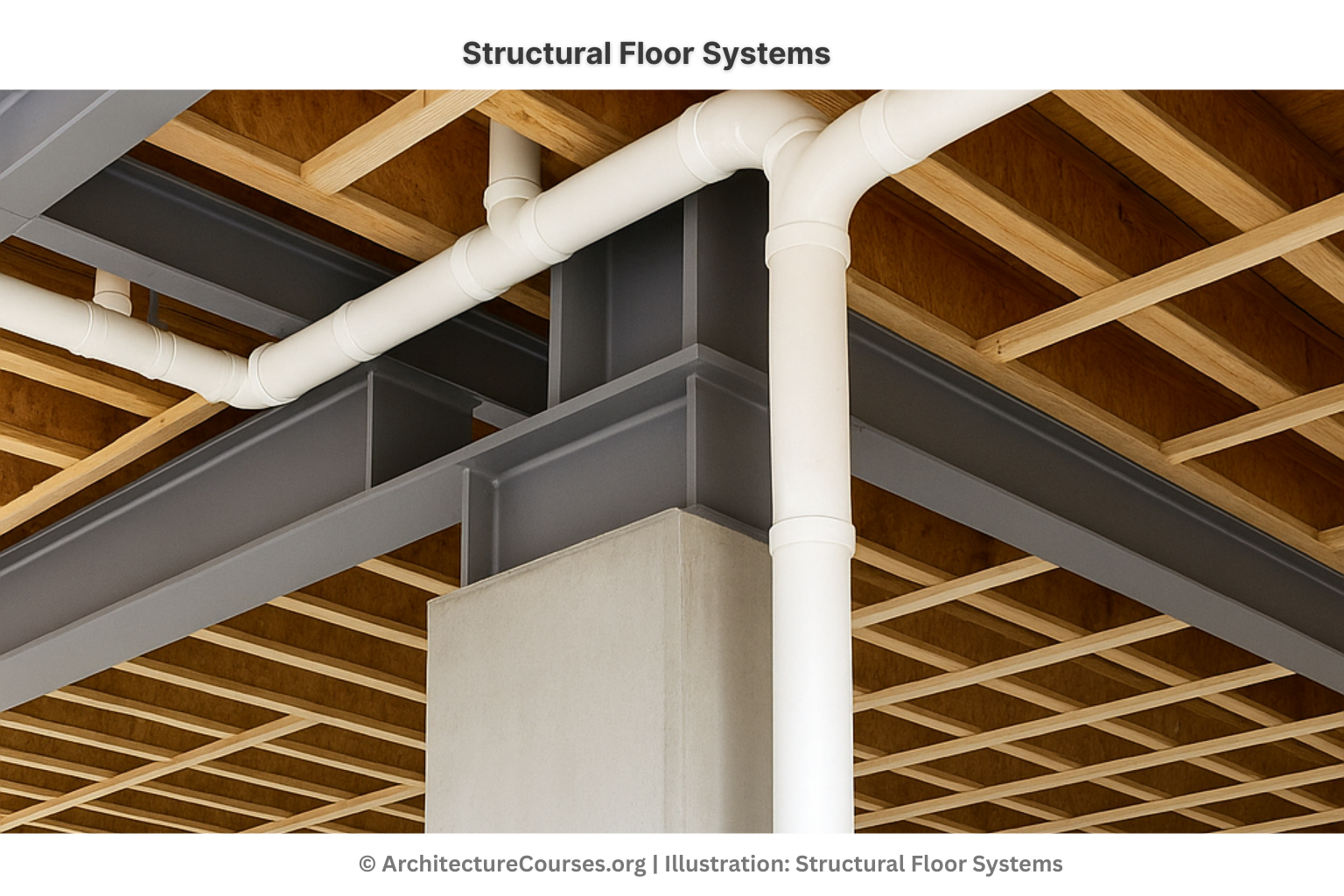

The Big Picture: What a Floor System Actually Is
A structural floor system has three jobs. Carry weight. Stay stiff enough to avoid bounce. Stay dry enough to avoid rot and mold. Everything else sits on top of these goals. A good floor system does not draw attention. A bad one announces itself every time someone walks through the room.
The system usually has four layers. The joists carry the load. The beams or bearing walls carry the joists. The subfloor ties everything together. The finish sits on top and follows whatever happens below. When these parts line up, rooms feel clean and solid. When they do not, the house feels tired even when it looks new.
This chapter breaks the system down piece by piece. You learn where each choice matters and why small mistakes become big problems later.
Floor System Types: Joists, Beams, Trusses, and Slabs
Most houses use one of four structural systems. Each shows up for a reason. Cost. Span. Soil. Climate. Speed of construction. Mechanical routing. Understanding these types makes it easier to predict how a house will behave.
Joist and beam framing
This is the most common system in North America. Dimensional lumber or I-joists span between beams or bearing walls. It is simple and fast. The downside is bounce on long spans and trouble when loads are misaligned.
Open-web floor trusses
These trusses look like big wood ladders. They carry long spans and make plumbing and HVAC routing much easier. They save labor on dense mechanical projects but require strict fire protection rules and careful handling so the plates do not pull loose.
Engineered joists (I-joists)
These solve long spans with predictable stiffness. They stay straight. They carry loads efficiently. The trouble is hole placement, fire resistance, and unsupported end cuts. A careless plumber can ruin an entire run.
Concrete slabs
Some houses sit directly on a slab. No joists. No subfloor. The slab carries everything into the soil. This system works in warm climates with stable ground. When done poorly, slabs crack, tilt, or wick moisture into finishes.
Every system has limits. The key is knowing which one you are standing on and which rules apply.
How Loads Travel: From Floors to Beams to Footings
Floors carry weight in a simple direction. Downward. They move loads from furniture, people, appliances, tubs, islands, and walls into beams or bearing walls. Those elements send the load to posts. Posts land on concrete. Concrete spreads the load into soil.
When that path is clean, the floor feels quiet and solid. When the path is broken, the floor twists, dips, and cracks.
Here are the simple checks builders use:
● Follow the joists. Where do they land?
● Follow the beam under them. What holds that beam?
● Follow the post under the beam. What does that post sit on?
● Check if any part of that chain is cut, undersized, or rotting.
Loads always reveal the weak point. A missing post. A beam with too much span. A joist that was notched too deeply. A sill plate that rotted behind siding. All those problems show up first as “my floor feels off.”
Understanding load paths is the foundation of diagnosing floor problems later.
How Floor Joists Work: Span, Size, and Load
Joists do the heavy lifting. They carry the floor load and pass it to beams or walls. Their size, spacing, and bearing decide how stiff the floor feels.
Size
Typical joists are 2x8, 2x10, or 2x12, or engineered I-joists with deeper profiles. Bigger lumber means less deflection. A 2x10 feels strong on a short span and flimsy on a long one. Spans decide everything.
Spacing
Twelve inch spacing creates very stiff floors. Sixteen inch spacing is most common. Twenty-four inch spacing works only with engineered lumber and premium subfloors. The farther the spacing, the more the floor dips between joists.
Bearing
Joists need full support at the ends. They should sit flat on beams or walls. Gaps, crushed fibers, or tilted seats create bounce and squeaks. A joist sitting on a hanger also needs every nail installed. An empty hole is a weak spot.
Span tables
Span tables give the maximum allowable distance for each size and species. They are not suggestions. They are the difference between a solid floor and a trampoline. Builders check these tables before framing. Homeowners rarely see them until something goes wrong.
Beams: What Carries the Joists
Beams take the load from joists and move it to posts. A weak beam makes perfect joists feel soft. This is where many homeowners misdiagnose the problem. They stare at the floor finish when the real issue is two levels below.
Beam rules are simple:
● Deeper beams bend less
● Posts spaced closer make beams stiffer
● Built-up beams must be nailed correctly
● LVLs carry more than dimensional lumber
● Steel solves long spans but needs fire protection
A beam with too much span creates a long gentle sag across the whole floor. You can feel it even when you cannot see it.
Deflection: Why Floors Sag or Bounce
Every floor bends. The question is how much. Too much bend cracks grout, opens gaps in hardwood, and makes the whole room feel cheap.
Builders use ratios like L/360 or L/480. Here is the simple explanation:
● L is the span in inches
● The number is how much bending is allowed
A floor at L/360 bends one inch over a 30 foot span. A floor at L/480 bends less. Tile needs stiffer floors. Stone needs even more stiffness.
A little bounce is normal. Excessive bounce means the joists or beam are not sized for the span. No finish solves that problem.
Blocking and Bridging: Keeping Floors Stiff and Quiet
Joists twist when loaded. That twist becomes noise and bounce. Blocking or bridging stops that.
Solid blocking
Short pieces of lumber installed between joists. They stop twisting and keep everything in one plane.
Cross bridging
Diagonal braces between joists. They share load side to side. If installed tight, they reduce bounce.
When blocking matters
It matters most near midspan, around heavy loads like islands or tubs, and anywhere joists are tall and thin. Many framers skip blocking to save time. The floor reveals that choice every day.
Engineered Lumber: LVLs, I-Joists, and Floor Trusses
Engineered lumber changed how houses are built. It allows clean long spans and predictable performance.
LVLs
Strong, straight, and able to carry heavy point loads from walls and beams. They cost more but solve structural weaknesses quickly.
I-joists
Lightweight and consistent. They span long distances with little deflection. The weak points are holes, cuts, and fire resistance. You must follow the manufacturer’s limits.
Open-web floor trusses
Great for routing plumbing and HVAC. They create flat ceilings and clean mechanical paths. The risk is plate pull-out or excessive vibration if the trusses are too thin.
Engineered systems need careful installation. When done right, they give the stiffest floors in residential work.
Subfloor Materials: OSB, Plywood, and Specialty Panels
The subfloor ties the framing together and gives the finish a stable base.
OSB
Most common. Handles moisture differently than plywood. Swells at edges if left exposed too long. Works well when glued and fastened correctly.
Plywood
Stays flatter when wet. Handles edge swelling better. Costs more. Many builders prefer it for tile and stone floors.
Premium panels
Some have integrated moisture barriers. Some lock together tightly. They cost more but save time and reduce callbacks for squeaks.
How the subfloor feels underfoot depends on fasteners, adhesive, and blocking more than the panel alone.
For the full material breakdown, the floor materials guide covers how each product handles moisture, load, and daily wear.
Installing a Subfloor That Does Not Squeak
Squeaks come from movement. Fix the movement and you fix the noise.
Key rules:
● Use subfloor adhesive on every joist
● Screw instead of nail for the field
● Nail the edges to lock the sheet down
● Stagger seams so joints do not line up
● Plane crowns and fill low spots before panels go down
● Tighten any loose blocking before installing anything
If the framing is sloppy, the subfloor will tell you.
Cantilevered Floors and Overhangs
A cantilever works by balancing the overhang with enough backspan inside the house. Get the ratio wrong and the overhang sags and cracks.
Common mistakes:
● Too much overhang for the joist depth
● Not enough continuous backspan
● Cutting or drilling the cantilever joists
● Building heavy decks or rooms on weak overhangs
Cantilevers often need engineered review. Never guess. One mistake here becomes expensive fast.
Floors Over Crawl Spaces
Crawl spaces create the worst floor problems when ignored. Moisture rises. Wood swells. Mold spreads. Floors sag and feel cold.
Basics every builder checks:
● Ground must be covered with a vapor barrier
● Crawl space must be dry, not vented with humid air
● Rim joists must be insulated and air sealed
● Drainage must slope away from the house
● Critter access must be blocked
A wet crawl space ruins floors faster than any other condition.
Slab-on-Grade Floors
A slab carries load directly into soil. No joists. No beams. No subfloor. Just concrete.
A good slab has:
● Correct thickness
● Reinforcement in the right place
● Proper compaction under it
● A vapor barrier
● Clean control joints
On top of a slab you can place tile, LVP, engineered wood, or polished concrete. The finish depends entirely on moisture control.
Why Structural Floors Fail
Floors fail for predictable reasons. Undersized joists. Sagging beams. Rotten rims. Poor drainage. Cheap subfloor glue. Missing blocking. Overloaded rooms. Previous remodels that removed bearing walls. Termite damage.
Most failures start small. A tiny dip near a wall. A persistent squeak in the hall. A hairline crack in tile. These early signs are the warning lights. When ignored, the repair becomes expensive.
Structural floors survive when kept dry, supported properly, and built with enough stiffness.
Field Notes: What Professionals Look For First
A good builder or inspector sees floor problems quickly. They walk the house and feel it underfoot. They check the beam line. They follow the joists. They look at the crawl space. They push on the walls. They listen.
Here are the questions they ask:
● Does the floor feel different near midspan
● Are doors sticking
● Do tiles crack in straight lines
● Is the rim joist soft
● Is the beam pocket cracked
● Is the crawl space damp
● Are joists drilled incorrectly
● Is the subfloor glued or just nailed
Every answer leads to the real cause.
Closing
A strong floor system makes a house feel stable even when it is old. A weak one makes a new house feel cheap. Structure sets the ceiling for everything above it. Hardwood, tile, vinyl, and carpet only work as well as the system they sit on. Understanding the structure under your feet is the first step to building floors that stay quiet, stay stiff, and stay dry for decades.
FAQ
Why do floors sag in the middle of the room?
Long spans, undersized joists, weak beams, or missing posts. Sometimes rot or termite damage. Floors sag where the structure is stressed the most.
Why do joists bounce even if the house is new?
Modern houses use long spans, thinner joists, and fast production framing. A floor can pass code and still feel bouncy. L/360 is the minimum. Stiffer floors need tighter spacing or deeper joists.
Why do floors squeak?
Movement between wood and fasteners. Loose subfloor, joist twist, missed nails, adhesive gaps, or framing that shrank after drying.
Why do tile floors crack above wood framing?
The framing or subfloor bends too much. Tile wants a stiff, quiet base. Even small deflection cracks grout or corners of tile.
What causes beams to sag?
Long spans, too few posts, overloaded rooms, or moisture damage. Built-up beams also sag if the plies are not nailed together correctly.
What is the safest way to repair a sagging floor?
Find the load path first. Fix beams or posts before touching joists. Never jack a floor fast. Lift slowly over days to avoid cracking walls or finishes.
How do I know if a joist can be drilled or notched?
Dimensional lumber has strict rules for notch depth and drill placement. Engineered lumber follows manufacturer limits only. Drilling the wrong spot ruins the member.
Can floor trusses be cut in the field?
No. Trusses are engineered. Cutting webs or chords destroys their capacity. Only a truss company can approve repairs.
Why are crawl spaces bad for floors?
Moisture. Wet air rises, hits the framing, and causes rot, mold, sagging, and cold floors. A dry crawl space can perform well when sealed and insulated correctly.
Is OSB too weak for subfloor?
No. OSB works well when installed correctly. Most failures come from leaving panels exposed in rain, skipping glue, or not fastening edges tightly.
How thick should a subfloor be for tile?
Most tile assemblies need at least 1 1/8 inches of combined subfloor thickness or an uncoupling membrane on a solid base. Movement kills tile.
Can I install hardwood over a flexing floor?
You can, but it will gap, cup, and squeak. Fix structure before installing hardwood.
When should I call an engineer?
Major sagging, cracked beams, rotten sills, truss damage, stone floors, rooms with heavy loads, or anything involving cantilevers.
