Design and Implementation of Drag Struts in Modern Structures
If you’re designing a building that needs to handle seismic forces, strong winds, or heavy roof loads, drag struts (also called collector beams) are a key part of the structural system.
But what exactly are they, why do they matter, and how do you install them correctly?
This guide covers everything you need to know about drag struts, including:
- What drag struts are and how they work
- Where they’re used in construction
- Different types and materials (wood, steel, concrete, CFS)
- Step-by-step installation
- How to avoid common mistakes
- Best products and industry resources
Whether you’re an engineer, architect, contractor, or even a curious homeowner, you’ll know exactly how to use drag struts the right way.
What is a Drag Strut?

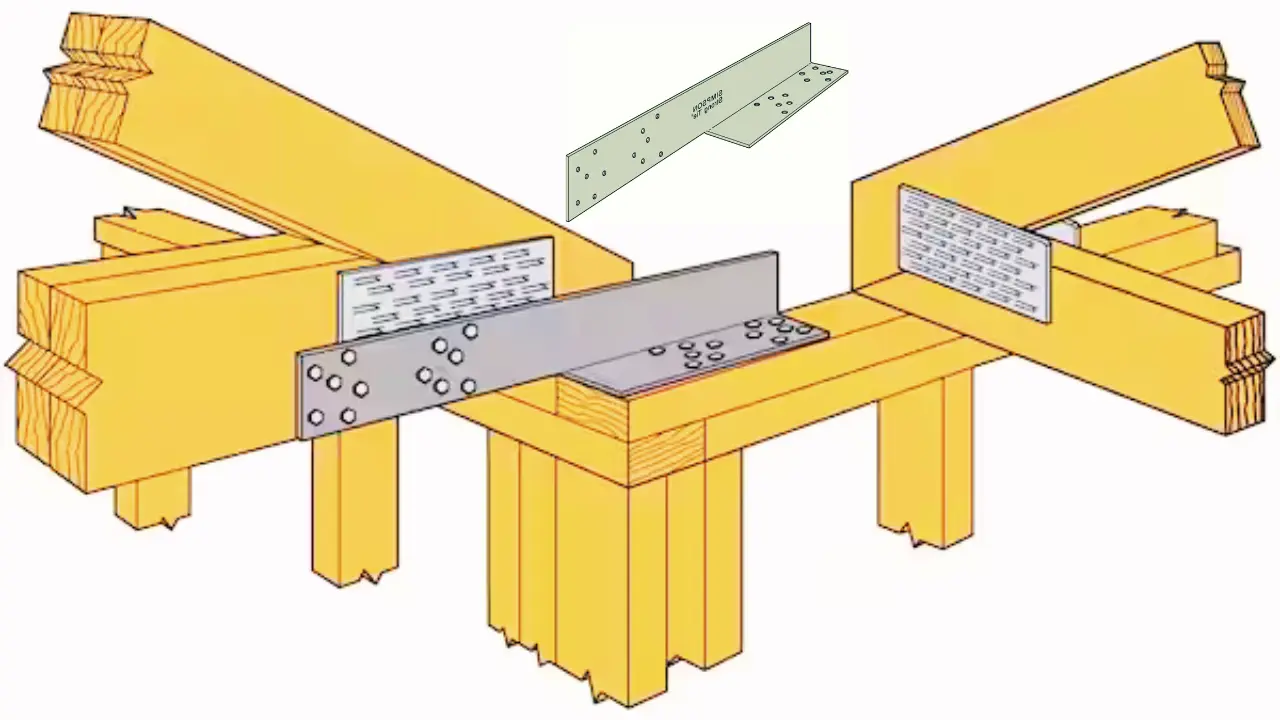

IMAGE: A close-up view of drag struts installed in a house frame, highlighting their role in providing stability and support.
A drag strut is a horizontal structural member that helps distribute lateral forces across a building.
Think of it as a bridge between the load and the resisting system—it takes the forces from the diaphragm (roof or floor) and transfers them to shear walls, braced frames, or other lateral-resisting elements.
Why is this Important?
In real-world conditions, buildings are constantly subjected to wind, earthquakes, and other lateral forces. Without drag struts, these forces could cause dangerous shifts, excessive stress, or even structural failure.
Where Are Drag Struts Used?

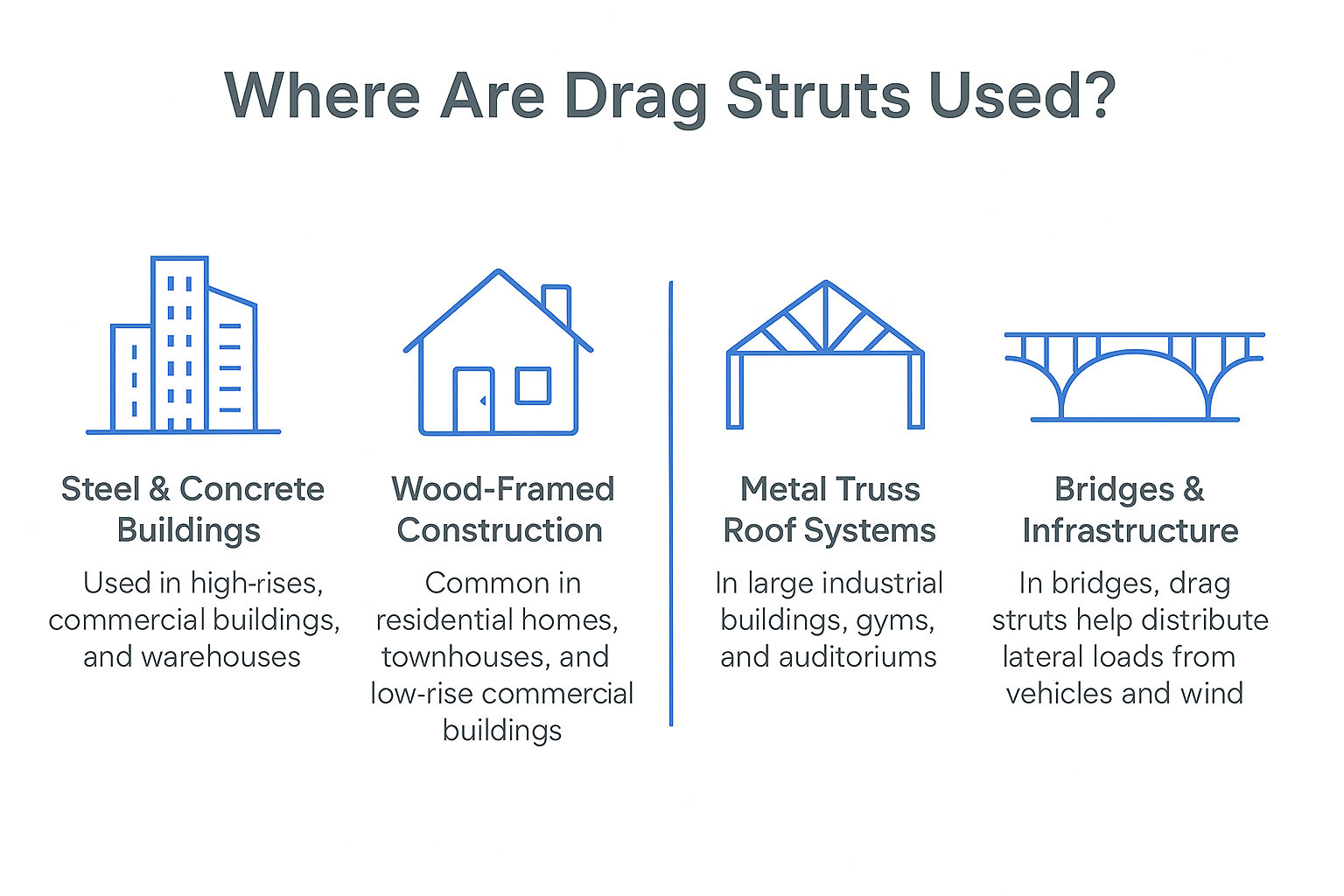

IMAGE: Educational infographic illustrating four key structural applications of drag struts: steel and concrete buildings, wood-framed homes, metal truss roofs, and bridges.
1. Steel & Concrete Buildings
- Used in high-rises, commercial buildings, and warehouses to connect diaphragms to lateral load-resisting systems.
- Often made of structural steel or reinforced concrete to handle high forces.
2. Wood-Framed Construction
- Common in residential homes, townhouses, and low-rise commercial buildings.
- Typically made from glulam, LVL beams, or dimensional lumber to connect the roof/floor to shear walls.
3. Metal Truss Roof Systems
- In large industrial buildings, gyms, and auditoriums, drag struts help stabilize long-span trusses.
- Usually made from steel channels or cold-formed steel (CFS) members.
4. Bridges & Infrastructure
- In bridges, drag struts help distribute lateral loads from vehicles and wind.
- Often made from reinforced concrete or steel I-beams.
How Do Drag Struts Work?

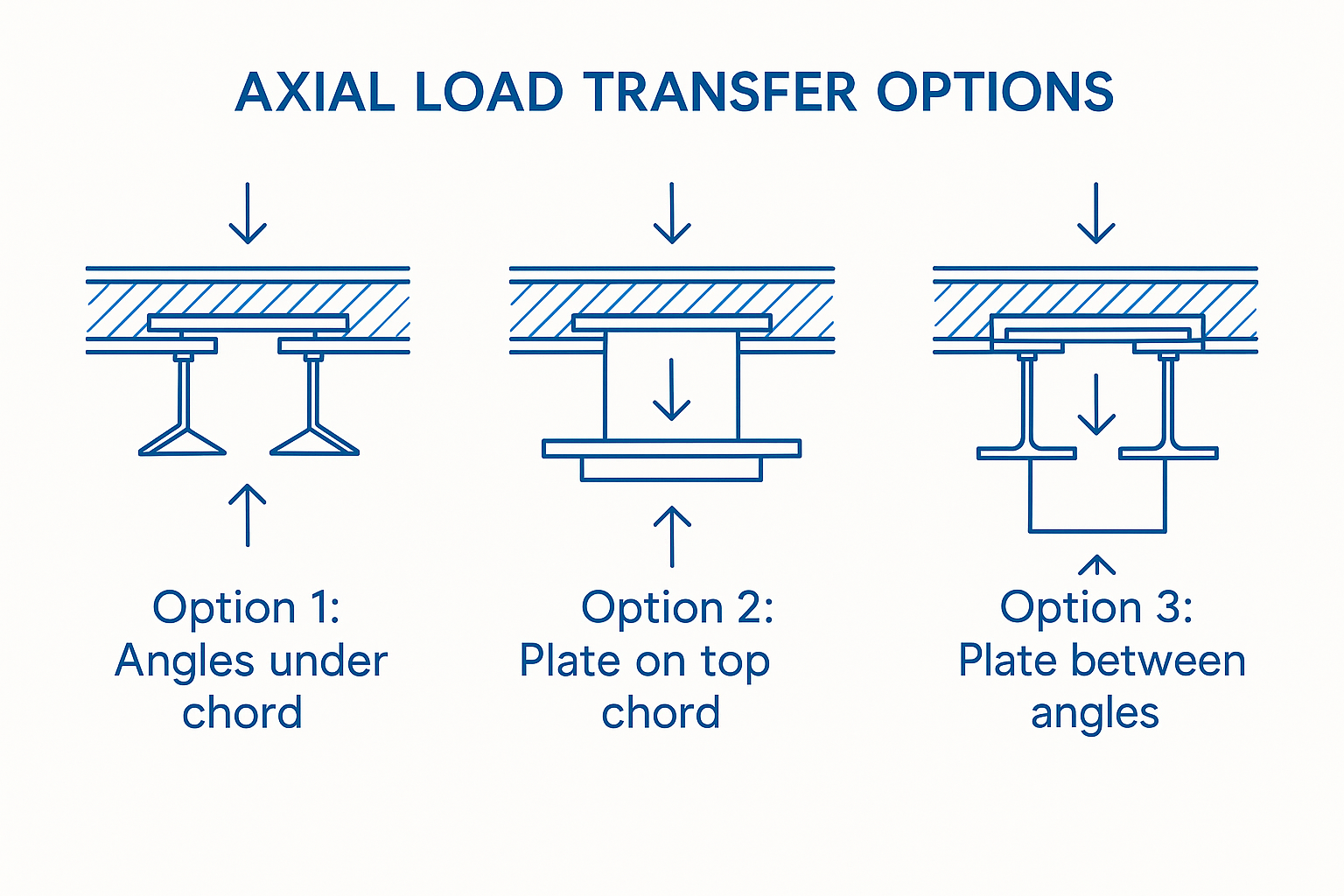

IMAGE: Three basic axial load transfer methods—angle, top plate, and mid-plate—using clean, minimalist blue line drawings for clarity.
Let’s say you’re designing a commercial warehouse with a metal truss roof and masonry shear walls.
When strong winds hit the building, the pressure pushes against the walls and the roof. The roof diaphragm (made of metal decking and steel joists) absorbs this force, but it needs a way to transfer the load to the shear walls—this is where the drag strut comes in.
🔹 It collects the force from the roof diaphragm.
🔹 It transfers that force to the shear walls.
🔹 The shear walls then send the force safely into the foundation.
Without a proper drag strut, the roof diaphragm could flex too much, causing structural failure.
Types of Drag Struts & When to Use Them
| Type | Best Used For | Material Options |
|---|---|---|
| Steel Drag Struts | High-load commercial & industrial buildings | Structural steel beams, steel C-channels |
| Wood Drag Struts | Residential homes & light commercial | Glulam beams, LVL, dimensional lumber |
| Cold-Formed Steel (CFS) Drag Struts | Prefabricated buildings, modular construction | CFS C-sections, hat channels |
| Concrete Drag Struts | Large buildings, infrastructure | Reinforced concrete beams |
- Steel is best for commercial and high-rise buildings.
- Wood works well in homes and low-rise structures.
- Cold-formed steel (CFS) is great for prefab and modular buildings.
- Concrete is best for bridges and large infrastructure projects.
Are Drag Struts Always Required?
Drag struts, also known as collector elements, play a crucial role in transferring lateral loads across a structure, especially in seismic or high-wind zones. But are they always necessary? The short answer: it depends on the structural design, load path, and building codes in your region.
When Drag Struts Are Essential
Seismic and Wind-Resistant Structures
If a building is in an earthquake-prone or hurricane-prone area, drag struts are often required to help distribute forces evenly. Without them, excessive stress could cause localized failures.
Large Openings in Shear Walls
If your building has large doors, windows, or open floor plans, drag struts help maintain lateral strength by collecting and distributing forces around these openings.
Irregular or Asymmetrical Structures
Buildings that don’t have a uniform structural layout may require drag struts to ensure loads are properly transferred between different sections. Uneven force distribution can lead to structural weaknesses over time.
Prefabricated and Modular Construction
Since prefab structures rely on pre-engineered connections, drag struts are often integrated to ensure load paths remain continuous. Without them, modules might experience excessive movement at the joints.
When Drag Struts Might Not Be Needed
Small, Symmetrical Buildings
For small residential homes with uniform wall layouts, the lateral load can often be handled by standard shear walls and bracing without the need for dedicated drag struts.
Structures with Continuous Shear Walls
If a building has shear walls that run the full length of a structure, there may be no need for additional load-collecting elements. However, this depends on calculations by a structural engineer.
Low-Seismic or Low-Wind Zones
In areas with minimal seismic activity or wind loads, structural requirements are often less strict, and drag struts may not be necessary. That said, skipping them without proper engineering analysis can be risky.
Don’t assume drag struts are optional—they’re often a critical part of a building’s lateral force-resisting system.
If you’re unsure whether they’re needed in your project, consult a structural engineer and check local building codes. Cutting corners here could compromise structural integrity, leading to costly repairs or failures in the future.
What Field Installers Wish Architects Knew About Drag Struts
It’s one thing to draw a perfect drag strut system on a screen.
It’s another thing to build it on-site with real materials, uneven joists, weather delays, and imperfect framing.
Here’s the truth: a lot of drag strut designs that work “on paper” fall apart when they hit the field—unless they’re built with real-world conditions in mind.
Let’s look at what contractors and structural installers really wish designers would consider before finalizing those drawings.
● Tight Fit Doesn’t Mean Strong Fit
Designers often spec drag struts to fit flush and tight—but forget that framing is rarely perfect.
In the field:
✓ Gaps happen.
✓ Beams twist.
✓ Nailing surfaces aren’t always ideal.
Pro tip: Allow a little tolerance in the strut pocket or connection zone.
Too-tight specs often slow down construction or require rework.
● Connector Overload
Some plans call for 40 nails, 6 bolts, a hold-down bracket, and two types of washers—all in a space smaller than a toolbox.
Installers need space to drill, screw, and swing a hammer. When connections are overdesigned or cluttered, they become inefficient or get skipped altogether (yep, it happens).
Keep it realistic: Use standardized connectors like Simpson drag strut ties or hold-downs—and double-check spacing clearances in your design.
● Load Path Interruptions Happen in Real Buildings
That beautiful, clean line from the diaphragm to the shear wall?
In real life, it might hit:
-
A plumbing chase
-
A duct
-
A window header
-
A beam pocket
If your drag strut relies on a perfect straight path, it's already at risk.
🛠 Solution: Add flexibility in the design—CFS options, nested blocking, or alternative framing paths that the crew can adapt on site.
● Wet Weather and Lumber Shrinkage Can Ruin Alignment
In wood framing, materials shrink as they dry. That tight drag strut-to-wall connection you installed in October? By March, it might have a visible gap and a lost load path.
Plan for movement: Use mechanical fasteners, slotted plates, or steel strapping that allows for slight shifts without breaking connection.
● Communication Saves Mistakes (and Money)
A drag strut missed during install often means cutting drywall, removing joists, and adding serious labor hours.
Installers need:
✓ Clear diagrams
✓ Callouts that highlight the strut’s role
✓ Pre-construction walkthroughs or even QR-linked 3D models
Want your design installed exactly how you imagined it?
Talk to the field crew before they break ground.
Real-World Drag Strut Design = Safer, Faster, Stronger Buildings
If you’re an architect or engineer, the best drag strut designs are buildable, flexible, and clearly communicated.
By keeping installers in mind, you make your project smoother, your structure stronger, and your clients a whole lot happier.
Top Drag Strut Design Mistakes to Avoid
Avoid these, and you’ll save yourself a lot of field headaches, inspection fails, and costly change orders.
☐ Forgetting to Include Drag Struts in the Load Path
It happens more often than you'd think. A diaphragm is in place, shear walls are drawn… but no collector to connect them.
→ Fix: Always trace the lateral load path on every floor plan—especially where the diaphragm changes direction.
☐ Spec’ing Struts Without Enough Room for Fasteners
Designers sometimes pack too much hardware into too small a space—especially near openings or narrow studs.
→ Fix: Cross-check actual connector sizes and edge distances. Use standard connection kits like Simpson Strong-Tie where possible.
☐ Using Wood Drag Struts in High-Load or High-Moisture Areas
Wood shrinks, warps, and weakens over time—especially in coastal or humid regions. Yet some designs still rely on dimensional lumber where it shouldn’t be.
→ Fix: Use steel or concrete struts in demanding conditions. Reserve wood for small-scale, interior, or dry-zone uses.
☐ Creating Unbuildable Strut Paths
If your collector beam has to zigzag around ducts, jump over plumbing, or cut through beams—it’s not going to be installed correctly.
→ Fix: Coordinate with MEP early. Use CFS or strap-based alternatives when beam paths aren’t available.
☐ Skipping Coordination with the Framer
No matter how good your design is, if the framer isn’t in the loop, it might be missed or misunderstood.
→ Fix: Include enlarged connection details in your set. Hold a pre-framing meeting if possible—or use simple QR code links to 3D visualizations.
☐ Assuming Field Crews Will “Figure It Out”
Vague notes like “secure to structure as required” don’t cut it. Field crews need clear direction.
→ Fix: Label every drag strut, connector, and tie with purpose and method. Include a general notes section that clearly defines drag strut intent.
☐ Relying on a Single Load Path
If the drag strut fails, does the building have a backup?
→ Fix: In large buildings or high-risk zones, consider redundancy. Add multiple collectors where loads are critical.
☐ Ignoring Local Code Variations
Not every city treats drag struts the same. What flies in Texas might get rejected in California.
→ Fix: Always check local amendments to IBC, ASCE 7, or seismic design manuals. Some codes have stricter detailing requirements.
☐ Underestimating Shrinkage and Long-Term Movement
Drag struts that are too rigid in wood construction can pop, bend, or split over time.
→ Fix: Use slotted connectors or flexible detailing where appropriate. Design for movement, not just strength.
Best Software for Drag Strut Design
If you’re an engineer, architect, or contractor, choosing the right software is crucial for designing and analyzing drag struts.
For Professionals (Full Structural Analysis)
AutoCAD (AI-Powered AutoLISP Macros)
- Automates drag strut layout and load calculations.
- Best for engineering-standard truss bracing drawings.
Revit (AI Structural Analysis)
- Tests drag strut performance before construction.
- Perfect for BIM workflows.
Fusion 360 (AI-Assisted Generative Design)
- Creates load-responsive drag strut variations.
- Useful for complex structures with seismic loads.
For Quick 3D Modeling & Homeowners
SketchUp + Truss Plugin
- Easy for preliminary drag strut modeling.
- Great for non-engineers designing home renovations.
DALL·E or MidJourney (AI Image Generation)
- Can generate basic truss diagrams, but you’ll need CAD refinements.
For professionals: Revit & AutoCAD.
For fast 3D modeling: SketchUp.
For AI-generated diagrams: DALL·E.
Step-by-Step Installation Guide for Drag Struts
1. Select the Right Material
- Steel for heavy loads.
- Wood for residential structures.
- CFS for lightweight applications.
2. Attach to the Diaphragm
- For wood: Nail or bolt the drag strut to LVL beams.
- For steel: Weld or bolt the strut to steel decking or purlins.
3. Connect to Shear Walls
- Use Simpson Strong-Tie connectors for wood/steel.
- Use anchor bolts for concrete connections.
4. Secure with Fasteners
- Bolts, nails, screws, or welds—follow local code requirements.
5. Inspect & Test the Load Path
- Ensure no gaps or weak connections.
Best Seller Drag Strut Connectors on Amazon
🔹 Simpson Strong-Tie DSC5R-SDS3 Drag Strut Connector
Heavy-duty galvanized steel for high seismic loads.
Used for wood-to-steel and steel-to-steel connections.
🔹 Simpson Strong-Tie HDU4 Hold-Down Bracket
Strong anchoring for drag struts in wood and CFS structures.
Easy bolt installation.
FAQ on Drag Struts
Do all buildings need drag struts?
🔹 No, but they are critical in structures with large diaphragms and lateral loads.
What’s the difference between a drag strut and a tie beam?
🔹 A drag strut transfers lateral forces, while a tie beam connects columns for vertical load distribution.
Can I replace steel drag struts with wood?
🔹 Only in residential projects—commercial buildings need steel for strength.
Related
Framing & Bracing
- Drag Struts in Framing: Purpose, Function, and Installation
- T-Brace Framing: Installation Tips and Best Practices
- Metal T-Bracing in Roof Construction
- Truss Lateral Bracing: Types, Functions, and Installation
- Types of Truss Bracing: What You Need to Know for Your Project
Government & Industry References
- International Building Code (IBC) – Load path design requirements.
- ASCE 7 – Minimum wind and seismic load standards.
- AISC Steel Construction Manual – Best practices for steel drag struts.
- APA – Engineered Wood Association – Wood drag strut guidelines.
Final Thoughts
Get Your Drag Strut Design Right!
Drag struts are an essential but often overlooked part of a building’s lateral force-resisting system. Get them wrong, and you risk structural failure—but with the right materials, installation, and connections, they’ll keep your building strong and safe.
