Parametric Brick Facades: Old Material, New Control

Brick is honest. Heavy, modular, and everywhere. Parametric tools let you drive that same brick with rules. Spacing, rotation, relief depth, and bond change by input, not by guesswork. The result is a wall that ventilates where it should, shades where it must, and still lays up like brick.

Below is a complete field guide. Real logic. Buildable details. What goes wrong and how to fix it. If you need a quick refresher on the larger family of skins, see our short write up on smart exterior facades. For the modeling loop, skim the parametric process primer and come back here with targets in hand.

What “Parametric Brick” Actually Means

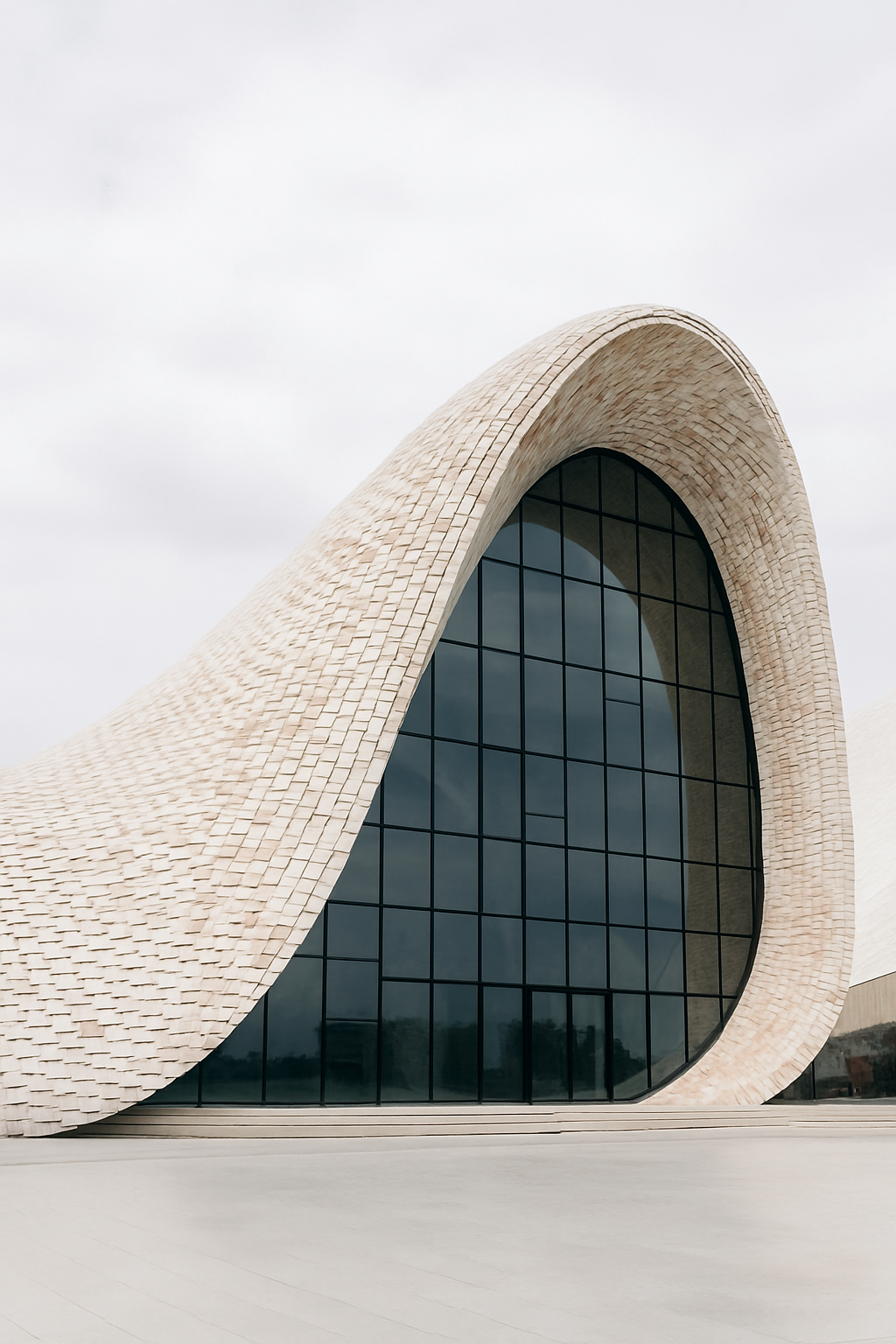

Modern parametric building with white bricks and subtle accent details on curved facade.

A parametric brick facade is not a style. It is a rule set. You define the brick unit, mortar joint, coursing, and how those elements may shift with sun, view, or airflow. The model computes the rest. Each course follows constraints. Each brick fits your kit. No hero parts. No mystery geometry.

Core inputs you will set on day one:

  • Module: nominal size, actual size, mortar thickness, and tolerances.
  • Bond logic: running, stack, Flemish, or custom bonds with allowed offsets.
  • Relief: out-of-plane offsets per brick or per course, with caps for stability.
  • Perforation: void ratio by zone for light, air, or pattern. Lock minimum webs.
  • Rotation: yaw or tilt ranges, with stops for ties and shelf angles.
  • Anchorage: clip and tie family spacing tied to relief and load.

Keep it boring. If a mason cannot read a course-by-course map and a parts schedule, the pattern will drift on site.

Why Brick Still Wins

Brick is weather-proof, fire-resistant, and familiar to every tradesperson on site. Parametric control adds performance without throwing out that muscle memory. You get texture, shade, and air with standard units and common hardware. You also get repairability. A chipped brick in a patterned field is still just a brick.

Performance Targets First, Shapes Second

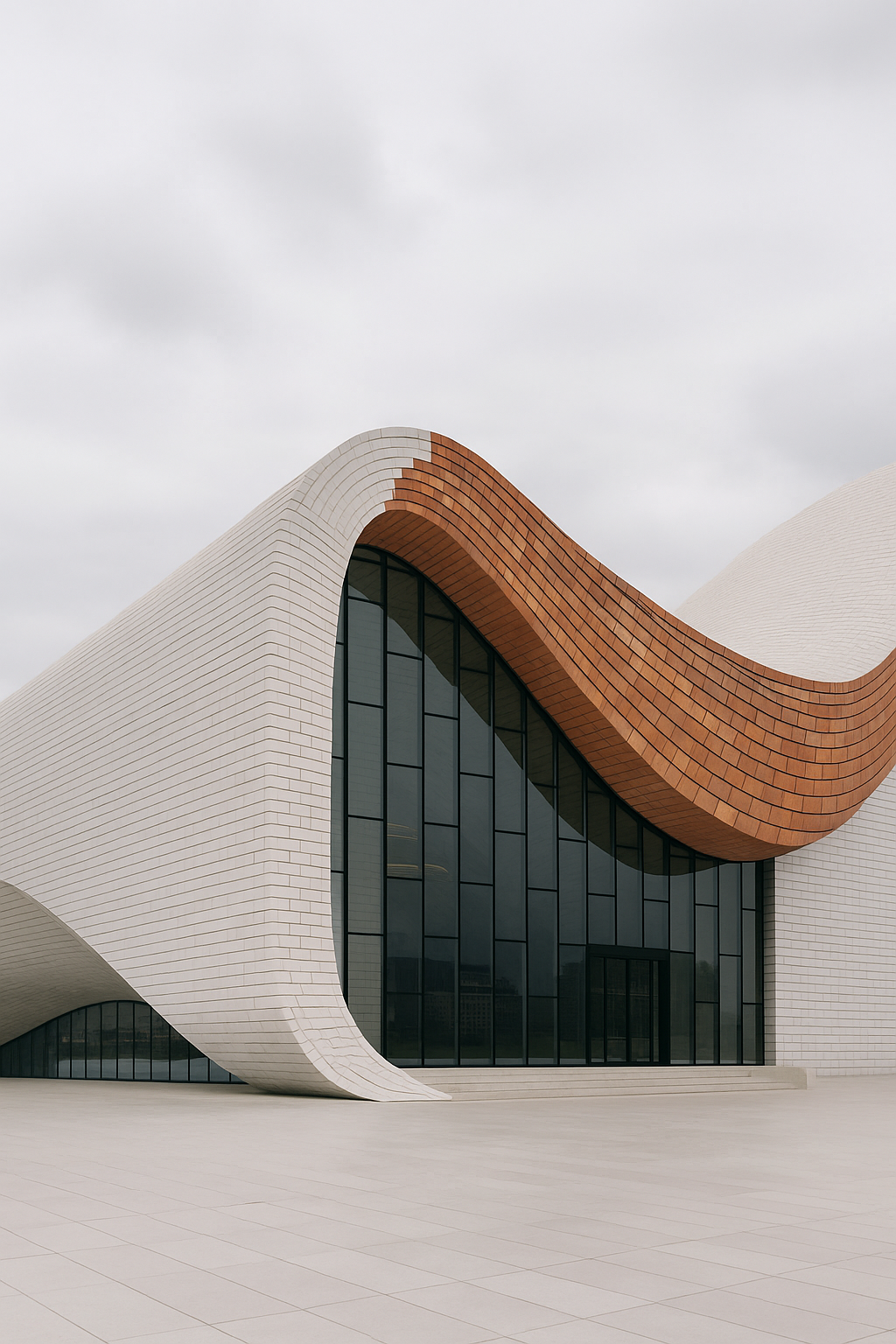

Smooth white brick facade with blended accent hues across flowing parametric forms.

Pretty comes last. Start with numbers:

  • Solar control: set hourly and seasonal caps for window incident radiation. Drive relief and perforation from those caps.
  • Ventilation: define target pressure drop across the screen. Use void ratio bands, not random holes.
  • View: map view corridors. Allow rotation where views matter. Tighten where privacy matters.
  • Maintenance: cap unique brick positions per elevation. Group relief into families. Crews install families faster.

When those numbers exist, the facade stops being art and becomes a system you can test.

Design Workflow That Survives Construction

  1. Set the kit. Choose the brick unit, bond, tie family, shelf angle spacing, and max cantilever per course. Lock these.
  2. Write the graph. In Rhino with Grasshopper or Revit with Dynamo, encode relief, perforation, and rotation as functions of sun, view, and air. Inputs are few. Outputs are many.
  3. Generate options. Run variants that keep the kit fixed. Only the parameters move.
  4. Test. Simulate solar gain, airflow, and structure. Kill good-looking failures fast. If you need a refresher on tools, see our note on software for parametric work.
  5. Rationalize. Snap relief to 3 to 5 offsets. Snap rotations to 3 angles. Snap perforation to 4 aperture sizes. Release nothing continuous.
  6. Document. Output elevation grids, brick schedules, and course-by-course maps with QR links. Add a repair legend.

Detailing That Makes or Breaks It

Parametric does not excuse sloppy detailing. Three details carry the whole job.

1. Relief and Tie Anchors

Every out-of-plane move needs a predictable tie pattern. Tie spacing should tighten as relief grows. Put a hard stop on offsets once tie loads exceed your clip family. Note deflection limits of the backup wall and coordinate with shelf angles.

2. Moisture and Weeps

Perforated brick fields must still drain. Keep air space consistent behind the pattern. Flash every interruption. Weep at regular intervals and never block weep paths with protruding units. Perforation does not equal ventilation if your cavity is dead.

3. Shelf Angles and Thermal Breaks

Every ledge is a thermal bridge unless you specify a break. Use thermal pads at shelf angles where budget allows. If not, compensate with insulation continuity and limited steel exposure. Tie your shelf spacing to story heights and relief families so the linework reads calm.

Three Real Parametric Brick Moves You Can Use

Move A: Breathing Screen

Alternate stretcher rotations create variable porosity in front of glazing. Void ratio increases with solar intensity and drops near views. Relief snaps to three offsets. Tie density rises in high-relief zones. Night ventilation is passive. Day glare is capped.

Move B: Deep Shade Shelf

Project headers every third course to form continuous shade ledges. Ledge depth varies with sun altitude by facade. Shelf angles align with ledge intervals. The pattern reads as texture, not noise. Inside, blinds stay up.

Move C: Acoustic Baffle Wall

To calm an atrium, rotate bricks to form micro baffles. Rotation follows a frequency map. Behind the screen, mineral wool absorbs. The field looks sculpted but is only three angles repeated.

For a broader context on skin families and part rationalization, skim our short explainer on facade material choices.

Costs, Counts, and What Blows Budgets

Parametric brick can price like normal brick if you control uniques. It explodes if you chase continuous variation.

  • Keep 90 percent standard. Limit custom corner or end units. If you must cut, cut by zone and repeat.
  • Reduce unique rotations. Three angles, not thirty. Three reliefs, not a gradient.
  • Schedule by family. Crews move faster when pallets arrive as A, B, C sets with simple diagrams.
  • Plan for access. Protruding fields need better staging. Coordinate swing stages early. Add temporary tie points into the backup wall model.

Brick + Robots: Are We There Yet?

Robotic arms can lay repetitive rotated units well. They struggle with live site tolerances, weather, and constant course corrections. The near-term win is hybrid: robots for prefabricated screens on racks, humans for corners, transitions, and field fixes. If you want automation, design for it. Flat racks sized for a truck. Family-based rotations. Clear pick points. Repeatable seams.

Why 3D-Printed Bricks Are Mostly Hype Right Now

Printing whole facades sounds great until you price fire ratings, consistency, and code review. Printed clay parts can be beautiful for small fields and art walls. For a full skin, logistics, testing, and replacement parts kill the schedule. If you want the printed look, get there with standard brick geometry, smart relief, and a short list of custom trims. Keep replacement simple. Keep insurance calm.

Common Failure Modes We See

  • Pretty with no drainage. Perforations everywhere, weeps nowhere. Water wins.
  • Relief with no structure. Bricks cantilever past tie limits. The field cracks at winter.
  • Too many uniques. Every brick is special. Lead times explode. Crews improvise. Pattern drifts.
  • Unbuildable grids. Dimensions ignore the module. Half bricks show up where no saw fits.
  • Dead cavities. You perforated the face but blocked the air space. No ventilation. No drying.

How To Fix Aimless Modeling

Endless sliders waste days. The cure is targets and locks.

  • Pick five inputs. Solar cap, void ratio per zone, relief family, rotation family, and unique family limit. Freeze the rest.
  • Tag cost inside the model. Every time you add a new family, the script adds dollars and days. Let the hit be visible.
  • Simulate in the loop. Solar, airflow, and deflection run on each change. Options that fail go gray.
  • Publish a one-page kit. Show families, angles, offsets, and tie spacing. If you cannot fit it on one page, your system is too complex.

Documentation That Crews Will Actually Use

Masons read drawings fast. Give them clarity.

  • Course maps. One sheet per elevation. Big numbers. No tiny arrows.
  • Legends. Family A, B, C with photos and dimensions. Include a coin for scale.
  • QRs on pallets. Scan for the matching sheet and zone. Fewer phone calls to the trailer.
  • Repair playbook. If a forklift kisses the wall, show which families to swap and how many ties to replace.

Material Choices That Work With Brick

Backup matters more than fancy patterns. Coordinate early.

  • CMU backup for weight and stability. Good for high-relief fields. Easy tie layout.
  • Steel studs + sheathing for lighter walls. Watch deflection. Add tie density.
  • Insulation continuity. Keep thermal lines straight through shelf angles with pads or creative offsets.

For a wider look at materials tradeoffs across skins, see our short overview on facade materials.

Field-Proven

Brick Patterns For Parametric Control

  • Checker relief: two-depth chessboard that reads calm from far away and cool up close. Easy to stage.
  • Porous stack: stack bond with periodic rotated units. Simple cuts. Clear tie rhythm.
  • Sawtooth header: alternating headers create shade ledges. Lines read strong. Water drains clean.

Case Notes

Courtyard Screen With Air

Goal was to cool a shaded court and keep privacy. We set a void ratio target of 18 to 28 percent, tied to wind and sight lines. Relief snapped to 0, 25, and 50 mm. Three tie densities matched the offsets. The field read rich. The plan read simple.

South Facade With Deep Shade

High glare. We drove 80 mm headers every third course on the top two floors and 40 mm below. Shelf angles aligned to those bands. The office kept blinds open on summer afternoons. Energy model came in under the cap.

How To

Start One In Your Office Next Week

  1. Build a tiny library. Three reliefs. Three rotations. One perforation set. One tie family table.
  2. Wrap a script around it. Inputs: sun cap, view mask, wind rose, unique limit. Outputs: drawings, counts, pallets.
  3. Pilot on a small wall. A lobby or courtyard. Prove install speed and repair steps.
  4. Document the win. Photos, counts, change orders avoided. Then scale to a full elevation.

Tips

  • Mock up a corner. Relief looks different in corners. Approve with the GC before you order ties.
  • Mind tolerance stacks. Small rotations magnify over height. Reset every few courses with a control band.
  • Protect weeps. Rotated units invite mortar drool. Keep weep paths clean during layup.
  • Light it right. Relief dies in flat light. Aim grazing lights where you want the night effect.

Avoid!

  • Designing a gradient you cannot palletize. Families or bust.
  • Ignoring tie edge distance. Rotations can starve ties of embed. Check every angle against hardware.
  • Letting BIM default joints. Set mortar thickness explicitly and keep it constant where patterns rely on rhythm.
  • Skipping the repair kit. You will need it. Plan for it.

How To Apply This On Your Next Project

  • Pick the kit first. Brick, joint, ties, shelf angles, thermal breaks.
  • Set five inputs. Sun, air, view, relief family, unique limit.
  • Snap everything. Offsets, rotations, apertures. No smooth gradients.
  • Export what crews need. Maps, counts, pallets, QR repair notes.

If you need a broader context with live examples, browse a few built projects in our examples roundup and bring the same discipline back to brick.

FIELD PICK

AAD Algorithms-Aided Design by Arturo Tedeschi
Real case studies and clean workflows. Use it to structure your relief and rotation families. Read a chapter, build a graph, test it the same day.

FAQ

How do I keep costs close to standard brick?
Limit unique rotations and reliefs to short families. Keep 90 percent standard units. Ship pallets by family. Align shelf angles to family bands.

Do I need custom bricks?
Usually no. Standard units plus smart cuts handle most moves. Save customs for corners or tight radii and repeat them.

How do I prove performance?
Run solar and airflow simulations in the loop. Publish before and after charts. Tie results to your five inputs so the GC sees cause and effect.

Will robots lay this faster?
Only if you design for racks and repeats. Hybrid installs are winning now. Prefab the repetitive fields. Hand-lay the tricky bits.

What if the pattern drifts on site?
It drifts when families are unclear. Use big legends, color-coded maps, and QR pallet links. Add control bands every few courses to reset.

Can I retrofit an existing facade?
Yes with care. Check backup capacity and tie reach. Often a light secondary frame supports a ventilated brick screen in front of the old wall.
