Architectural Case Studies
How to Steal Good Decisions Without Copying the Building
Most “architecture case study” content online is just a gallery with captions. Pretty. Useless.
A real case study is not inspiration. It is extraction. You are trying to steal decisions from a real building, then reuse the logic without copying the shape.
This hub gives you a repeatable system, plus practical examples across housing, hotels, hospitals, offices, campuses, and adaptive reuse. Short. Sharp. Studio friendly. Practice friendly.
If you are still building your baseline on typologies, start with Building Types: Commercial, Residential, Industrial, and More. It makes this whole hub easier to use.
What an architectural case study really is
An architectural case study is a structured breakdown of a built project so you can answer one question.
What made this building work, and what would break if you changed the constraints?
If your “case study” does not include constraints, it is not a case study. It is fan art.
The minimum things you must capture
- Context: climate, noise, neighbors, slope, access, views, codes, culture
- Program: what the building must do, not what it looks like
- Plan logic: circulation, adjacencies, service paths, dead zones
- Section logic: daylight, ventilation, structure depth, vertical stacking
- Envelope: shading, glazing ratio, thermal strategy, maintenance reality
- Systems: structure, MEP, acoustics, fire and egress strategy
- Operations: cleaning, staffing, deliveries, waste, wear and tear
- Outcome: what users love, what users complain about, what failed
The mistake that wastes the most time
People study the image instead of the problem.
They copy a façade pattern when the real win was the section. They copy a courtyard look when the real win was microclimate control. They copy “glass everywhere” and then act surprised when the building turns into a greenhouse with privacy issues.
Rule: do not start with photos. Start with the design problem the building was solving. Use photos last, to confirm the solution was actually built.
How to use this hub without spiraling
- Pick your building type. Do not start with “cool buildings.” Start with your typology.
- Run the 20-minute method below on one project.
- Do the friction map. This is the part that makes your work sound professional.
- Stop when you have 5 transferable rules. That is the deliverable.
The 20-minute case study method
This is the fastest way to get a usable precedent without wasting a weekend.
- Write the constraint sentence. “This building had to ___ in a site that ___ while users needed ___.”
- Pull one plan and one section. If you cannot find both, you do not understand it yet.
- Mark flows. Public, private, staff, service, emergency. Different colors in your notes.
- Mark the climate moves. Shade, cross ventilation, thermal mass, buffer zones, courtyards.
- Extract 5 transferable rules. Rules you could apply to a different project tomorrow.
What most people never do: the Friction Map
This is the move that separates a student mood-board from an actual precedent study.
You map the pain points. Not the pretty bits. The places where the building loses the fight in real life.
- noise bleed
- glare at the wrong hour
- confusing entry sequence
- service routes crossing public zones
- queues and choke points
- awkward furniture zones that never get used
- maintenance nightmares that age the building fast
When you map friction, you stop being a collector of forms and start thinking like an architect. You also stop copying mistakes that look good in photos.
A second “pro” layer: the Constraint Swap Test
Here is the part that most people never write down, which is why their case studies feel shallow.
Pick one constraint and swap it. Then predict what breaks.
- Swap climate: temperate to hot-humid. What fails first, the glazing ratio or the courtyard?
- Swap users: single-family to multi-unit. Where does privacy collapse?
- Swap operations: boutique to high-traffic. What materials look dead in 18 months?
- Swap code: add accessible routes and egress upgrades. Where do you lose area?
This is the “shocking” part for most students: many famous buildings are one constraint away from falling apart. Your job is to know which constraint they depend on.
Where to find architectural case studies that are worth your time
You want sources that give you drawings and constraints, not just marketing. Pick the best available per project.
- Architect / studio project pages (often the cleanest intent and drawings)
- Architecture publishers (good photography plus summaries, sometimes plans and sections)
- Academic and institutional case studies (best for performance, climate, health outcomes)
- Books and monographs (slow but deep, especially for housing and modern classics)
If a source never shows sections, you will end up guessing the building. Guessing is how bad precedent spreads.
For a deeper breakdown of parametric form-making, see our full case study on the Heydar Aliyev Center.
The Case Study Houses: what to learn, and what not to copy
The Case Study House Program is one of the most referenced and most misunderstood precedent pools. It is not just “midcentury vibes.” It was a postwar experiment in prototyping modern domestic life, pushed through Arts & Architecture.
Case Study House 22 (Stahl House): the real lesson is structural clarity
Most people talk about the view and the glass. The deeper lesson is how a simple, disciplined structural system creates big spatial payoff. Minimal move. Maximum experience.
- Steal this: structural logic that stays legible in the finished space
- Avoid this: copying “glass everywhere” without controlling heat, glare, privacy, and cleaning reality
- Ask: what shading and night-privacy strategy would be required if you rebuilt this today?
The Eames House (Case Study House 8): constraints can create the whole aesthetic
Students treat it like a style reference. That is shallow. The real lesson is that a tight grid and modular discipline can produce a coherent whole that still allows human mess.
- Steal this: repeatable parts and a grid that supports change
- Avoid this: turning modular logic into a sterile box with no warmth
- Ask: where is the flexibility, and where is it intentionally fixed?
Neutra’s Bailey House (Case Study House 20): the plan is the product
Neutra is often reduced to thin roofs and glass. What matters more is plan discipline and the staging of indoor and outdoor rooms. It is choreography, not styling.
- Steal this: outdoor space treated as real program, not leftover lawn
- Avoid this: openness without acoustic control and storage reality
- Ask: what daily routine was the plan built around?
Architectural case study templates by building type
Different building types fail in different ways. Your case study questions should change by typology or you miss the real story.
1) Housing case study architecture
- What is the privacy gradient from public to private?
- Where does clutter go, and what is the storage strategy?
- How does daylight behave in the morning and late afternoon, not just noon?
- Where is cross ventilation actually possible, room by room?
- What is the thermal strategy, and what is the maintenance burden?
If your project is residential and you want a clearer typology breakdown, use Residential Buildings: All Types Explained with Real Examples.
2) Hotel case study architecture (3 star vs 5 star)
Hotels look similar in photos. They are not similar in operations. Your case study must track back-of-house flow and guest friction.
- Where do linens, waste, and deliveries move, and do they cross guest zones?
- How is acoustic separation achieved between corridors and rooms?
- What is the check-in sequence, and where do queues form?
- What is the “premium” move in a 5-star hotel, and what does it cost to operate?
- What is the cleaning and durability strategy for high-touch surfaces?
3) Hospital and healing architecture case studies
Hospitals punish bad design fast. They are buildings where circulation, infection control, daylight, stress, and staffing collide.
- How are clean and dirty paths separated?
- Where do staff save steps, and where do they waste steps?
- How does daylight reach patient zones without glare?
- How do gardens, views, and quiet areas reduce stress in a measurable way?
- What is the wayfinding system when users are anxious and rushed?
4) University and campus case studies
- Where are the social gravity points, and why do students actually gather there?
- How does the building handle peak loads between classes?
- How does it behave after hours, and what areas become security problems?
- How does signage compensate for complex layouts?
5) Office design case studies
- What is the noise strategy, not the furniture brand?
- How are focus zones protected from collaboration zones?
- What is the daylight strategy for deep floor plates?
- How are meetings handled without turning corridors into waiting rooms?
6) Adaptive reuse architecture case studies
Adaptive reuse is where you learn humility. You do not get to redraw the constraints. You inherit them.
- What existing structural grid dictated the new plan?
- What did the design keep, and what did it cut, and why?
- How were accessibility and life safety upgraded without killing character?
- What was the environmental payoff compared to new build?
Mini case studies you can reference without sounding like a brochure
Khoo Teck Puat Hospital, Singapore: biophilic design that is not just “plants”
This is a strong precedent for healing architecture because landscape is treated as infrastructure. Water, biodiversity, shading, and patient experience are part of the project logic, not decoration.
What to steal is the systems thinking. The “green” story is not a facade move. It is site and operations.

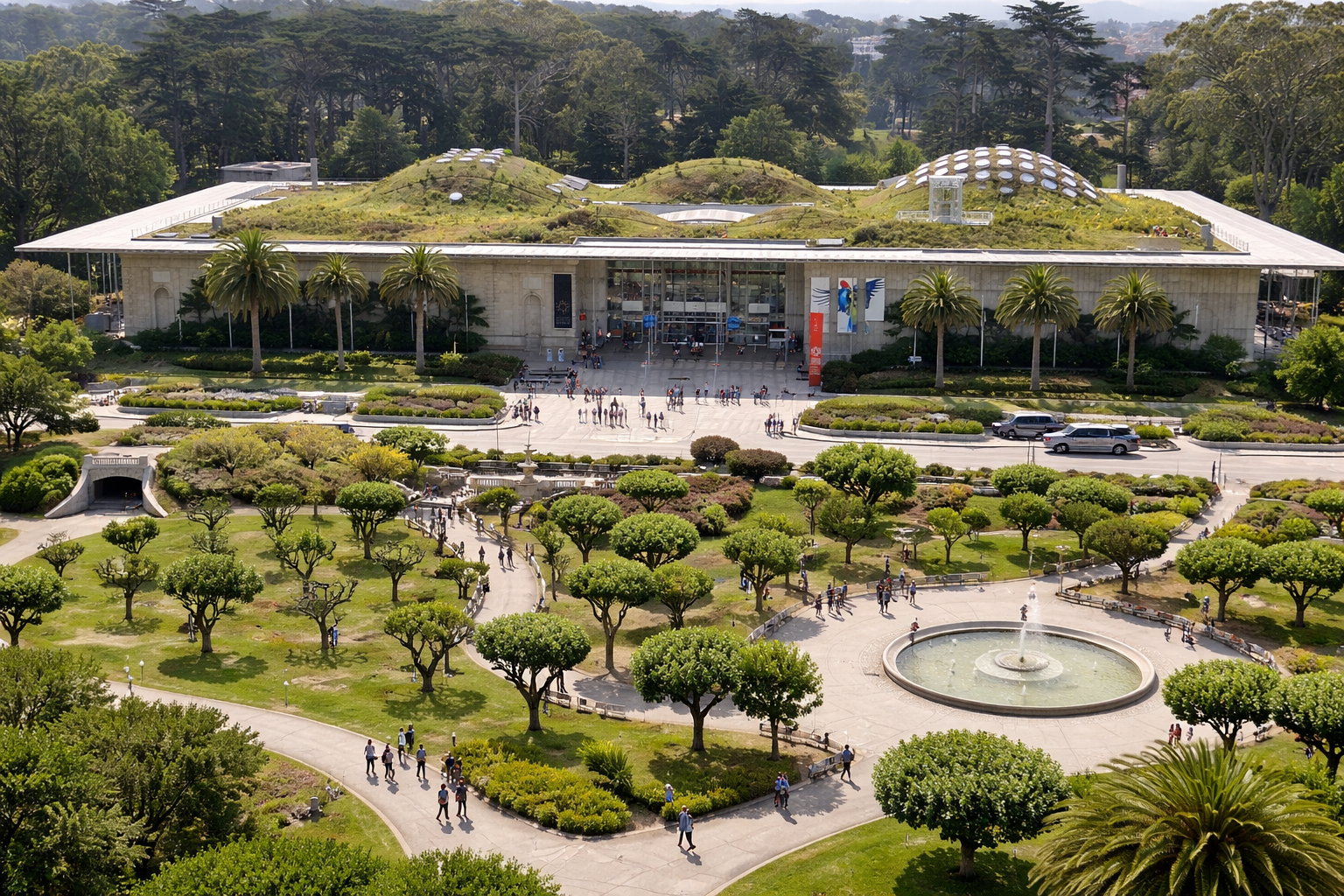

California Academy of Sciences, San Francisco: sustainability as a full building concept
If you want a sustainable architecture case study that is not a buzzword poster, this is a useful reference. Study it for systems integration and for how public buildings explain complexity to visitors without dumbing it down.
For a real precedent in high-performance architecture, see our sustainable building case study of the Bullitt Center.
How to write a case study that sounds like a real person did it
Avoid worship language. Avoid vague adjectives. Use sentences that prove you actually tested the building in your head.
- “This worked until 4 pm, then glare took over.”
- “The lobby looks big, but the queue path steals half the floor.”
- “The plan is elegant, but the service door placement forces awkward crossings.”
- “Great photos, terrible acoustics.”
That is how real buildings are judged. Not by vibes.
Architecture case study checklist A to Z
Use this for a fast precedent study that looks serious. One letter. One question. No fluff.
- A Arrival: how do you find the entry under stress?
- B Back of house: where do deliveries, waste, and staff move?
- C Circulation: where do paths cross, pinch, or confuse?
- D Daylight: what happens morning, noon, late afternoon?
- E Egress: what is the exit logic in an emergency?
- F Form: what is the form doing besides looking cool?
- G Glare: where does it hit, and how is it controlled?
- H Hierarchy: what is the primary space, what supports it?
- I Interfaces: where do inside and outside actually connect?
- J Joints: what details carry the concept, and what details fail it?
- K Keys: what are the 5 transferable rules you can reuse?
- L Loads: what is the structural logic and its limits?
- M Maintenance: what will look bad in 2 years?
- N Noise: how is acoustic comfort protected?
- O Operations: how does the building run every day?
- P Program: what does it do, not what it looks like?
- Q Queues: where do people wait, and is it intentional?
- R Resilience: heat, floods, outages. what is the plan?
- S Section: what vertical move makes the building work?
- T Thresholds: how do transitions shift mood and privacy?
- U Users: who is ignored by the design?
- V Ventilation: where is it natural, where is it mechanical?
- W Wayfinding: can a first-time visitor navigate it fast?
- X X factors: what one decision unlocks the whole project?
- Y Year 10: what will age well, and what will not?
- Z Zero waste: where are the biggest material wins and losses?
Interior design case studies (yes, they count)
Interior case studies are often more useful than whole-building case studies because you can apply them tomorrow. They teach sequence, proportion, lighting behavior, storage reality, and how humans actually move.
If your rooms feel visually “off,” start here:
And if you want the missing piece most people never define clearly, study rhythm. The full breakdown is here:
If you need a grounded way to compare interior precedent between residential and commercial contexts, this guide is a good reality check: Commercial vs Residential Interior Design: Lessons I Learned on Both Sides.
FAQ
What is an architectural precedent study?
A precedent study is a focused case study used to extract strategies you can reuse. It is not a history report. It is a decision tool.
What should an architecture student include in a case study?
One plan, one section, constraints, circulation paths, climate moves, and 5 transferable rules. If it is only photos, it is not helping your design.
Are “Case Study Houses” still relevant today?
Yes, but the relevance is in prototyping and structural clarity, not in copying glass walls. Today you must add energy, glare, privacy, and durability discipline that older precedents often ignore.
What is the fastest way to do a case study?
Write the constraint sentence, pull one plan and one section, map flows, map climate moves, extract 5 rules. Stop when you have rules. Do not keep scrolling for more pictures.
What makes a case study feel professional?
You name friction points and operational realities. Glare, noise, queues, maintenance, staff routes. That is what separates a fan page from a usable precedent.
