How to Frame a Wall: A Straight, Real Guide That Works on Site
If you can read a tape, snap a line, and keep a bubble centered, you can frame a straight wall. The trick is layout, square plates, and studs that do not fight you.
What a Wall Frame Does
Illustration by ArchitectureCourses.org. Wall framing parts and the basic load path through the frame.
A wall frame is the skeleton. Plates run horizontal. Studs run vertical. Blocking ties things together. Drywall, sheathing, insulation, wiring, trim, cabinets, and doors all depend on that skeleton being true.

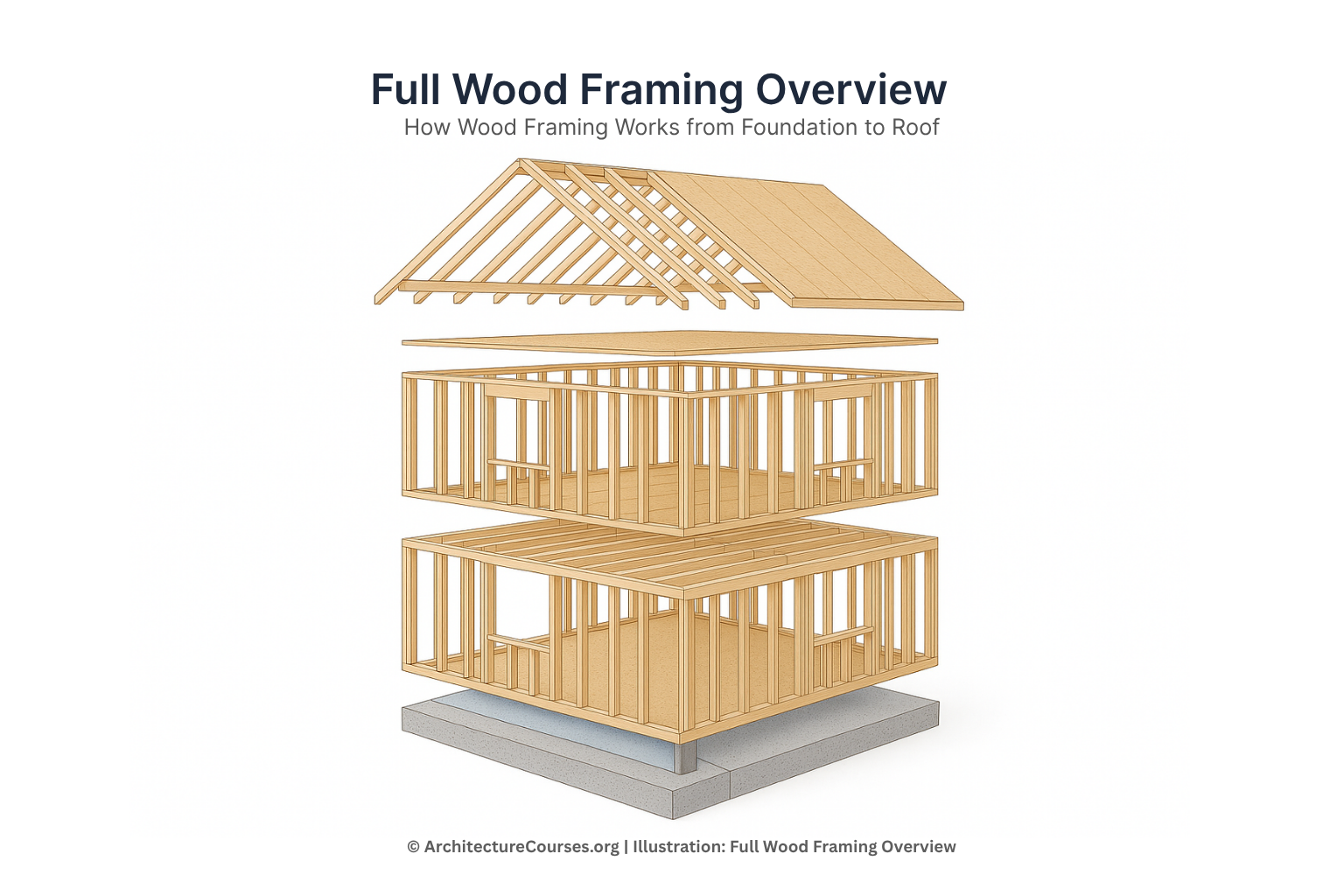

Think load path. Roof into wall. Wall into floor. Floor into foundation. Foundation into soil. When the frame is straight and the load path stays continuous, everything after it goes easier.
If you want the wider context first, see our framing overview. For the structural side of it, read how loads move through a house.
Core Parts That Keep Showing Up
Illustration by ArchitectureCourses.org. Top plates, bottom plates, studs, blocking, and opening framing.
- Top plate. The horizontal member at the top. Often doubled on bearing walls so corners and intersecting walls tie together.
- Bottom plate. Also called the sole plate. Anchors to subfloor or slab. Use pressure-treated stock when it touches concrete.
- Studs. The vertical members. Usually 2x4 or 2x6.
- Blocking. Short horizontal pieces between studs for fire blocking, cabinet backing, railings, shower bars, and seam support.
- Headers and trimmers. These carry loads around doors and windows so the wall does not lose its load path at the opening.
Use straight, dry lumber. If a stud fights you on the floor, it will fight you harder after drywall.
Stud Spacing That Makes Sense
Illustration by ArchitectureCourses.org. Stud spacing at 16 inches and 24 inches on center.
Stud spacing controls more than lumber count. It affects stiffness, drywall behavior, cabinet backing, insulation fit, and how forgiving the wall is later.
| Spacing | Where It Works Best | Why People Use It | Where It Starts Backfiring |
|---|---|---|---|
| 16 inches on center | most residential walls | easier drywall layout, stiffer wall, more fastening points | costs a little more in lumber |
| 24 inches on center | selected non-bearing or engineered walls | saves lumber, reduces thermal bridging | more flex, fussier finishes, less forgiving under cabinets or tile |
16 inches on center is still the default for most residential work. Drywall sheets fit cleanly. Sheathing lands where it should. Walls feel stiffer. Finish work goes easier.
24 inches on center can work in the right conditions, but it needs the right finish, the right sheathing, and more discipline. It is not something to push on tall bearing walls just because it saves a few studs.
If you want the full spacing breakdown, read Stud Spacing: How Far Apart Should Wall Studs Be?. If you are pairing layout with finish choices, skim drywall basics that affect framing.
Do not space by eye. Mark the plates. Most callbacks start at layout, not at paint.
The Short Course: Frame One Straight Wall
Tools That Matter
Tape, pencil, chalk line, speed square, 4-foot level, string line, circular saw, nail gun or hammer, drill, clamps, pry bar, and PPE. Add a framing square and a laser if you have them.
Materials That Do Not Argue
Studs, plates, blocking stock, pressure-treated bottom plate where needed, slab anchors if you are on concrete, adhesive where it makes sense, shims, and fire caulk where code wants it.
Step 1. Snap the Line
Measure from a real reference and snap a bright line where the wall goes. If the flooring edge is crooked, ignore it. Trust the plan, not the bad edge.
Step 2. Cut and Mark the Plates
Cut top and bottom plates to the same length. Stack them together. Mark the stud layout once so both tell the same story. Mark openings clearly right on the plates, including kings, jacks, and header location.
If opening layout is the part you keep second-guessing, use how we mark and place kings and jacks.
Step 3. Sort the Studs by Crown
Sight each stud. Mark the crown. Install the crowns the same way. Bad studs become blocking, cripples, or short pieces. Do not bury them in the wall and hope for the best.
Step 4. Build the Frame on the Floor
Lay the plates parallel. Drop the studs onto the marks. Nail the frame on the deck. Measure the rough openings before you lock them in. Build the headers on the floor. Add a temporary brace if the wall wants to rack while you lift it.
Step 5. Stand the Wall
Lift smoothly. Walk it up. Tap the bottom plate onto the line. Plumb one end and brace it. Then plumb the other end. Do not anchor it permanently until the wall is where it belongs.
Step 6. Anchor and Tie It In
On wood subfloor, glue and nail or screw the bottom plate. On concrete, use the anchor type your slab and local inspector expect. Overlap and stagger top plates so joints do not stack in the same weak spot.
Step 7. Add Blocking and Backing
Install fire blocking where code requires it. Add backing for vanities, rails, cabinets, shower doors, barn doors, and anything heavy you already know is coming.
Step 8. Check Plumb and Flat Before Covering
Run a long level or straightedge on the face. Plane high studs. Shim low ones. Fix it before drywall, tile, or trim makes the wall more expensive.
Openings That Stay Quiet
Door Openings
Layout the rough width from the actual unit, not from memory. Set full-height king studs. Set jacks to the header height. Build the header for the real span and load. Keep the hinge side plumb. That part alone saves a lot of finish problems later.
Window Openings
Follow the manufacturer rough opening. Keep the sill level. Keep the kings and jacks tight. Add cripples where they belong so the layout rhythm does not fall apart above and below the opening.
For more on headers and opening loads, read lintel logic above openings.
Never notch jacks to fit a header that was cut wrong. Fix the header, not the load path.
Slabs, Basements, and Walls That Move
Wall on a Slab
Use a pressure-treated bottom plate. Use sill gasket where moisture is part of the story. Keep edge distances right when you anchor to concrete so the slab does not chip out.
Basement Wall Against Concrete
Do not trap moisture. Sometimes that means leaving a gap. Sometimes it means rigid foam first, then framing. Sometimes it means mineral wool where fiberglass would age badly. Basement walls punish lazy moisture thinking.
If water is already part of the room, start with how to handle basement leaks.
Floating Walls
In frost or expansive-soil areas, some walls need slotted top connections or a framed gap so slab movement does not shove the wall into the structure above. That is a code detail, not a guess.
Fire, Code, and Insulation Basics
- Fire blocking. Stops stud bays from acting like chimneys. Put it where code requires it.
- Rated walls. One-hour and separation walls need the right gypsum, right joints, right penetrations, and right framing support.
- Insulation fit. Batts work best when they fit cleanly and stay uncrushed.
- Vapor control. Climate decides this more than habit does.
If the drywall side of the assembly matters for the wall you are building, see how drywall ties into framing.
Wood vs Steel
2x4 works for most interior partitions. 2x6 gives more stiffness and more room for insulation and services. 2x2 is for light furring or very limited partitions, not where the wall has real work to do.
SPF is common and easy to work with. Douglas fir tends to be stronger and often straighter. Pressure-treated stock belongs where wood meets concrete or persistent moisture.
Steel studs give you straightness, cleaner moisture behavior, and good fire performance, but the gauge and bracing matter. You screw, not nail. You plan differently around openings and services. If you are comparing systems more broadly, read timber vs steel vs concrete.
Layout Checks That Save Hours
- Make sure top and bottom plates tell the same story.
- Confirm rough openings against the actual schedule, not memory.
- Make sure seams will land on wood, not in the air.
- Leave real routes for plumbing, ducts, and wiring.
- String the face before sheathing. Your eye catches trouble early if you let it.
Common Mistakes That Keep Repeating
Twisted studs. Sight them. Mark crowns. Install them consistently.
Headers cut wrong. Measure between jacks. Dry-fit before nails fly. For spans that are pushing it, use lintel/header sizing basics.
Layout drifting around openings. Keep the rhythm through the wall so drywall and sheathing still land right.
Bottom plate off the line. If the wall goes off the line early, you will be chasing it all the way through trim.
No backing where loads hang. Vanities, rails, TVs, cabinets, and bars all punish people who thought they would remember later.
Inspection Red Flags
- stud spacing off spec
- missing fire blocking
- over-cut or badly notched studs
- undersized headers
- poor anchoring to slab or subfloor
If you need the code-side refresher, see design codes used on site.
Costs That Match Real Jobs
Costs swing hard by region, wall type, labor market, finish level, and whether the wall is new work or a retrofit cut into an existing house.
A simple interior partition is one thing. A garage bearing wall with hold-downs, rated drywall, 2x6 stock, more backing, and slab anchors is another. That is why broad wall-framing guides age badly when they pretend one neat number covers everything.
The safer move is to price the real assembly: framing only or framing plus drywall, wall on wood floor or wall on slab, simple partition or bearing wall, clean new layout or messy renovation condition.
Save money with straighter lumber, cleaner staging, repeated wall lengths, and smart layout. Do not save money with bowed studs, weak fasteners, skipped backing, or bad anchors. That is fake savings.
For the larger budget picture, see the full house-building guide.
Checklist You Can Print
- Snap the line and verify square.
- Cut plates equal and mark layout clearly.
- Mark openings with kings and jacks right on the plates.
- Sight studs and keep crowns consistent.
- Measure every rough opening before the frame gets locked in.
- Stand the wall, plumb both ends, and brace it.
- Anchor the bottom plate and tie the top plate.
- Add fire blocking and backing before cover.
- String the face, then plane or shim before drywall hides the truth.
Beginner Questions Answered Fast
What spacing should I use? Sixteen inches on center unless the wall, finish, and code clearly support something else.
How do I tell if a wall is bearing? Look at what it lines up with above and below. If you are not sure, check the plans or call an engineer. For the plain-language version, read how to spot bearing walls.
Can I frame a wall myself? Yes, for simple partitions. Tall walls, long walls, and structural changes are a different conversation.
Do I need a permit? Usually if structure changes, layout changes, or area gets added.
Short Answers for Fast Jobs
Stud length. Standard precut studs are built around the plate stack and finish plan. Check the actual wall height before you order a full lift.
Header height. Use the door or window unit spec first, then account for floor finish and shimming room.
Anchor spacing on slab. This varies by wall type, anchor type, and inspector preference. Ask before you guess.
Mistakes That Cost Real Money
Skipping layout marks. You will not remember it all once the floor gets busy.
Letting the plate ride a hump. The wall leans and the error grows upward.
Trapping moisture. Wood against damp concrete without treatment or gasket ages badly.
Under-sizing headers. Sag shows up through casing and drywall fast.
Read This Next
If you are still learning the wall parts, go to our wall framing primer. If your main problem is openings, use how we mark and place kings and jacks. If you are stepping back to the bigger build sequence, use the full house-building guide.
FAQ
What is wall framing? Building the skeleton of the wall so loads move cleanly and finishes have solid backing.
What are the main parts? Plates, studs, headers, trimmers, cripples, and blocking.
Can I frame a wall myself? Yes, for simple work, as long as you lay it out carefully and brace it well.
Platform or balloon framing? Platform is the normal modern method because it is simpler and easier to fire block.
Framing on concrete? Use treated plates and the right anchors, and respect edge distances.
How long does a simple wall take? A small two-person crew can frame a straightforward partition in a few hours if layout is done and materials are staged.
