Truss design starts with load, span, and support.
The shape matters, but the real job is load path, bracing, connections, and whether the truss can actually be built and installed cleanly. Get that right and the roof stays quiet. Get it wrong and the problems show up in sagging, cracked finishes, weak joints, field fixes, and wasted money.
Start there: what trusses do, which types matter most, how steel and timber differ, what controls a good design, where mistakes start, and what to check before a truss leaves the drawing and hits the job site.
Start with the basics: truss type, span, load, support, bracing, and connection. Those six things decide most of the job.
If the page helps with anything, it should help with this: choosing the right truss for the right use, before the mistakes get built in.
What Truss Design Is Solving
A truss is a structural frame that uses straight members and triangulated geometry to move loads to the supports efficiently.
That sounds simple. The design work is not. A truss has to carry the load, stay stable, fit the architecture, allow the building to be assembled cleanly, and hold up under real conditions instead of ideal ones.
In roof work, that means handling span, pitch, ceiling shape, uplift, bracing, and the way the truss lands on the structure below. In bridge and larger-span work, it means the same basic logic, just with bigger consequences and more demanding connections.
Truss design is one of those subjects where the basics matter more than the hype. Clear load paths, proper member sizing, realistic spans, good joints, and solid bracing still decide whether the system works.
| What the Truss Has to Do | Why It Matters |
|---|---|
| Carry the load | The whole system starts here |
| Span efficiently | Too much material or too little depth both cause trouble |
| Stay stable | Bracing and restraint are part of the design, not cleanup |
| Fit the building | A nice truss that fights the architecture is still the wrong truss |
| Be buildable | Transport, lifting, installation, and sequencing all matter |
Main Truss Types That Matter

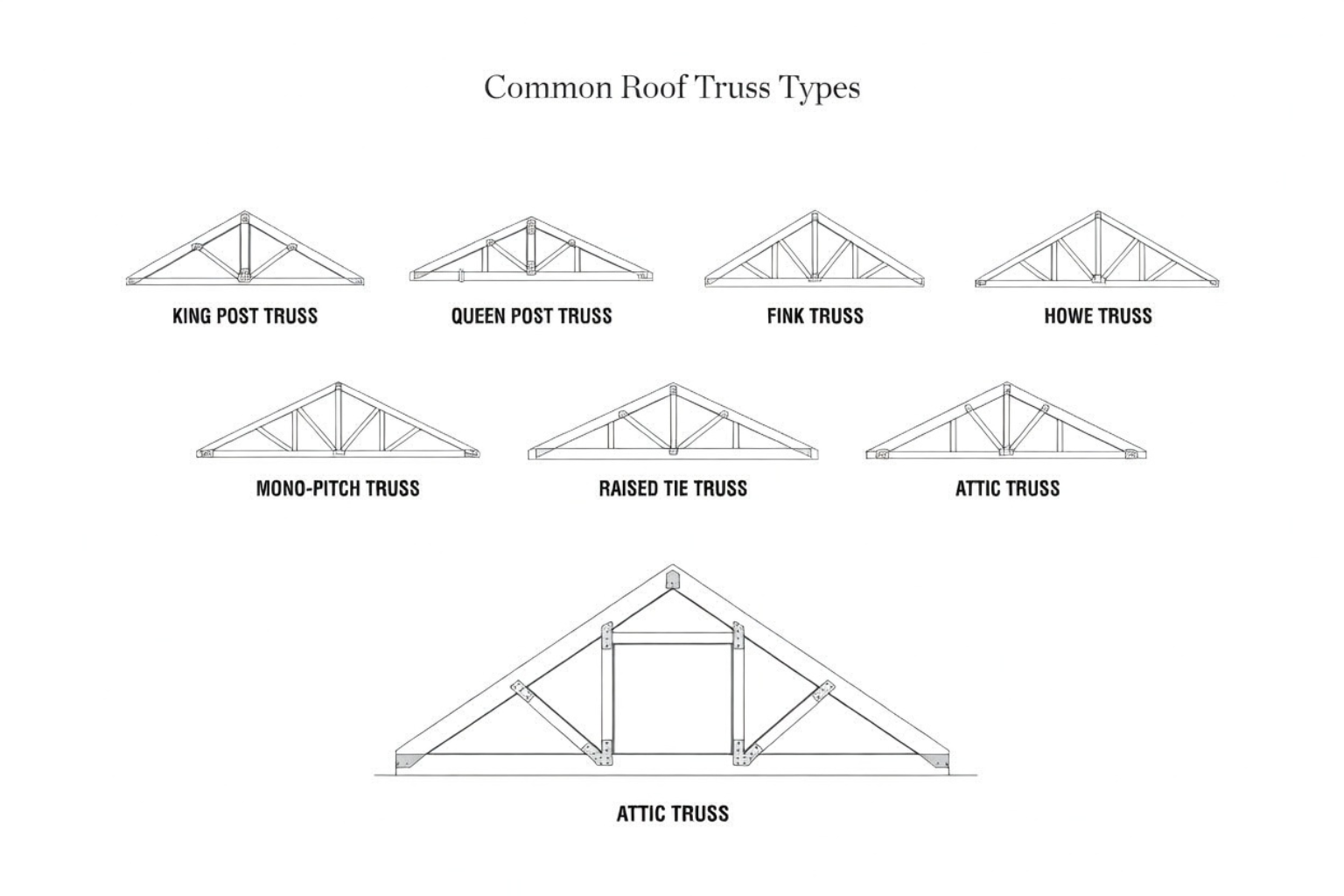

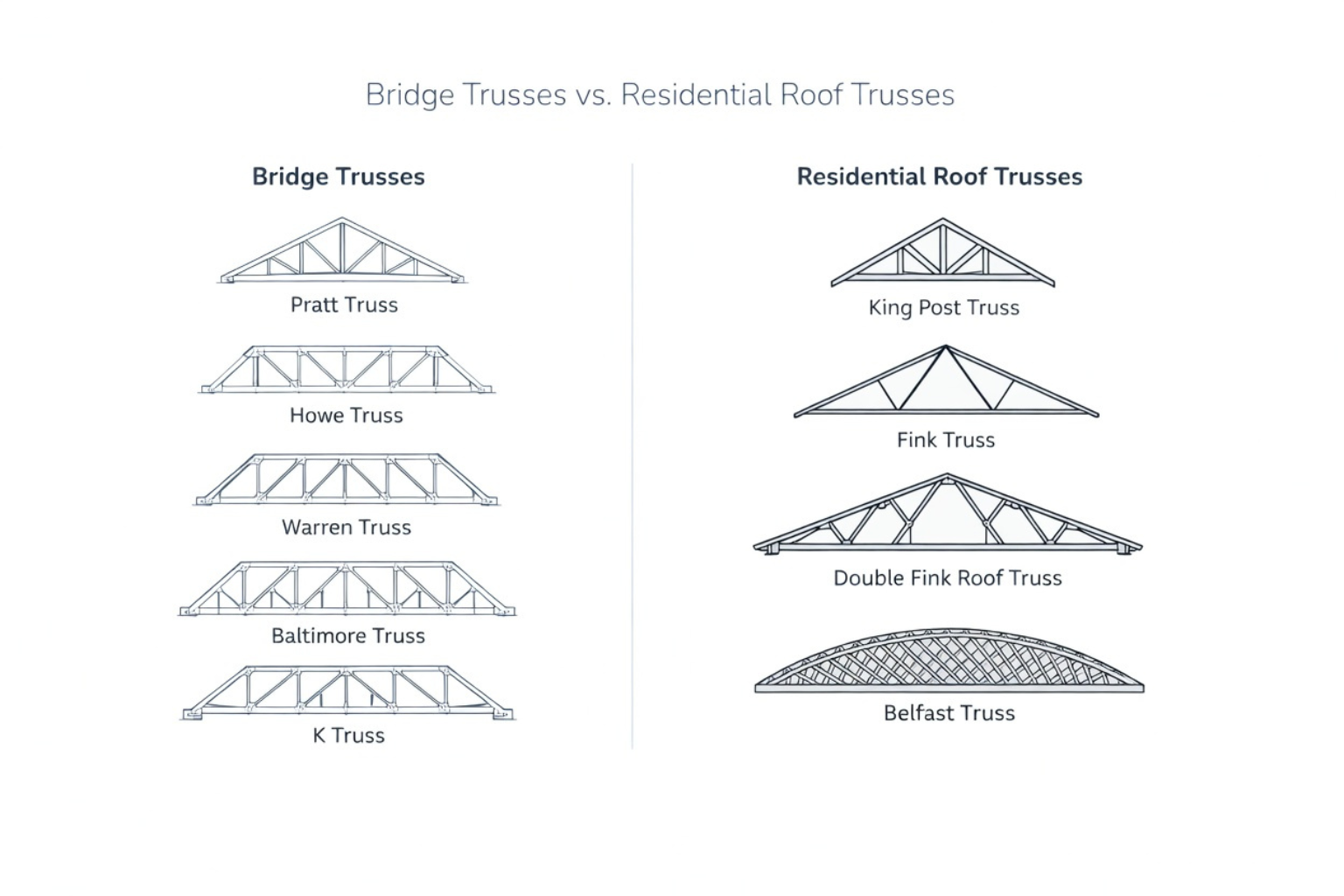

There are many truss types, but not all of them matter equally on most projects. These are the ones people keep coming back to because they solve common structural problems.
| Truss Type | Best Fit | Why It Gets Used | Where It Starts Going Wrong |
|---|---|---|---|
| King post | Short spans, simple roofs, small structures | Clear geometry, low cost, easy to understand | Too limited once spans get bigger |
| Queen post | Moderate spans | More reach without getting too complicated | Can become awkward if pushed too far |
| Fink | Ordinary residential roofs | Efficient and economical | Not ideal when you need open attic or ceiling volume |
| Scissor | Vaulted ceilings and lifted interior volume | Creates space without giving up structural order | Insulation and service runs get tighter |
| Pratt | Bridges and longer-span work | Efficient force pattern and proven performance | Can be overused where a simpler system would do |
| Howe | Heavier loads and some long-span work | Strong under heavier conditions | Not always the cleanest answer for lighter structures |
| Warren | Evenly distributed loads and efficient bridge work | Simple repeating geometry and good material efficiency | Less forgiving when point loads dominate the system |
For roof work, most people are really deciding among common house trusses, attic trusses, scissor trusses, or a custom timber or steel solution. For bridge work, Pratt, Howe, and Warren still matter because they explain different force paths clearly.
Related. If you want the broader family page first, start with Types of Trusses. If the project is mainly timber, go to Timber Trusses Explained: Types, Costs, and Design Tips.
Steel vs Timber
Illustration by ArchitectureCourses.org. Side-by-side comparison of flat steel, tubular steel, timber, and scissor truss systems.
Material choice changes more than appearance. It affects span, member size, connection type, fabrication, corrosion or moisture risk, and how the finished space feels.
| Question | Steel Trusses | Timber Trusses |
|---|---|---|
| Best fit | Long spans, industrial buildings, large commercial roofs | Homes, custom spaces, exposed framing, smaller-scale work |
| Main strength | High strength-to-weight ratio and long-span efficiency | Warm appearance, renewable material, easier visual integration |
| Main risk | Corrosion, thermal movement, bad connection detailing | Moisture, movement, joinery quality, exposed-weather risk |
| Typical look | Lean, industrial, precise | Warm, architectural, often more visible as part of the room |
| Fabrication logic | Shop precision matters a lot | Material quality and connection method matter as much as member size |
Steel is often the better answer when span and load get serious. Timber is often the better answer when the truss is part of the room and not just part of the roof. The mistake is acting as if one material wins every time.
Where steel makes more sense
Larger roofs, warehouses, industrial buildings, bigger open commercial spaces, and jobs where long span matters more than warmth or exposed wood character.
Where timber makes more sense
Houses, cabins, timber-led rooms, exposed feature spaces, and projects where the structure is supposed to help make the room.
Timber keeps showing up because it does two jobs at once: structural support and visual finish.
Scissor trusses, timber frame trusses, and other wood-based systems make sense when ceiling volume and atmosphere matter, not just raw span.
If the project is clearly moving into larger steel territory, use Steel Trusses. If the issue is exposed timber, vaulted ceilings, or residential expression, stay on the timber side longer before jumping to steel.
What Controls a Good Truss Design
Good truss design is not one clever shape. It is a set of decisions that work together.
Span
Start here. The span decides whether the truss is simple or specialized, shallow or deep, ordinary or expensive.
Load
Dead load, live load, snow, wind, ceiling weight, roof build-up, added equipment, and future changes all matter. A lot of bad trusses fail first in the planning stage because the load was treated too casually.
Geometry
Roof pitch, ceiling shape, clearance, and support location all affect the truss geometry. A nice-looking truss that does not fit the building is not a good truss.
Connection design
Trusses do not fail only in the members. They fail at joints too. Plates, bolts, welds, hangers, and bearing details all matter.
Bracing
This is where a lot of otherwise decent work goes bad. Temporary bracing, permanent restraint, and lateral stability are not side issues. They are the job.
Fabrication and installation
A truss that works in analysis can still become a bad truss if the fabrication is sloppy, the layout is off, the crane sequence is poor, or the crew starts cutting members in the field.
| Design Input | Why It Matters | What People Get Wrong |
|---|---|---|
| Span | Controls member forces, depth, and truss type | Pushing a cheap truss too far |
| Load | Changes the whole structural demand | Ignoring snow, uplift, or future rooftop additions |
| Geometry | Determines efficiency and fit | Choosing shape for looks only |
| Connections | Transfer force between members | Treating joints like details instead of structural decisions |
| Bracing | Keeps the system stable during and after installation | Leaving it for later |
| Buildability | Decides whether the truss works in the field | Designing a clean drawing that becomes a bad installation |

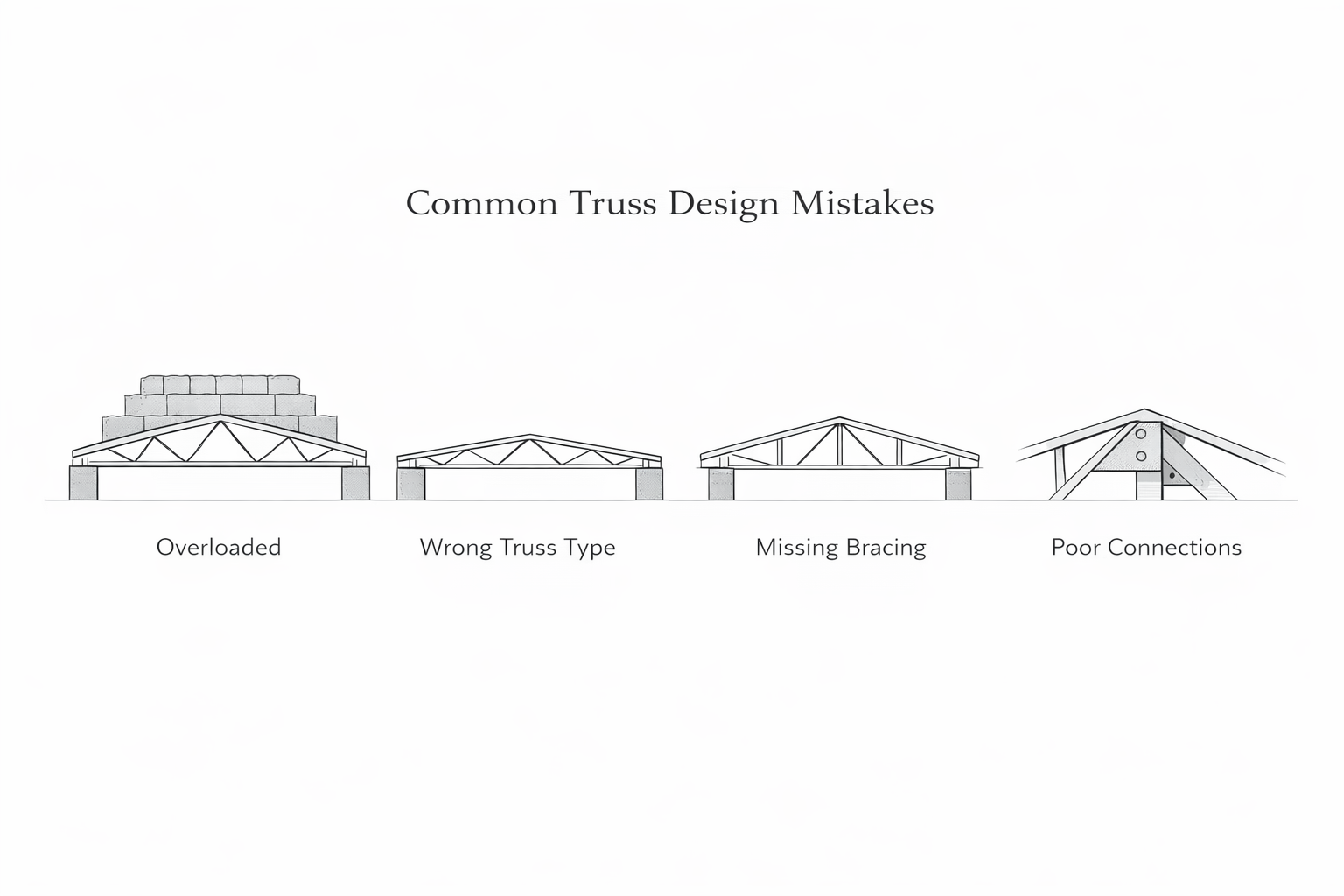

Common Truss Design Mistakes
Most truss failures do not begin with some exotic structural mystery. They begin with one ordinary mistake that nobody stopped early enough.
Overloading the truss
Solar, HVAC, heavier roofing, extra suspended loads, or later changes get added after the original design logic was set.
Using the wrong truss type
A standard roof truss cannot solve every roof. Attic space, vaulting, special loads, complex rooflines, and unusual supports change the answer.
Weak or missing bracing
This is where many good-looking truss jobs become dangerous. Bracing is not optional cleanup. It is part of the system.
Bad joints
Misaligned plates, bad welds, weak fasteners, or sloppy field repairs can undo a lot of good design.
Ignoring installation reality
If the truss cannot be transported, lifted, aligned, and set without trouble, the design is not finished.
| Mistake | What It Causes | Better Move |
|---|---|---|
| Underestimating load | Sag, movement, overstress, failure risk | Check full roof and future loading early |
| Wrong truss type | Bad fit, inefficient structure, awkward roof behavior | Match the truss to the actual job, not the cheapest shape |
| Skipping bracing logic | Rotation, buckling, instability during install | Treat restraint and bracing as part of the design |
| Weak connections | Joint failure and long-term movement | Design and inspect the joints, not just the members |
| Field cutting or improvising | Unexpected weakness and load-path problems | Get design review before modifying anything |
Also useful. If the next step is detail and connection logic, go to Roof Truss Details: Types, Connections, and Installation Tips.
Prefab or Site-Built?
On many projects, prefabricated trusses win because they are faster, more repeatable, and easier to quality-control before they hit the site.
That does not mean site-built work is wrong. It means site-built work makes more sense when the job is small, remote, unusually custom, or tied to a particular field condition that factory repetition does not solve well.
The mistake is pretending one method is always better. Prefab wins a lot of ordinary work. Site-built still has a place where the building is too specific or too awkward for a standard package.

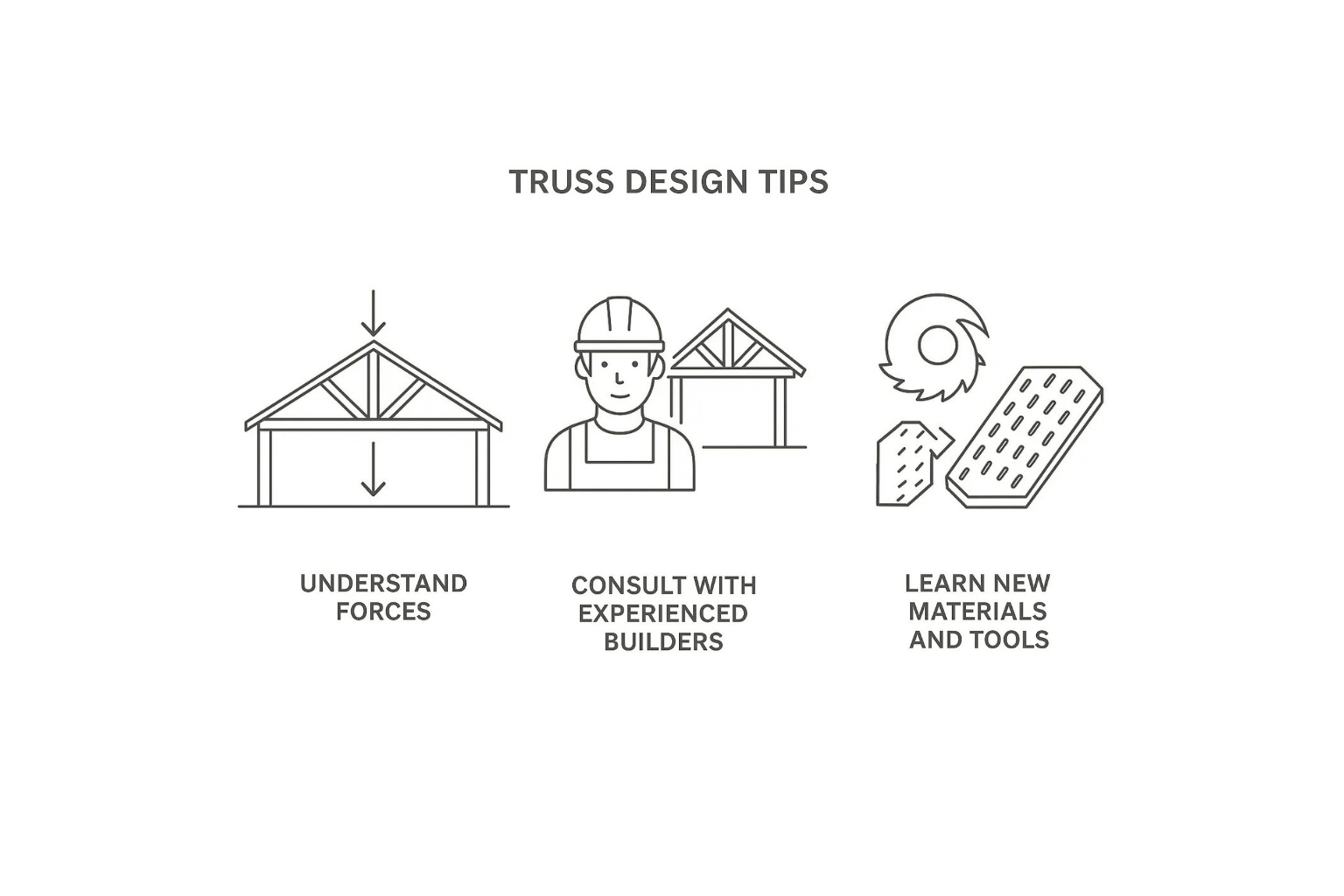

What Beginners Usually Miss First
- Load moves before style does. Learn how the forces are moving first.
- Connections matter as much as members. A nice truss with bad joints is still a bad truss.
- Builders see things drawings miss. Buildability is part of design.
- Bracing is not an afterthought. This is where a lot of trouble begins.
- Span claims mean nothing without the full system. Material, support, load, and geometry all change the answer.
Most people new to truss work focus on the shape first. That is the easy part. The hard part is making the shape behave under real load with real joints and a real install sequence.
What Modern Tools Change

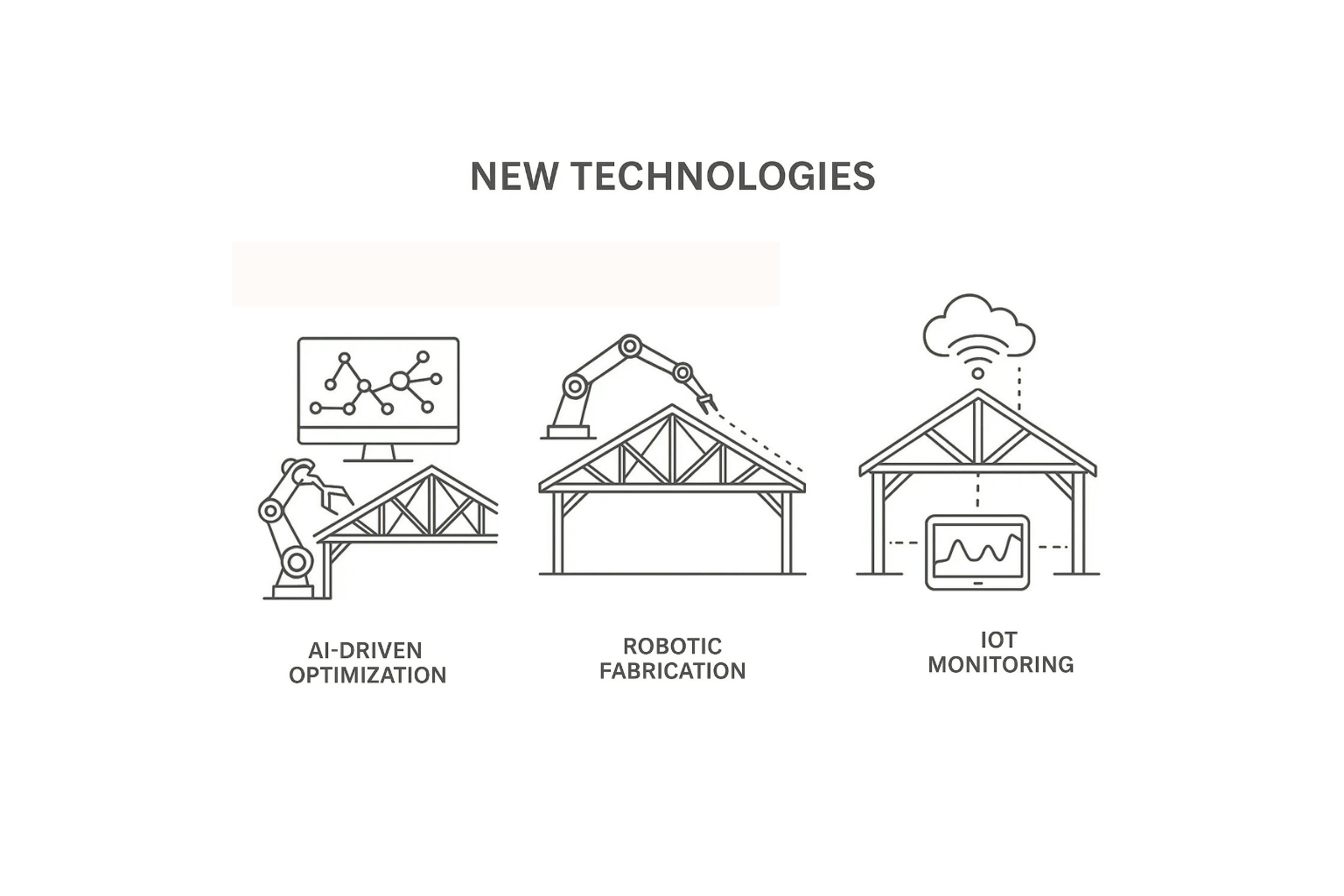

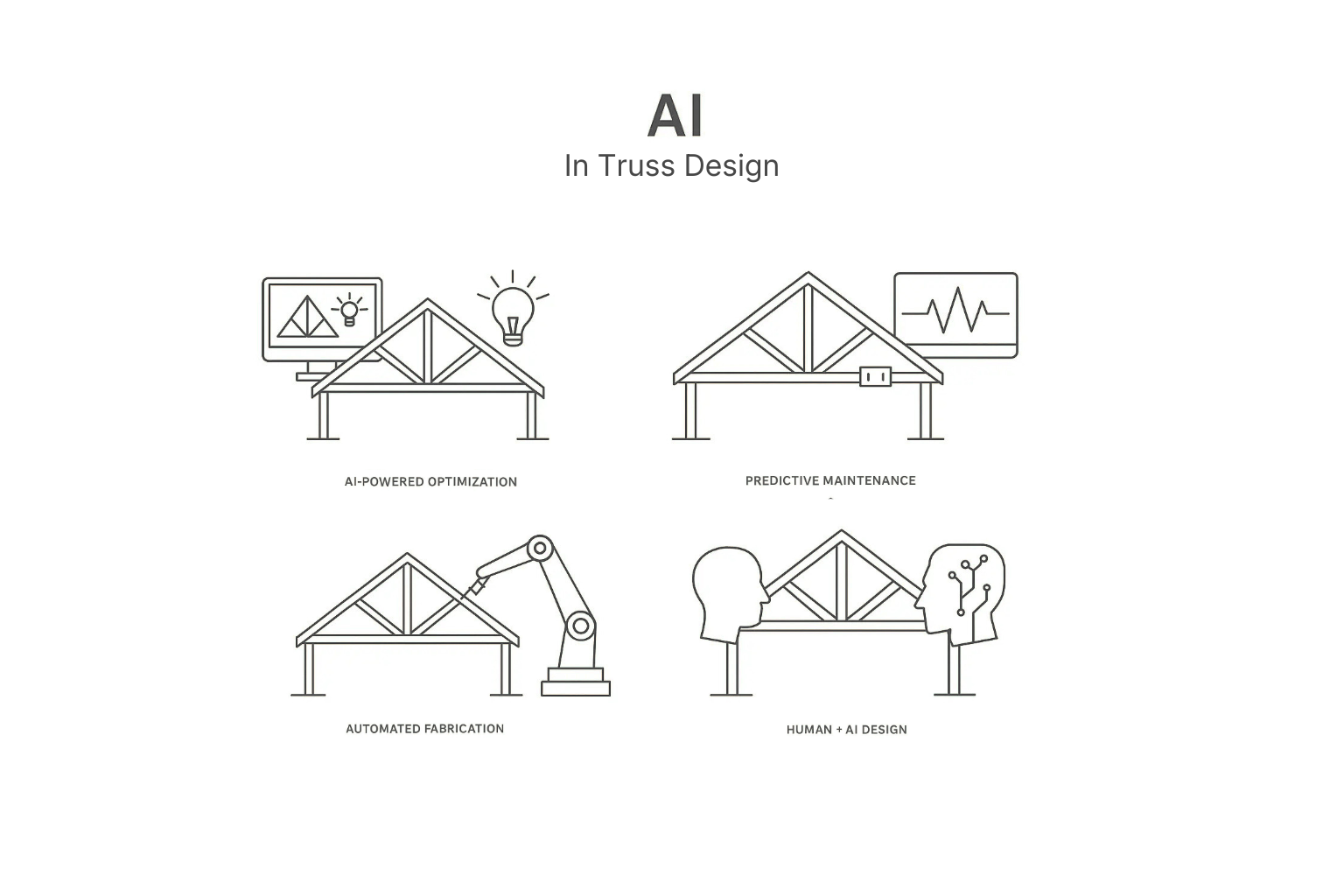

Better software, better scanning, off-site fabrication, and tighter coordination all help. They can reduce waste, catch clashes earlier, and improve fabrication quality.
That matters, especially on bigger or more repetitive projects. But it does not change the fundamentals. A bad load path does not become good because the software model looked clean.
The cleaner way to say it is this: digital tools help with analysis, coordination, and fabrication. They do not rescue weak assumptions about span, bracing, or connections.
FAQ
What is the most common roof truss?
In ordinary residential work, common pitched roof trusses such as fink and gable-related forms show up constantly because they are efficient and economical.
What is the best material for a truss?
There is no single best material. Steel usually wins bigger spans and tougher loading. Timber often wins residential work, exposed interior use, and projects where warmth and appearance matter.
How do trusses save material?
Trusses move load through triangulated geometry, which usually lets them span efficiently with less bulk than a simpler beam-and-post approach covering the same distance.
Can trusses be customized?
Yes. That is one of their strengths. But the shape still has to follow the load and the support conditions.
Are prefab trusses better than site-built ones?
Often yes for ordinary repeated work. They are faster and easier to quality-control. Site-built trusses still make sense on some custom or unusual jobs.
Can trusses support solar or heavier rooftop systems?
Yes, but only if those loads are accounted for from the start or properly reviewed before being added later.
What usually causes truss failure?
Wrong loads, weak bracing, bad connections, sloppy modification, and poor coordination between design and field work.
Do trusses work with current energy and code requirements?
Yes, but the roof assembly, insulation strategy, restraint, and connections all need to be coordinated properly. The truss does not sit outside the rest of the building system.
Read This Next
If you want the broader truss-family page, start with Types of Trusses. If the job is timber-led, use Timber Trusses Explained: Types, Costs, and Design Tips. If you need more detail on residential roof conditions, go to Roof Trusses: Types, Design, and Installation Guide. And if you need the connection side next, use Roof Truss Details: Types, Connections, and Installation Tips.
