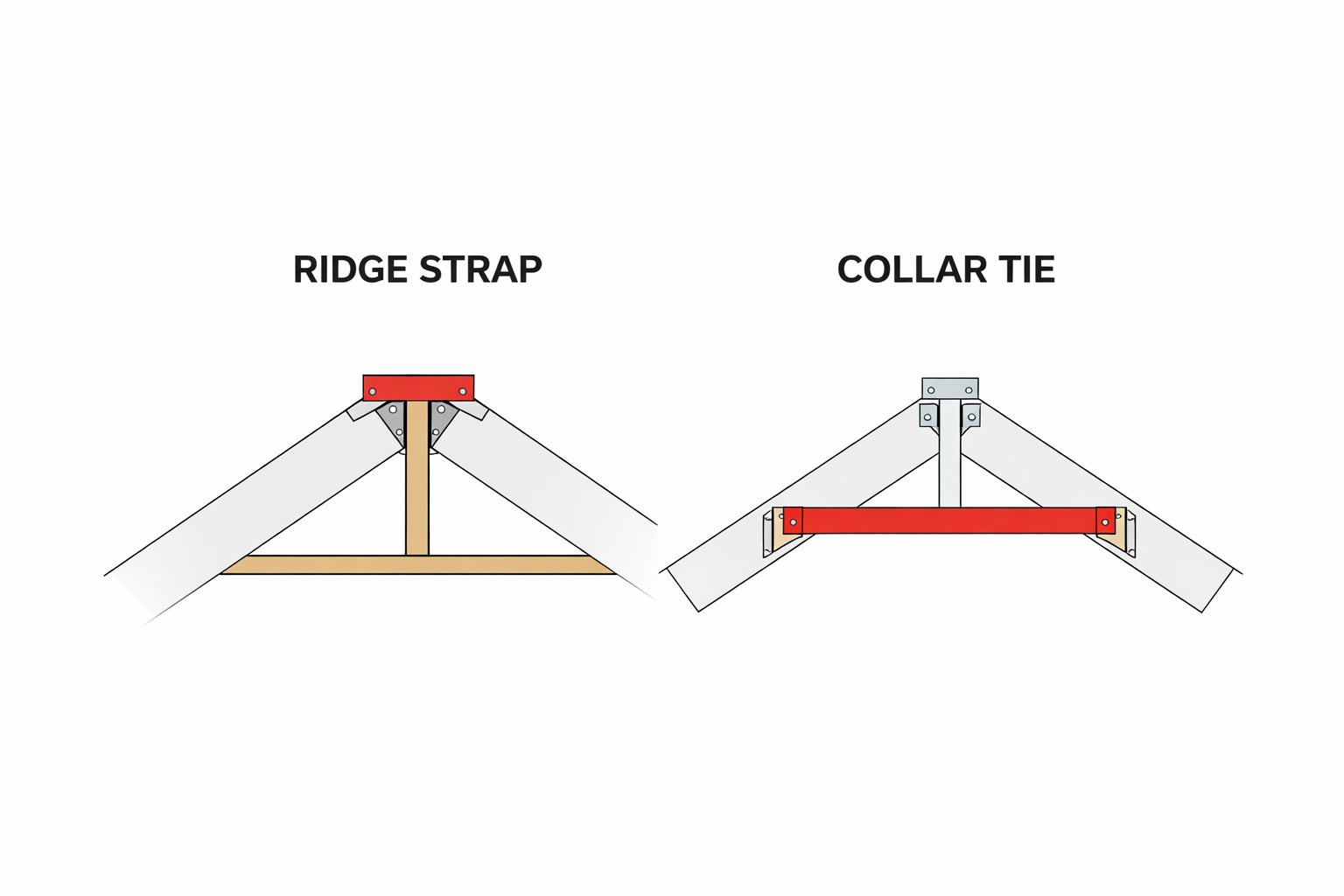

Image by ArchitectureCourses.org. Collar ties and ridge straps both work near the roof peak, but they are not interchangeable with lower rafter ties or a structural ridge solution.
Ridge straps and collar ties are not substitutes for lower rafter ties, and they do not make the ridge structural.
They work high in the roof and deal with a different problem, usually separation near the ridge under uplift. Lower rafter ties and ceiling joists work lower and help resist wall spread. A ridge beam does another job entirely. Trouble starts when all four get treated like they are doing the same thing.
Start With the Real Difference
| Member | Main job | Where it usually sits |
|---|---|---|
| Ridge strap | Helps resist uplift-related separation near the ridge | At or across the ridge connection |
| Collar tie | Helps resist uplift-related separation near the ridge | Upper third of opposing rafters |
| Rafter tie | Resists outward thrust that pushes walls apart | Lower third of opposing rafters |
| Structural ridge beam | Carries vertical roof load | At the ridge, with real support below |
Ridge straps and collar ties work in the upper roof zone. Rafter ties work lower. A ridge beam belongs to a different structural category.
What Ridge Straps Do

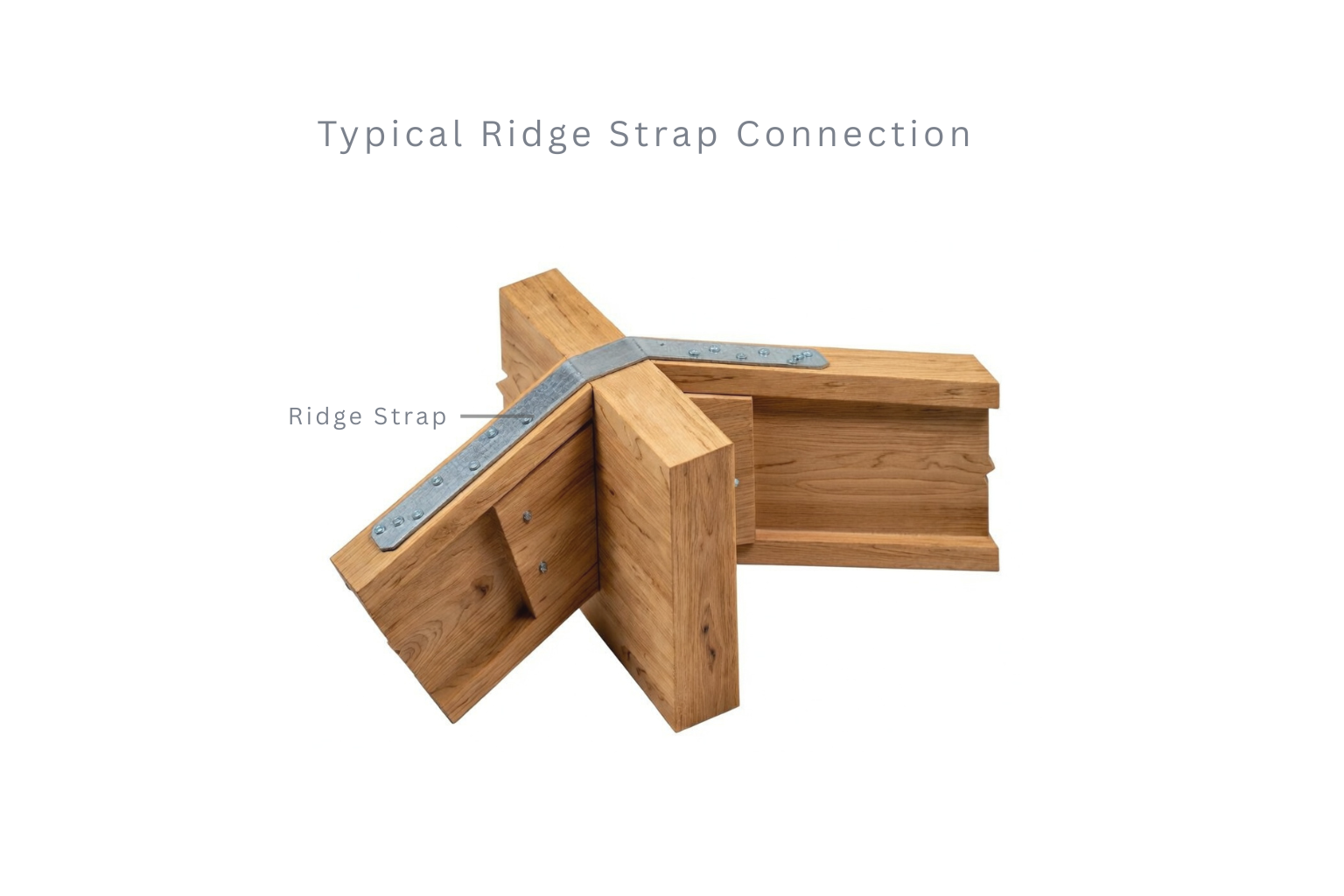

Image by ArchitectureCourses.org. A ridge strap is a metal connector detail at the roof peak used to help keep opposing rafters tied together against uplift-related separation.
A ridge strap is a metal tension connector installed at the peak to help tie opposing rafters together across the ridge connection.
Its job is not to make the ridge structural. Its job is to help keep the rafter pair from separating at the top under uplift or similar forces that try to open the roof at the ridge.
- It works as a tension connection.
- It is usually hidden once the roof is complete.
- It is a connector solution, not a beam solution.
- It only works if the fasteners, strap type, and connection detail match the intended load.
If the roof depends on a strap detail, the connector has to be rated, detailed properly, and acceptable under the code path or engineering used for that roof.
What Collar Ties Do
A collar tie is a wood tension member installed between opposing rafters, usually in the upper third of the roof height.
Its usual job is similar to the ridge-strap job above: helping resist separation near the ridge.
- They are usually wood members, not metal connectors.
- They sit higher than rafter ties.
- They are about the upper roof connection, not lower wall thrust.
- Their location matters. Move them too low and they stop being collar ties. Move them too high or detail them badly and they may not do the intended job well.
A horizontal member near the rafters is not automatically a collar tie. Member type and placement both matter.
What Neither One Does
Ridge straps and collar ties do not automatically solve outward wall spread from roof gravity loads. That is the job normally handled by rafter ties, ceiling joists acting as rafter ties, or a structural ridge beam with a real support path below.
The better question is not whether one replaces the other. The better question is which roof force needs to be controlled.
- If the concern is uplift or ridge separation, collar ties or ridge straps may be part of the answer.
- If the concern is rafters pushing the walls outward, the roof needs rafter ties or a structural ridge solution.
- If the concern is an open ceiling with no lower ties, neither collar ties nor ridge straps should be treated as a substitute for a full structural solution.
So Which One Do You Use?
Image by ArchitectureCourses.org. Roof framing decisions near the ridge should start with the force you are trying to control, not just the part name.
| Roof condition | What usually makes more sense | What to watch |
|---|---|---|
| Simple stick-framed gable roof with standard framing logic | Collar ties may be the cleaner traditional solution where permitted | Do not confuse them with lower rafter ties |
| Need a connector-based ridge detail with less visible wood high in the roof | Ridge straps may make more sense where code path or design allows | Hardware and fastening have to be correct |
| Vaulted or open ceiling with no lower ties | Often a structural ridge beam or engineered solution | Do not assume collar ties or ridge straps solve the thrust problem |
| High-wind conditions | Upper-roof tension detailing becomes more important | Connector rating and uplift path matter, not just member presence |
Roof shape, load path, ceiling design, local code, and the adopted framing method decide whether a wood collar tie, a ridge strap, a lower rafter tie, or a structural ridge is doing the real work.
Where the Confusion Usually Starts
- Calling collar ties rafter ties.
- Assuming any high horizontal member stops the walls from spreading.
- Assuming a ridge strap makes the ridge structural.
- Treating uplift control and gravity-thrust control as the same thing.
- Trying to create a clean vaulted ceiling without changing the structural strategy.
The roof only responds to the force each part is meant to resist.
Placement and Fastening Matter
Even when the correct member type has been chosen, bad placement ruins the point.
- Collar ties need to be in the correct upper roof zone for the intended job.
- Ridge straps need the right strap type, nail pattern, and connection detail.
- Field improvisation is weak here. A wrong fastener or casual placement can turn a legitimate detail into something that only looks structural.
If the roof depends on an upper-roof tension detail, the exact connection is doing more work than it appears to be doing.
Code and Design Reality
Code language varies by edition, jurisdiction, and amendment, so the exact wording is not the same everywhere. The broad framing logic is more stable: upper-roof ties or straps address the ridge area, while lower ties or structural ridge design address outward thrust and full roof support.
- Do not assume one accepted detail in one jurisdiction is universal everywhere.
- Do not use ridge straps or collar ties as an excuse to skip the bigger load-path question.
If the roof falls outside ordinary prescriptive framing, the design usually needs to become engineered.
FAQ
Can I use ridge straps instead of collar ties?
Sometimes, depending on the code path, design method, and local jurisdiction. But that is only part of the roof-framing question. It does not mean ridge straps replace rafter ties or a structural ridge where those are still needed.
Are collar ties stronger than ridge straps?
That is not the best way to frame the decision. They are different types of tension details. The better question is which one is appropriate for the force, placement, and code path involved.
Do collar ties stop walls from spreading?
Not in the same way lower rafter ties do.
Do ridge straps make the ridge load-bearing?
No. A ridge strap is a connector detail. It does not turn a ridge board into a structural ridge beam.
Can I omit both if the roof looks fine on paper?
Not safely as a rule. The roof still needs a complete strategy for uplift, thrust, support, and load path. Appearance is not the same as structure.
